1717740000 - 35 mm² PE Terminal, 400V, ATEX Certified, 50.5 mm Deep (Pack of 20)

Description:

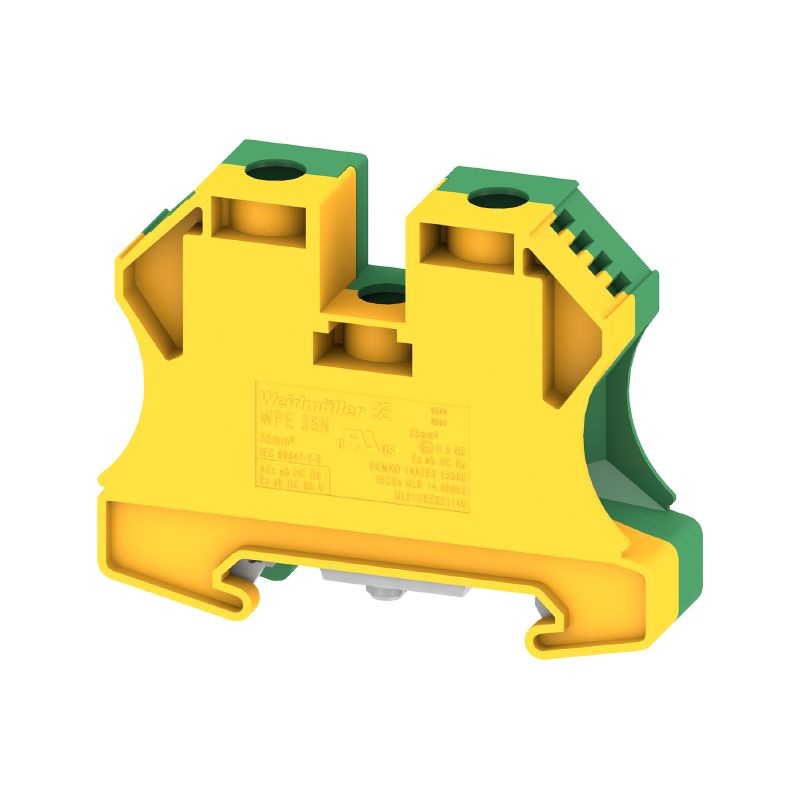

Introducing the WPE 35N PE terminal, engineered for screw connections and capable of handling voltages up to 400 V This terminal boasts a cross-section size of 35 mm² and is crafted from high-quality Wemid material Designed for two connections within a single level, it measures 505 mm in depth, 66 mm in height, and 16 mm in width, weighing in at just 46 g Complying with RoHS standards, this terminal is built to operate within a wide temperature range, from a chilling -60 °C to a scorching 130 °C.

It is rated V-0 for flammability and carries both ATEX and IECEx certifications, ensuring safety and reliability Additionally, it accommodates a clamp range from 25 mm² to 50 mm², making it a versatile choice for various applications.

Features and Benefits:

•Screw connection type.

•Compliant with RoHS and includes an exemption.

•Explosion-tested version.

•No end cover plate is required.

•Tightening torque range for fixing screw is between 1.2 to 2.4 Nm.

•PE function included.

Specifications:
