1701800000 - 3-Pole 7.50mm Connector, 90° Angle, Clamping Yoke Design (Pack of 90)
1701800000 - 3-Pole 7.50mm Connector, 90° Angle, Clamping Yoke Design (Pack of 90)
SKU: SKU: 1701800000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable connectivity with this female plug-in connector, featuring a 750 mm pitch and a practical 90° angle With three poles and a clamping yoke connection, it accommodates a maximum clamping range of 331 mm², allowing for secure and versatile use This connector is designed to meet stringent electrical standards, being compatible with IEC specifications of 800 V / 15 A and UL ratings of 300 V / 10 A.
Additionally, it complies with RoHS regulations and includes a UL file number for verification, providing peace of mind for your electronic projects Packaged in convenient boxes for easy storage and organization.
Features and Benefits:
•Compliance with RoHS.
•Three-pole design.
•90° connector angle.
•Clamping yoke connection.
Specifications:

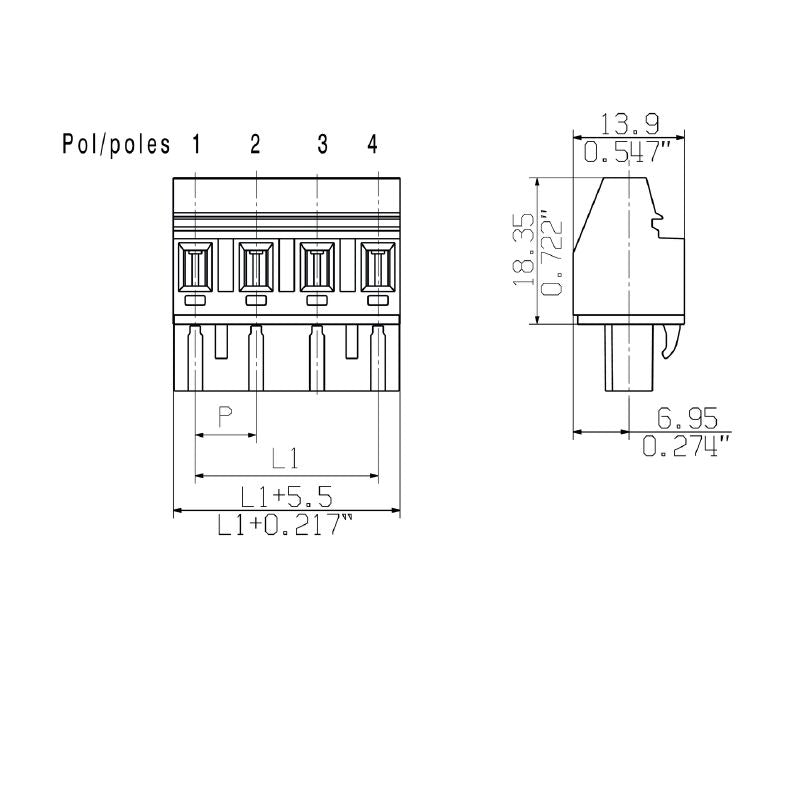

| Depth (mm) | 26.8 |
| Height (mm) | 14.3 |
| Volume resistance | 5.00 mΩ |
| Pitch | 7.5 mm |
| Thermal range (Operating) | -50 to 100 °C |
| Max clamping range | 3.31 mm² |
| Conductor connection | AWG 26 to AWG 12 |
| Material | PBT |
| Color | orange |
| UL 94 flammability rating | V-0 |
