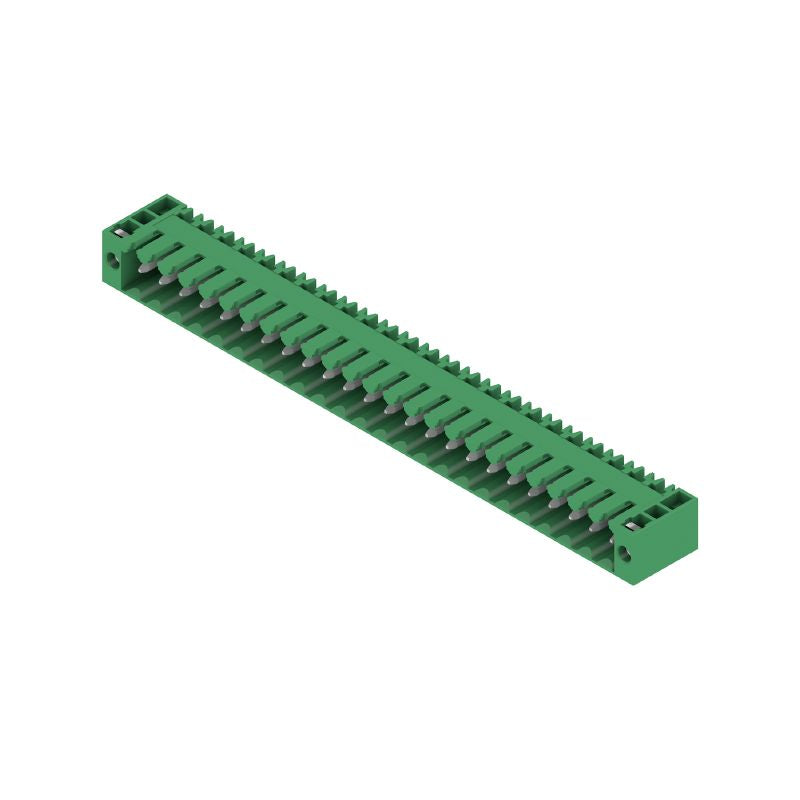

1620280000 - 24-Pole Male PCB Connector, 3.50mm Flange, 90° Angle (Pack of 20)
1620280000 - 24-Pole Male PCB Connector, 3.50mm Flange, 90° Angle (Pack of 20)
SKU: SKU: 1620280000 Download PDF
Couldn't load pickup availability
Description:
Introducing a reliable PCB plug-in connector, perfect for your electronic projects This male header features a flange for through-hole (THT) soldering and offers a 350 mm pitch with 24 pins positioned at a right angle The solder pins measure 32 mm in length and are tinned for enhanced connectivity Housed in a vibrant green casing, this connector meets RoHS standards, ensuring it upholds excellent environmental performance.
Ideal for various applications, it’s a dependable choice for precise connectivity.
Features and Benefits:
•Can be coded.
•Touch-safe protection according to DIN VDE 57 106 and 0470.
•Volume resistance is ≤5 mΩ.
•Plugging and pulling forces for poles are both 10 N.
•Tightening torque recommendations for PCB mounting screws.
•Utilized for board connection applications in electronic equipment.
Specifications:
| Number of poles | 24 |
| Solder pin length | 3.2 mm |
| Pitch | 3.5 mm |
| Operating temperature | -50 to 100 °C |
| Rated voltage | 320 V |
| Rated current | 17 A |
| Storage temperature | -40 to 70 °C |
| Insulating material | PBT |
| UL compliance | 300 V / 10 A |
