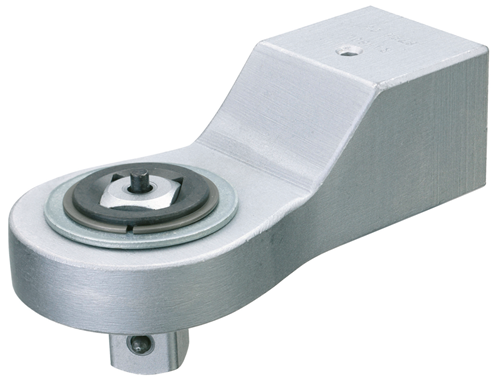

15660 - Chromium Vanadium 3/4" Ratchet Head with Max Load Capacity
15660 - Chromium Vanadium 3/4" Ratchet Head with Max Load Capacity
SKU: SKU: 15660
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This robust assembly tool is made from Chromium vanadium steel and features a durable matt chrome finish for added longevity Designed to tackle challenging assembly tasks, it includes a mechanism for easy replacement The maximum continuous load adheres to DIN EN ISO 6789:2003 standards, providing reliable performance and strength during use, ensuring you can tackle various projects with confidence.
Features and Benefits:
•Easily replaceable.
•Matt chrome-plated.
•With catch retention.
•Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and/or maximum load of cavity.
Specifications:
| Drive connector pin | 28 mm |
| Drive type/drive | Push-through square with pin |
| Drive connector square [metric] | 20 mm |
| Drive square inch | 3/4" |
| Number of teeth | 36 |
| Continuous load | 3/4" = 1000 N·m |
| Material | Chrome-vanadium steel |
| Compliance | compliant |
| Return angle | 10 ° |
| Depth gauge [metric] | 75,0 mm |
