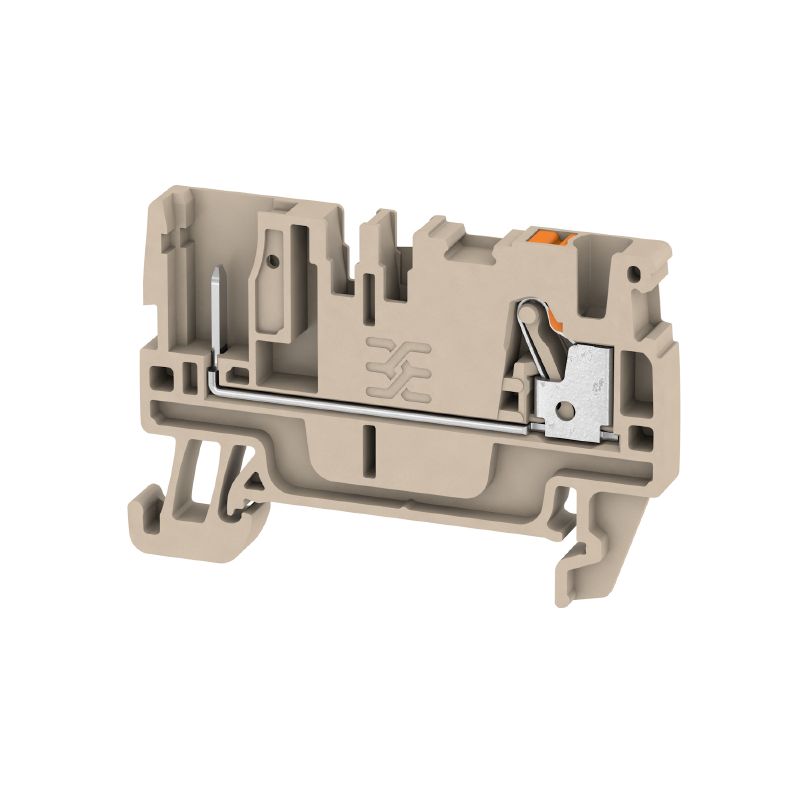

1513970000 - Dark Beige Feed-Through Terminal, 2.5mm², 800V, Push-In (Pack of 100)

1513970000 - Dark Beige Feed-Through Terminal, 2.5mm², 800V, Push-In (Pack of 100)

SKU: SKU: 1513970000   Download PDF

Select a Variant:
  • 1513970000 - Dark Beige Feed-Through Terminal, 2.5mm², 800V, Push-In (Pack of 100)
Qty:
Regular price Now $105.53   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $105.53 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the APGTB 25 FT 2C/1 feed-through terminal, expertly crafted with a convenient push-in connection It supports wire sizes of up to 25 mm², making it versatile for various applications Rated for a maximum voltage of 800 volts and a current of 24 amperes, this terminal not only functions reliably but also comes in a stylish dark beige color Furthermore, it adheres to important safety standards, including RoHS and IECEx, ensuring compliance and peace of mind for your projects.

Features and Benefits:

    •Push-in connection type.

    •RoHS compliant.

    •UL certified.

Specifications:

 Depth 36.5 mm
 Height 55 mm
 Width 5.1 mm
 Storage temperature -25 °C to 55 °C
 Ambient temperature -5 °C to 40 °C
 Continuous operating temperature, min. -60 °C
 Continuous operating temperature, max. 130 °C
 Basic material Wemid
 UL 94 flammability rating V-0
 Max. voltage (ATEX) 800 V
 Max. current (ATEX) 15 A
 Wire cross section max. (ATEX) 2.5 mm²
 Rated voltage 800 V
 Nominal current 24 A
 Volume resistance according to IEC 60947-7-x 1.33 mΩ
 Rated impulse withstand voltage 8 kV
 Power loss in accordance with IEC 60947-7-x 0.77 W
 Pollution severity 3
 Surge voltage category III
 Conductor size max. (cURus) 12 AWG
 Conductor size min. (cURus) 28 AWG
