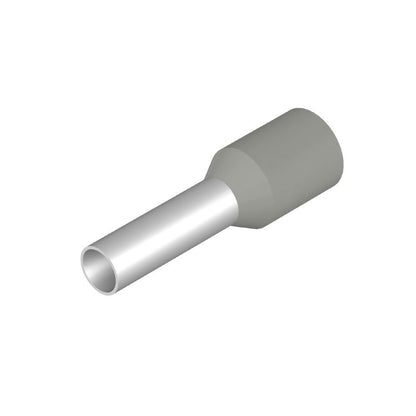

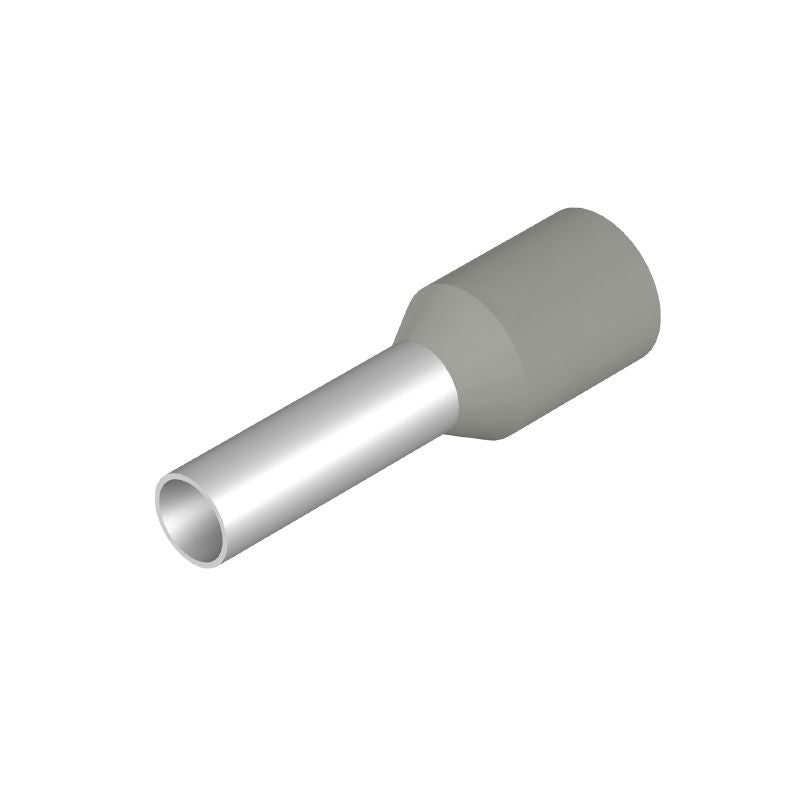

1476290000 - Grey Wire-end Ferrule, 4mm², 18mm Length, 12mm Strip Length (Pack of 100)
1476290000 - Grey Wire-end Ferrule, 4mm², 18mm Length, 12mm Strip Length (Pack of 100)
SKU: SKU: 1476290000 Download PDF
- 1476290000 - Grey Wire-end Ferrule, 4mm², 18mm Length, 12mm Strip Length (Pack of 100)
- 1476290000 - Grey Wire-end Ferrule, 4mm², 18mm Length, 12mm Strip Length (Pack of 100)
Couldn't load pickup availability
Description:
Elevate your wiring projects with this well-crafted wire-end ferrule featuring a practical plastic collar in sleek grey Engineered to adhere to standard specifications, the ferrule boasts a collar diameter of 48 mm, tailored for a conductor cross-section of 4 mm² The contact surface measures 28 mm in diameter and extends 10 mm in length, while the total length of the ferrule is 18 mm With a metal sleeve that is 0.
2 mm thick and a plastic collar thickness of 03 mm, it’s designed for robust performance For optimal installation, a wire stripping length of 12 mm is recommended, accommodating wire connections with cross sections up to AWG 12.
Features and Benefits:
•Compliant with RoHS.
•Packaged in a multipack bag.
•No SVHC above 0.1 wt%.
Specifications:
| Collar diameter (D2) | 4.8 mm |
| Conductor cross-section | 4 mm² |
| Contact surface diameter (D1) | 2.8 mm |
| Contact surface length (L2) | 10 mm |
| L1 in mm | 18 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.3 mm |
| Stripping length | 12 mm |
| Wire connection cross section AWG, max. | AWG 12 |
| GTIN (EAN) | 4050118283204 |
| UL Certificate No. | E354986 |
