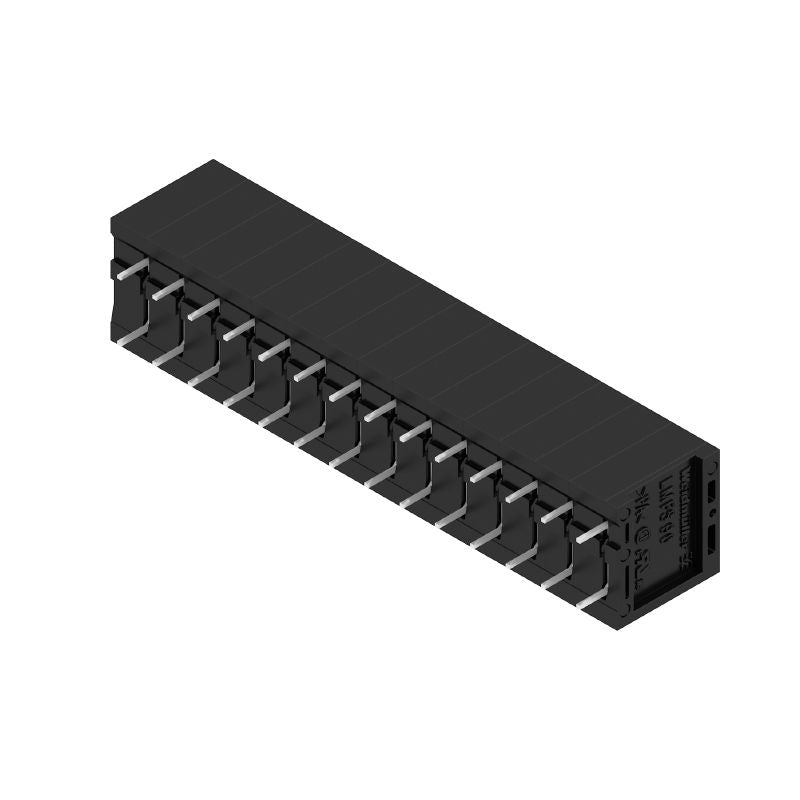

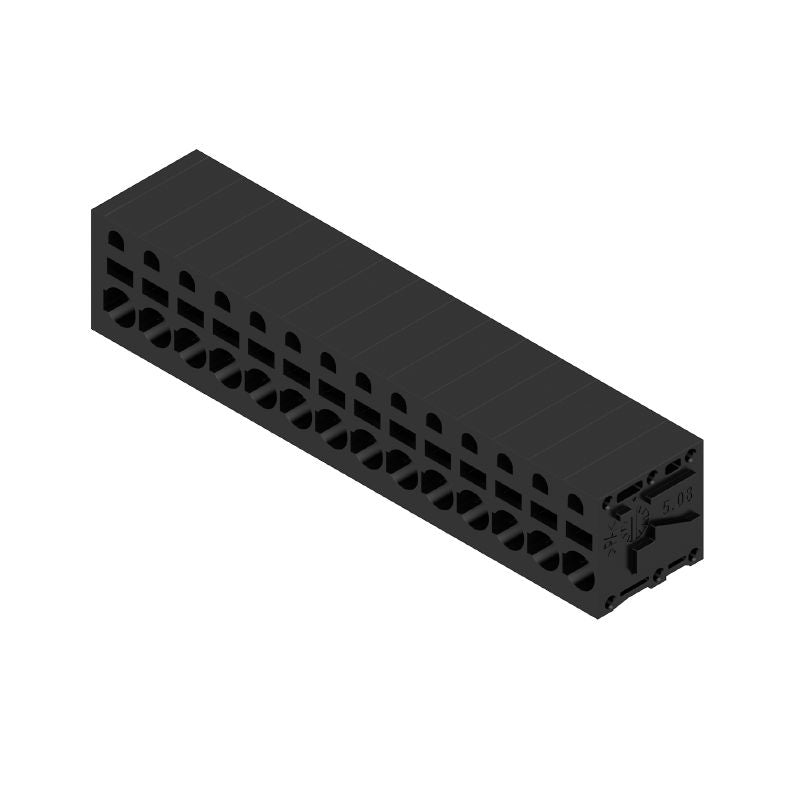

1426450000 - 5.08mm 14-Pole Black PCB Terminal, 90° Angle, 3.5mm Pins (Pack of 20)
1426450000 - 5.08mm 14-Pole Black PCB Terminal, 90° Angle, 3.5mm Pins (Pack of 20)
SKU: SKU: 1426450000 Download PDF
Couldn't load pickup availability
Description:
Enhance your projects with this 508 mm pin pitch printed circuit board terminal featuring 14 connection points oriented at a 90-degree angle Built for reliability, it includes tinned solder pins with a length of 35 mm and is designed in a classic black color The innovative push-in mechanism operates without an actuator, allowing for easy installation while accommodating a maximum clamping range of 2.
5 mm² This product comes neatly packaged in a box containing 20 terminals, making it an ideal choice for both professionals and DIY enthusiasts.
Features and Benefits:
•PUSH IN connection method without actuator.
•Complies with RoHS and does not require any exemptions.
•Touch-safe protection according to DIN VDE standards.
•THT solder connection mounting.
•Designed for a clamping range from 0.12 mm² to 2.5 mm².
Specifications:

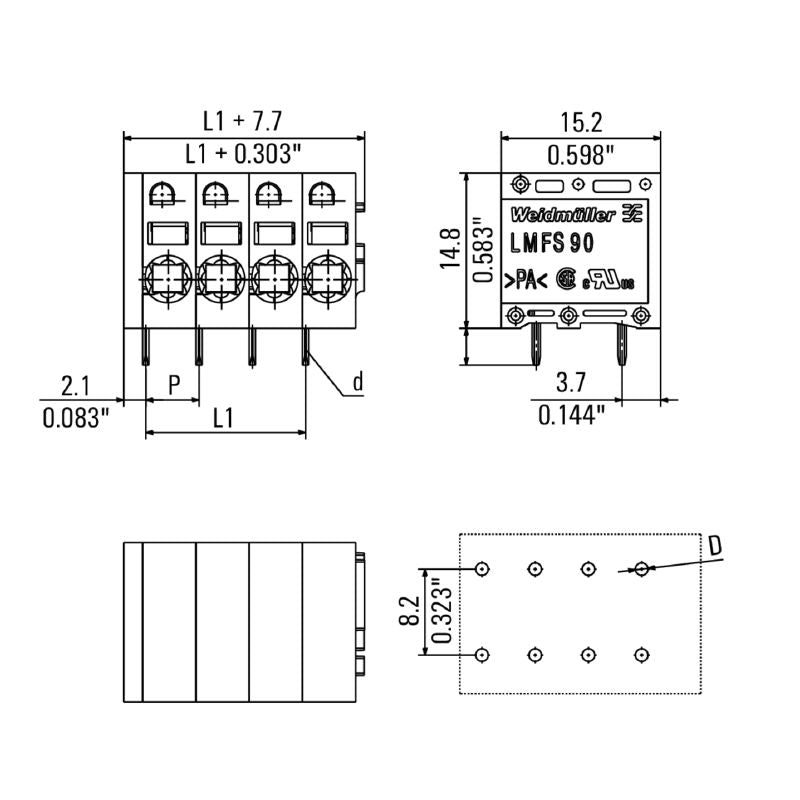

| Depth | 15.2 mm |
| Height | 18.3 mm |
| Width | 73.74 mm |
| Net weight | 19.245 g |
| Rated voltage (IEC) | 400 V / 300 V |
| Rated current (IEC) | 24 A / 20 A |
| Pitch | 5.08 mm |
| Solder pin dimensions | d = 0.8 mm |
| Protection degree | IP20 |
| Operating temperature | -50 °C to 120 °C |
| Storage temperature | -40 °C to 70 °C |
| Material | Wemid (PA) |
| Contact material | Cu-alloy |
