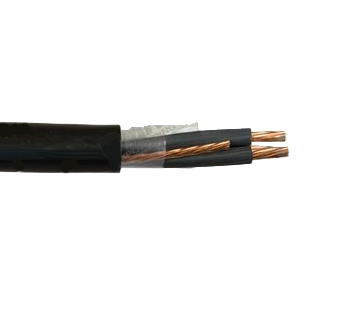

14/2 Unshielded VNTC Tray Cable W/ Ground TC THHN Insulation PVC Jacket 600V

Applications:

Tray Control Cable THHN/PVC 600V is an electrical cable suitable for all cable trays indoors and outdoors. THHN/PVC tray cables perform identically well in moist and dry locations. The cable is rated at 90°C for dry and 75°C for wet applications. THHN/PVC tray cable is equally great for free air, raceways, being directly buried in the ground. The electrical cord is rated 600 V. It has crush and impact requirements of Type MC cable.

Also Known As:

14/2 Cable Tray, 14/2 Cable Tray Types, 14/2 Electrical Cable Tray, 14/2 wire cable tray, 14/2 cable tray wire, 14/2 THHN cable, 14/2 PVC tray cable, 14/2 raceway cable, 14/2 thermoplastic tray cable, 14/2 wire tray, 14/2 multi-conductor THHN cable, 14/2 cable tray types, 14/2 PVC cable tray, 14/2 control cable, 14/2 electrical cable tray, 14/2 cable tray systems, 14/2 cable tray price, 14/2 control cable, 14/2 electrical tray, 14/2 raceway cable tray, 14/2 flexible cable tray, 14/2 industrial cable tray, 14/2 underground cable,14/2 tray control cable with the ground, 14/2 direct burial cable, 14/2Â tray cable, 14/2 ER cable, 14/2 ER tray cable, 14/2 TC-ER cable.

Standards:

• • UL 66 NEC Type TFNÂ
• • UL 1277 Type TC-ER for 3+ conductors, UL File E57179
• • UL 1581
• • ICEA S-95-658
• • UL 1277 Flame Test
• • IEEE 383 Flame Test
• • IEEE 1202 Flame Test
• • CSA FT4 Flame Test
• • EPA 40 CFR P 261 per TCLP
• • OSHA
• • RoHS

Conductor:Â

Fully annealed and stranded bare copper conductor with Class B stranding according to the ASTM B3 and ASTM B8. The conductor is sturdy, conductive, and highly flexible. The cable has an additional ground conductor.

Insulation:

Polyvinyl Chloride insulation with transparent polyamide. The insulation is flame-retardant and resistant to chemicals, water, and ozone. It also provides mechanical support and protects the cable from mechanical breaking.

Jacket:

 Polyvinyl Chloride jacket is lead-free, flame-retardant, and sunlight resistant.Â

Specification:

• • Gauge: 14
• • No. Conductors: 2
• • Stranding: 7/0.0242
• • Insulation Wall: 0.38/0.010Â Â Â
• • Jacket Wall: 0.045
• • O.D. Inches: 0.319
• • New Weight lb/1000FT: 72 lbs Â
