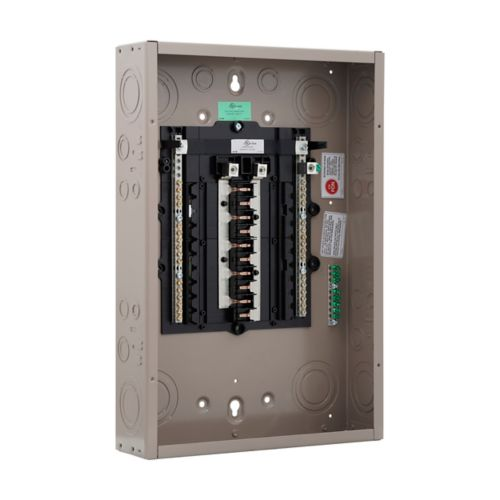

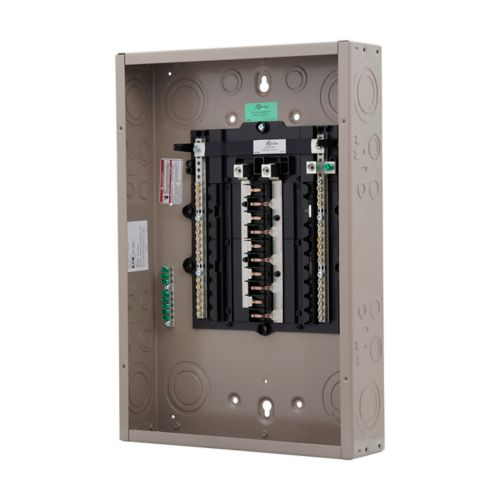

125A NEMA 1 Single Phase CH Main Lug Loadcenter CHP20L125X2
125A NEMA 1 Single Phase CH Main Lug Loadcenter CHP20L125X2
SKU: SKU: CHP20L125X2
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
About :
A Loadcenter (also known as a load center panel or breaker panel) is an electrical distribution device that houses circuit breakers or fuses. It is typically used to protect circuits from overcurrent conditions and provide a safe way to distribute electrical power to various parts of a building or facility.A well-maintained loadcenter ensures that the electrical distribution system operates efficiently and safely while providing reliable power to the building's electrical systems.
Also Known As :
Loadcenter, Electrical Panel, Breaker Panel, Circuit Breaker Panel, Breaker Box, Distribution Board, Fuse Box, Power Distribution Panel
Specification :
| Type |
CH
|
| Amperage Rating | 125 A |
| Bus material |
Copper
|
| Number of circuits |
40
|
| Number of spaces |
20
|
| Phase |
Single-phase
|
| Used with |
Type BR 1-inch breakers
|
| Voltage rating |
120/240 V
|
| Enclosure | NEMA 1 |
| Box size |
X2
|
| Enclosure material |
Steel
|
| Number of wires |
3
|
| Product Length/Depth |
21 in
|
| Product Height |
4 in
|
| Product Width |
14.3 in
|
Features :
Loadcenters are commonly found in homes to distribute power to various areas like lighting, HVAC, kitchen appliances, and more.
Larger loadcenters can be used in commercial buildings to manage power distribution to different zones or departments.
In industrial settings, loadcenters may be used to handle heavy machinery and high-capacity circuits.
All electrical work should be done in accordance with local electrical codes and regulations to ensure safety and compliance.
