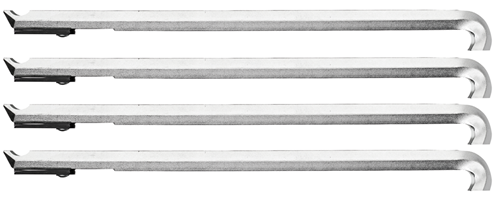

12240 - 4-Piece 226mm Puller Hook Set with Spacers
12240 - 4-Piece 226mm Puller Hook Set with Spacers
SKU: SKU: 12240
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your toolset with this puller hook kit, designed to provide exceptional functionality The set includes a 226 mm pulling hook and five spacers, making it versatile for various applications With a total length of 237 mm and weighing 0646 kg, this durable kit is compatible with ball bearings numbered 6306, 6307, 6404, 6208, 6209, and 6210 For added convenience, it works seamlessly with ball bearing extractors models 1.
29/3 and 129/4 Elevate your projects with this essential tool set that combines precise engineering with ease of use.

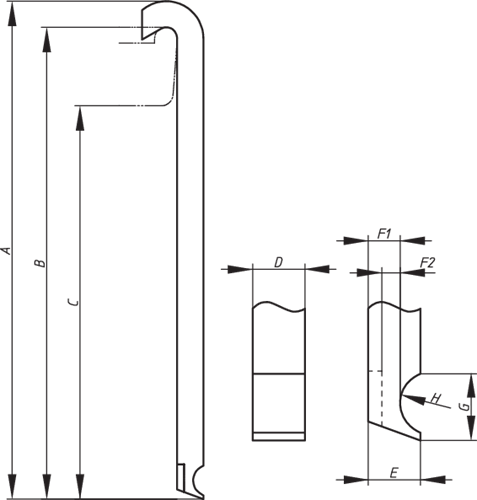

Specifications:
| Total length [mm] | 237 mm |
| Net weight [kg] | 0.646 kg |
| Distance inner radius rear edge | 6.4 - 8.9 mm |
| Distance inner radius of rear edge stepped [mm] | 6.4 mm |
| Distance from top edge of radius to tip of hook foot [mm] | 13.1 mm |
| for ball bearing No. | 6306 6307 6404 6208 6209 6210 6307 |
| for ball bearing extractor | 1.29/3 1.29/4 |
| Width of hooked foot | 11.3 mm |
| Hook foot length upper edge of head [mm] | 227 mm |
| Hook foot length Lower edge of head | 197, 199 mm |
| Depth of hooked foot [mm] | 10 mm |
| Rounding Diameter [mm] | 6 mm |
