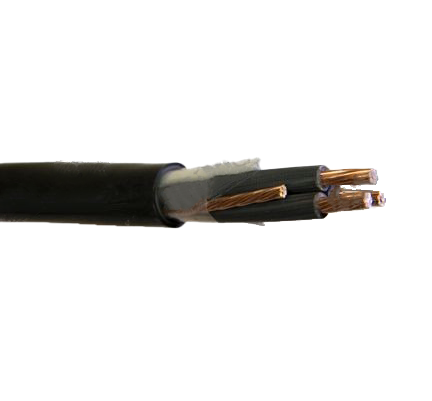

12/3 Unshielded VNTC Tray Cable W/ Ground TC-ER THHN Insulation PVC Jacket 600V

Applications:

Primarily used for power, control, signal, communication and lighting circuits in commercial and industrial environments. Suitable for installation in cable trays, supported by messenger wire in open air, raceways, channels, conduits and ducts, direct burial or joist pull applications not exceeding 600 volts and outdoors in cable trays where sunlight resistant is required.

Also Known As:

12/3 Cable Tray, 12/3 Cable Tray Types, 12/3 Electrical Cable Tray, 12/3 wire cable tray, 12/3 cable tray wire, 12/3 THHN cable, 12/3 PVC tray cable, 12/3 raceway cable, 12/3 thermoplastic tray cable, 12/3 wire tray, 12/3 multi-conductor THHN cable, 12/3 cable tray types, 12/3 PVC cable tray, 12/3 control cable, 12/3 electrical cable tray, 12/3 cable tray systems, 12/3 cable tray price, 12/3 control cable, 12/3 electrical tray, 12/3 raceway cable tray, 12/3 flexible cable tray, 12/3 industrial cable tray, 12/3 underground cable,12/3 tray control cable with the ground, 12/3 direct burial cable, 12/3 exposed run tray cable, 12/3 ER cable, 12/3 ER tray cable, 12/3 TC-ER cable.

Standards:

• UL 66, UL 83, UL1277
• UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test
• Approved as Type TC or TC-ER-JP, Sunlight Resistant, Direct Burial
• ASTM B3, ASTM B8
• NEC Article 336, Article 501, Article 725 for class 1 circuits

Conductor:

Fully annealed bare copper Class B compressed strand per ASTM B3 and B8

Insulation:

Heat and moisture resistant Polyvinylchloride (PVC) with a Nylon jacket

Ground:

Soft bare annealed copper, Class B stranding per ASTM B3 and B8

Assembly:

Conductors and ground are cabled together with or without fillers as required to form a round compact cable core with a binder tape

Jacket:

Sunlight resistant PVC rated 90°C per UL 1277. Ripcord provided for jackets with thickness of 60 mils or less

Specification:

• Gauge: 12 AWG
• No. Conductors: 3
• No. of Strands: 7
• Ground Wire Size: 12 AWG
• Insulation Thickness: 0.015 inches
• Nylon Thickness: 0.004 inches
• Jacket Thickness: 0.045 inches
• Overall Diameter: 0.385 inches
• Net Weight lbs/kft : 133 lbs
