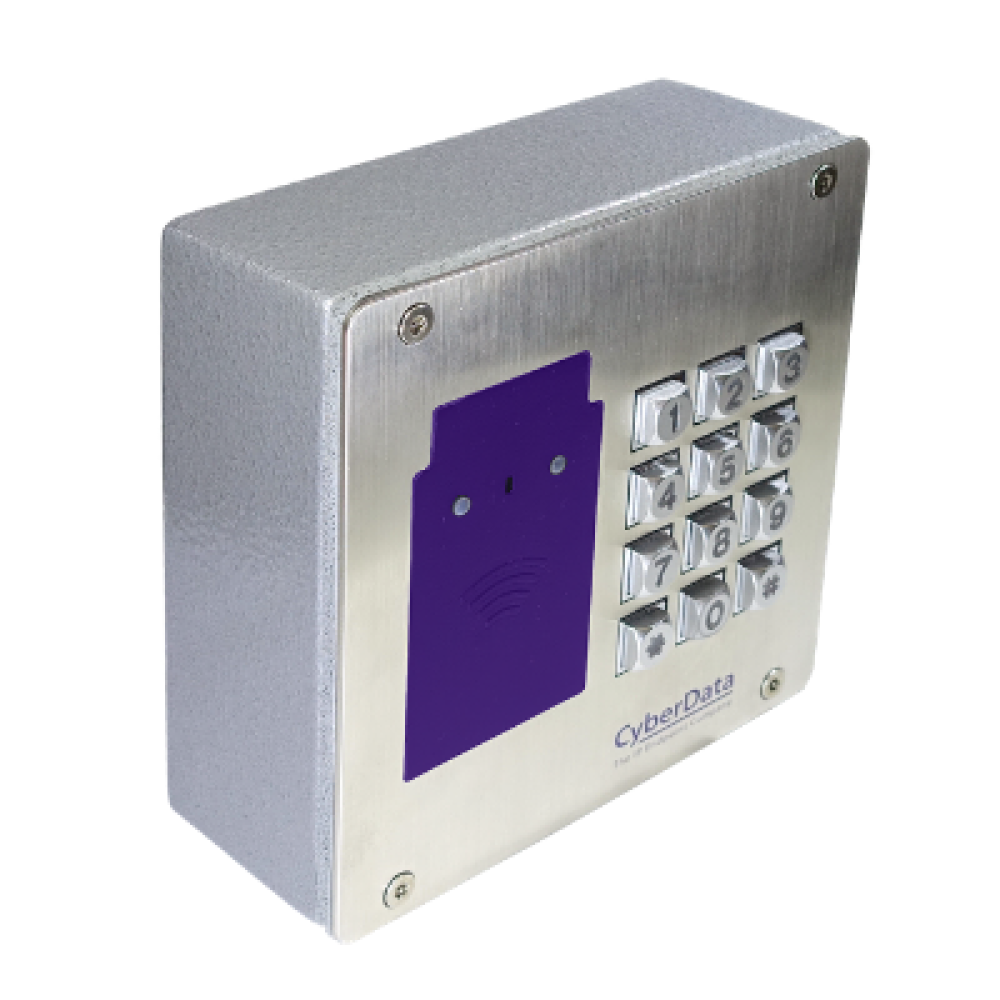

11426 - Secure RFID Keypad Access Control System for VoIP Gates & Doors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CyberData SIP-based RFID/Keypad Secure Access Control endpoint, designed to integrate seamlessly with your existing VoIP network for the efficient locking and unlocking of gates or doors This advanced system accommodates both single and dual-factor authentication, providing enhanced security for your premises Powered through PoE and housed in a robust outdoor-rated enclosure, it can store up to 500 unique access codes.

An essential feature includes a blacklist that, when activated, notifies you via phone call with a pre-recorded message or broadcasts alerts to connected IP endpoints Access code lists—both valid and blacklisted—can be easily managed through a web interface or automatically provisioned from a remote server CyberData prioritizes security with its RFID technology, employing AES128 encryption to safeguard data exchanged between the card and the reader, preventing unauthorized duplication attempts.

The system ensures top-notch protection through a mutual authentication process, allowing the reader and the card to validate each other's encrypted security keys This intricate mechanism guarantees that both parties confirm their identity before processing access A successful read signifies matched keys, activating the extraction of encrypted data from the card to verify its status within the system, whereas any mismatch will lead to card rejection.

Features and Benefits:

•SIP compliant.

•PoE 802.3af enabled (Powered-over-Ethernet).

•Mifare Plus X 2K/4K cards are supported for a high level of encryption.

•IP 65 outdoor-rated.

•Alert buzzer.

•Red/Green lock status lights.

•Can operate in standalone mode. PBX not required. Future-proof and adaptable when upgrading to new VoIP PBX.

•Built in time of access scheduler.

•Local and remote logging with time stamp.

•NTP time support.

•Network web management.

•Supports 500 Access Codes.

•Blacklisted code alert via dialout and multicast stored message.

•Network downloadable firmware.

•Dry contact relay to trigger door lock or unlock gates.

•Door closure and tamper alert signal.

•Support for CyberData's Networked Dual Door Strike Relay and Intermediate Door Strike Relay.

•Security Torx screws with driver kit included.

Specifications:
