1040880000 - 2.5mm² Blue Terminal Block for 24A, 500V Applications (Pack of 100)

1040880000 - 2.5mm² Blue Terminal Block for 24A, 500V Applications (Pack of 100)

SKU: SKU: 1040880000   Download PDF

Select a Variant:
  • 1040880000 - 2.5mm² Blue Terminal Block for 24A, 500V Applications (Pack of 100)
Qty:
Regular price Now $131.02   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $131.02 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

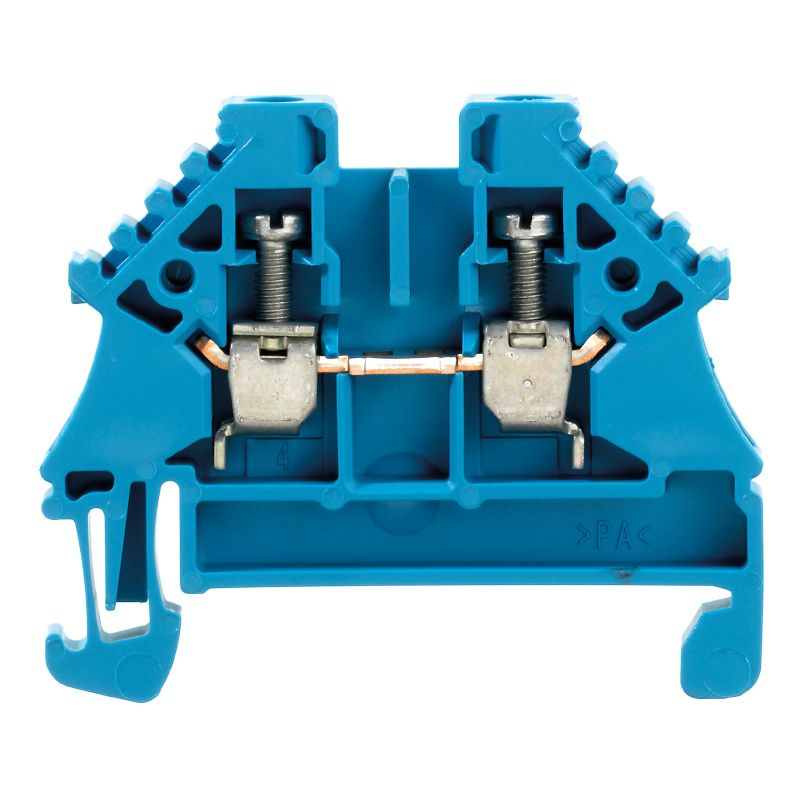

Introducing the WDU 25N ZQV BL feed-through terminal block, expertly crafted with screw connections and showcased in a vibrant blue This terminal block accommodates wire cross-sections of 25 mm² and is rated for a robust 24 A and 500 V Featuring two connection points, it offers flexibility for a wide range of electrical applications, making it an essential component for your projects.

Features and Benefits:

    •Compliant with RoHS directives.

    •Screw connection system for secure attachment.

    •Compact design with two connection possibilities.

    •Temperature range supports diverse environments.

Specifications:

 Depth 37 mm
 Height 44 mm
 Width 5.1 mm
 Net weight 5.24 g
 Storage temperature -25 °C...55 °C
 Ambient temperature -5 °C…40 °C
 Continuous operating temp., min. -50 °C
 Continuous operating temp., max. 130 °C
 Material Wemid
 Rated cross-section 2.5 mm²
 Rated voltage 500 V
 Nominal current 24 A
 Clamping range, max. 4 mm²
 Clamping range, min. 0.05 mm²
 Connection direction on side
 Mounting rail TS 35
 Wire connection cross-section, finely stranded, max. 4 mm²
 Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. 2.5 mm²
