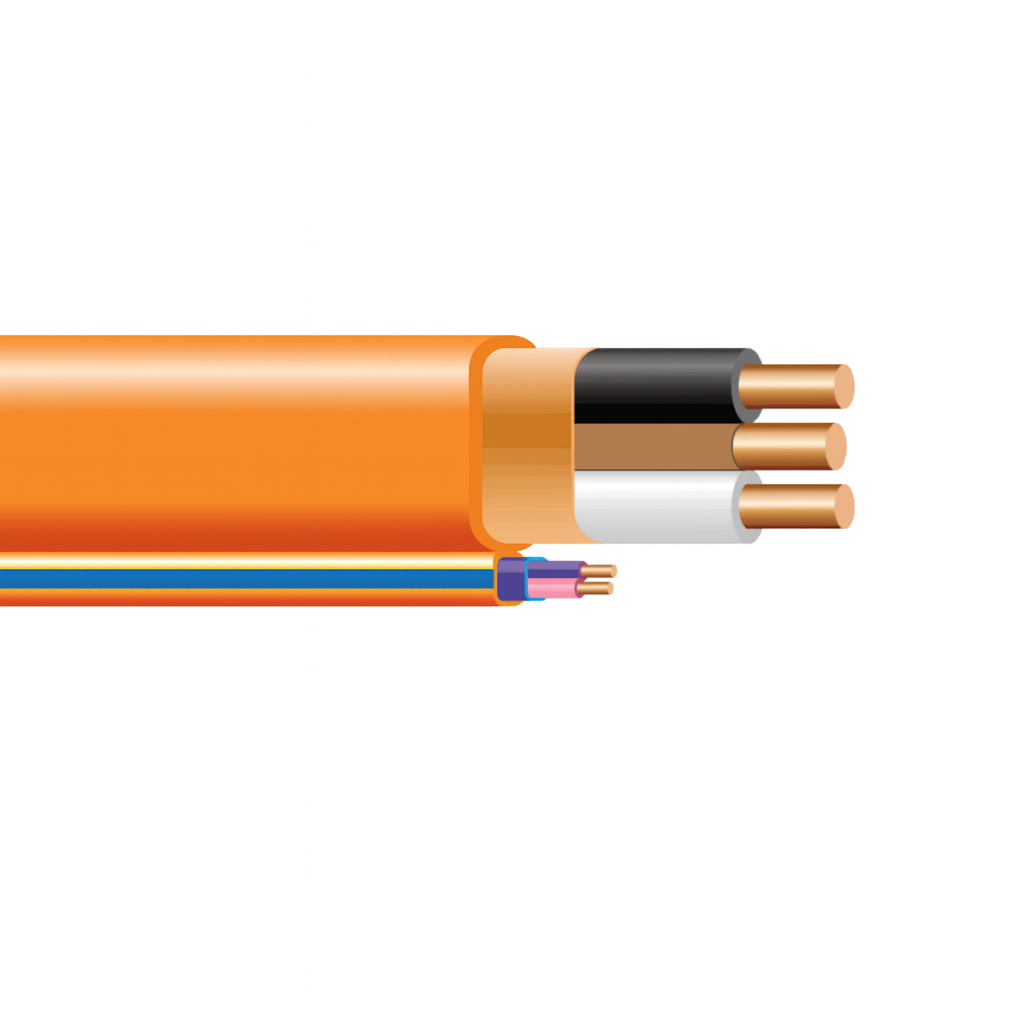

10 AWG 2C NM-B-PCS DUO Control/Signal Copper Conductors 600V Orange

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

10 AWG 2C NM-B-PCS DUO Control/Signal Copper Conductors 600V

Also Known As:

10 AWG 2C NM-B-PCS DUO copper wire, PCS DUO signal control cable, NM-B-PCS 600V copper wire, PCS DUO control wiring cable, 600V NM-B signal wire, NM-B-PCS DUO 600V conductors, NM-B PCS duo control signal, 10 AWG 2C copper signal control cable 600V, PCS DUO low voltage wiring,10 AWG 2C  NM-B PCS 600V copper cable.

Construction:

Conductor:
Solid copper per ASTM B32.

Insulation:
All phases and neutral are insulated with Polyvinyl Chloride (PVC) with Nylon Sheath

Ground:
Solid soft drawn bare copper with kraft paper wrap

Binder:
Kraft paper

Control/Signal Conductors:
16 AWG Copper TFN Insulated Singles Colored Pink, Purple. Overall light blue jacket over the signal conductors

Jacket:
Polyvinyl Chloride (PVC) jacket utilizing SIMpull Technology.

Color Code:
White 14 AWG, Yellow 12 AWG, Orange 10 AWG. Blue stripe over control/signal component
