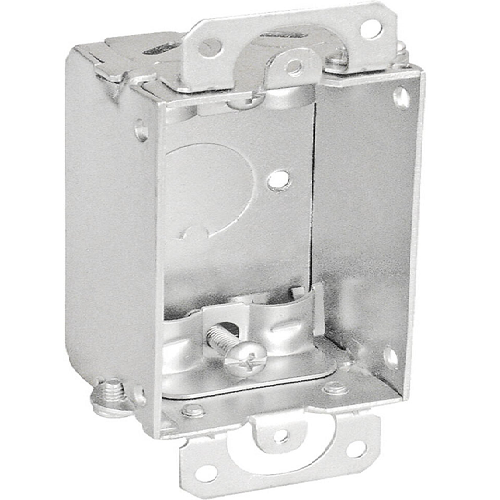

1-1/2" Inch Deep Switch Box Gangable With Romex Clamps G500-R (Pack of 100)

About :

The dimensions of 3 inches by 2 inches refer to the box's height and width, with a depth of 1-1/2 inches. This size is fairly standard for single-gang switch boxes used in residential settings. The gang able aspect means the box can be joined or "ganged" together with similar boxes to create a larger electrical box configuration. This is useful when multiple switches or outlets are needed in close proximity. Typically, these boxes are made of metal, such as steel, providing durability and protection for the electrical connections inside. Some might be made of PVC or other non-metallic materials, especially in non-conductive or corrosion-resistant applications. They usually have knockouts, which are pre-cut, removable sections that can be removed to allow for the entry of conduits or additional cables. The internal volume of the box determines the number of wires and connectors that can safely be installed in it. The 1-1/2" depth suggests it's suitable for basic light switch installations or small control devices.

Also known as:

Electrical Junction Box, Gangable Electrical Box, Electrical Wiring Housing, Single Gang Switch Box, Rectangular Switch Box.

Specification:

Material : Galvanized Steel
Product Height : 1.5 Inch
Product Width : 2.0 Inch
Cubic Capacity : 7.5 (122.9)
Color : Silver
UPC : 785592987556

Features:

• Gangable for multiple switches or device installations
• Plaster ears allow easy cut in when outlets or switches need to be added to existing wall
• UL, CUL, RoHS Compliant
