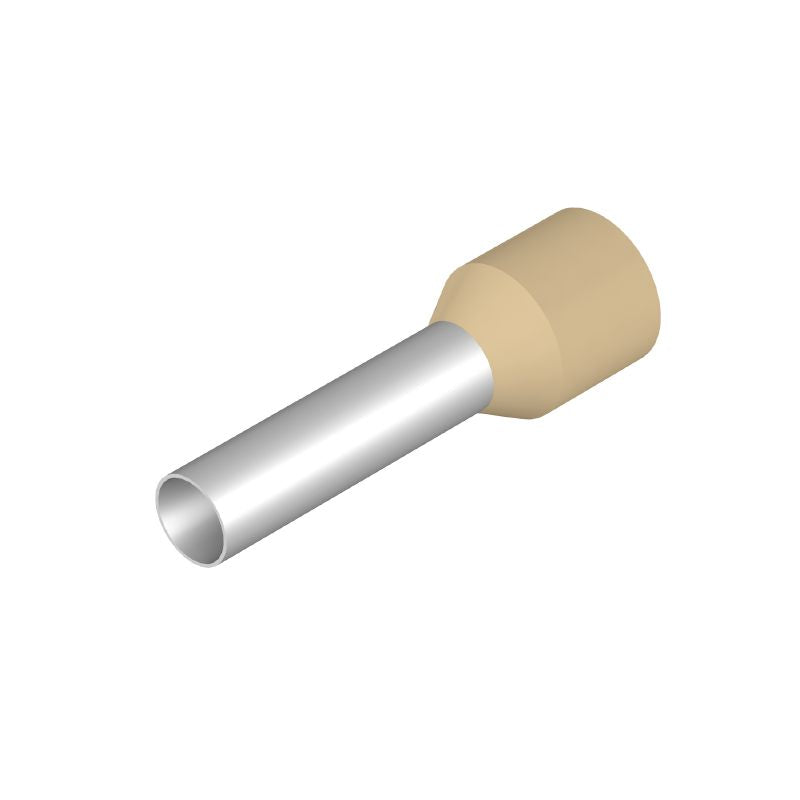

0565800000 - Ivory Wire-End Ferrule, 28mm Long, 10mm² Conductor Capacity (Pack of 100)
0565800000 - Ivory Wire-End Ferrule, 28mm Long, 10mm² Conductor Capacity (Pack of 100)
SKU: SKU: 0565800000 Download PDF
- 0565800000 - Ivory Wire-End Ferrule, 28mm Long, 10mm² Conductor Capacity (Pack of 100)
- 0565800000 - Ivory Wire-End Ferrule, 28mm Long, 10mm² Conductor Capacity (Pack of 100)
Couldn't load pickup availability
Description:
Enhance your electrical connections with this standard wire end ferrule, featuring a durable plastic collar in a sophisticated ivory hue It boasts a collar diameter of 76 mm, specifically crafted to support a conductor area of 10 mm², making it compatible with AWG 8 wires The ferrule has a contact surface diameter of 45 mm and measures 18 mm in length, while its total length reaches 28 mm For optimal performance, a stripping length of 21 mm is recommended.
This product meets RoHS standards and is free from any SVHC substances exceeding 01 weight percent, ensuring safety and compliance for your projects.
Specifications:
| Collar diameter (D2) | 7.6 mm |
| Conductor cross-section | 10 mm² |
| Contact surface diameter (D1) | 4.5 mm |
| Contact surface length (L2) | 18 mm |
| L1 in mm | 28 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Stripping length | 21 mm |
| Wire connection cross section AWG, max. | AWG 8 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
