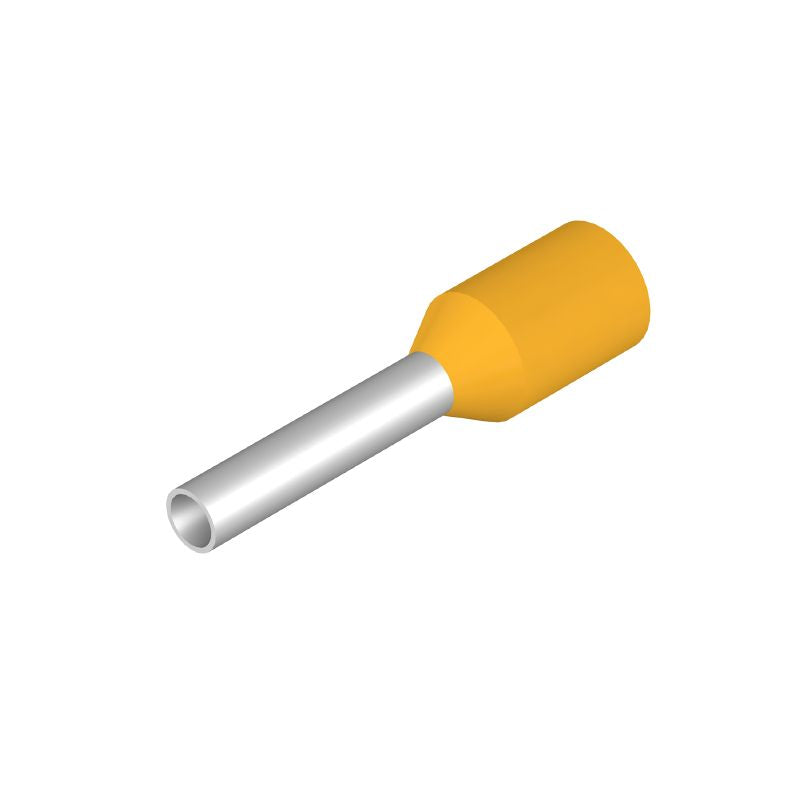

0463000000 - Yellow Wire End Ferrule, 3mm Diameter, 1mm² AWG 17 (Pack of 500)
0463000000 - Yellow Wire End Ferrule, 3mm Diameter, 1mm² AWG 17 (Pack of 500)
SKU: SKU: 0463000000 Download PDF
- 0463000000 - Yellow Wire End Ferrule, 3mm Diameter, 1mm² AWG 17 (Pack of 500)
- 0463000000 - Yellow Wire End Ferrule, 3mm Diameter, 1mm² AWG 17 (Pack of 500)
Couldn't load pickup availability
Description:
Ensure a secure electrical connection with this standard wire end ferrule, featuring a vibrant yellow plastic collar Designed for versatility, it provides a dependable connection for wires with a diameter of 3 mm and is compatible with conductors measuring 1 mm² in cross-section, equivalent to AWG 17 Ideal for a variety of applications requiring a strong electrical link.
Features and Benefits:
•Compliant with RoHS and does not include any SVHC above 0.1 wt%..
•Packaging comes in loose items..
•Certifications include UL file number E499744..
Specifications:
| Collar diameter (D2) | 3 mm |
| Conductor cross-section | 1 mm² |
| Contact surface diameter (D1) | 1.4 mm |
| Contact surface length (L2) | 8 mm |
| Overall length (L1) | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 17 |
| GTIN (EAN) | 4008190024697 |
| ETIM classifications | {'ETIM 6.0': 'EC000005', 'ETIM 7.0': 'EC000005', 'ETIM 8.0': 'EC000005', 'ETIM 9.0': 'EC000005', 'ETIM 10.0': 'EC000005'} |
| ECLASS classifications | {'ECLASS 9.0': '27-40-02-01', 'ECLASS 9.1': '27-40-02-01', 'ECLASS 10.0': '27-40-02-01', 'ECLASS 11.0': '27-40-02-01', 'ECLASS 12.0': '27-40-02-01', 'ECLASS 13.0': '27-40-02-01', 'ECLASS 14.0': '27-40-02-01', 'ECLASS 15.0': '27-40-02-01'} |
