04596-232 1.75 inch Mush Push-Pull

04596-232 1.75 inch Mush Push-Pull

SKU: 04596232   Download PDF

Qty:
Now $607.60   Web pricing policy
BEFORE   Now $607.60 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 175 inch Mush Push-Pull switch is a hand-operated control circuit device rated as 'Heavy Duty' for electromagnetic equipment It features a yellow cover made from die-cast zinc and painted with dry powder paint, along with a solid red plastic mushroom plunger head It includes gold plated contacts to eliminate high resistance tarnishing, with a push action to turn 'OFF' (contacts open) and a pull action to turn 'ON' (contacts closed).

Additionally, it has a Nema rating of 12/13 and an IP rating of 65.

Features and Benefits:

    •Gold plated contacts eliminate high resistance tarnishing.

    •Push 'OFF' and Pull 'ON' operation.

    •Nema 12/13 rating.

    •IP 65 protection.

Specifications:

 Plunger Color Red
 Cover Color Yellow
 Operating Force 6.0 lb

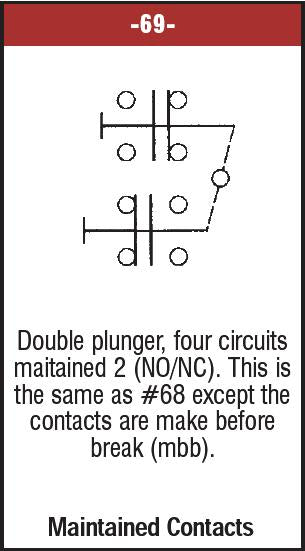

 Contact Arrangement #69 2NO + 2NC
 Contact Type Make-Before-Break
 Operating Type Maintained
 Approx. Shipping Weight 1.40 lb
