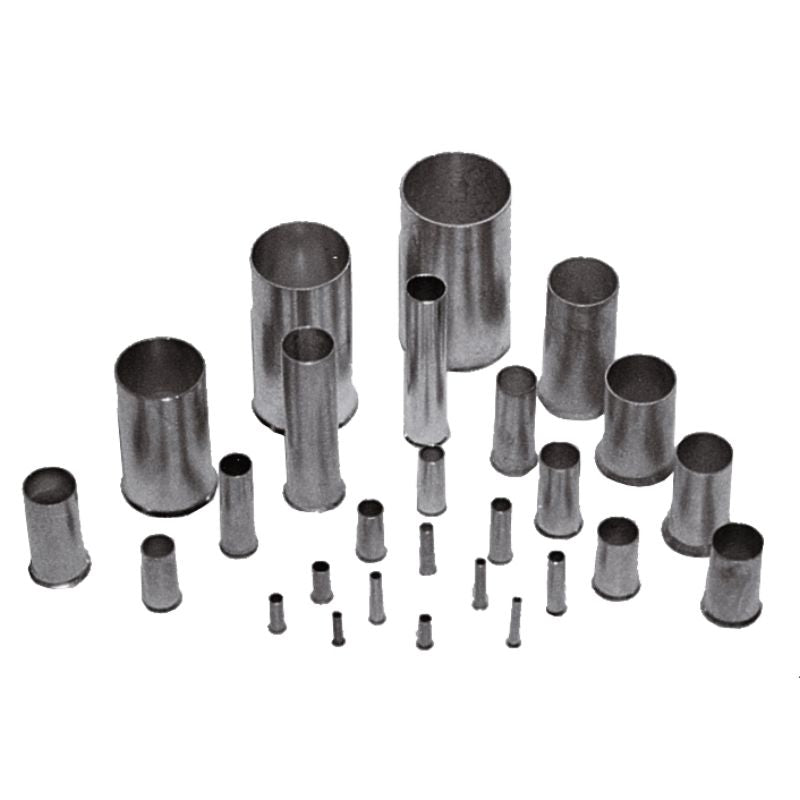

0375300000 - Standard Wire-end Ferrule, 9.5mm Diameter for 25mm² Conductors (Pack of 100)
0375300000 - Standard Wire-end Ferrule, 9.5mm Diameter for 25mm² Conductors (Pack of 100)
SKU: SKU: 0375300000 Download PDF
- 0375300000 - Standard Wire-end Ferrule, 9.5mm Diameter for 25mm² Conductors (Pack of 100)
- 0375300000 - Standard Wire-end Ferrule, 9.5mm Diameter for 25mm² Conductors (Pack of 100)
Couldn't load pickup availability
Description:
Discover the versatility of this wire-end ferrule, engineered without a plastic collar, making it ideal for various electrical uses This standard ferrule has a collar diameter of 95 mm and is compatible with conductors up to 25 mm² in cross-section It features a contact surface diameter of 73 mm and a total length of 18 mm, including a stripping length of the same measurement, ensuring a steadfast and secure wire connection.
This ferrule also supports a maximum AWG size of 3, making it a reliable choice for your electrical projects.
Features and Benefits:
•RoHS compliant without exemption.
•Packaging is loose.
•Suitable for 100 items per order.
Specifications:

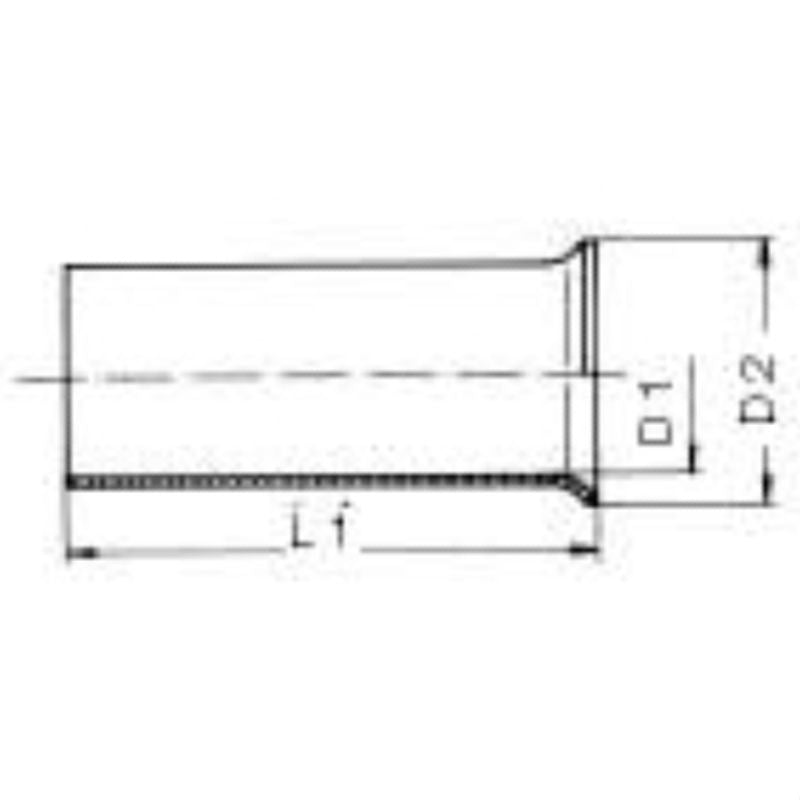

| Collar diameter (D2) | 9.5 mm |
| Conductor cross-section | 25 mm² |
| Contact surface diameter (D1) | 7.3 mm |
| Contact surface length (L2) | 18 mm |
| L1 in mm | 18 mm |
| Stripping length | 18 mm |
| Wire connection cross section AWG, max. | AWG 3 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
