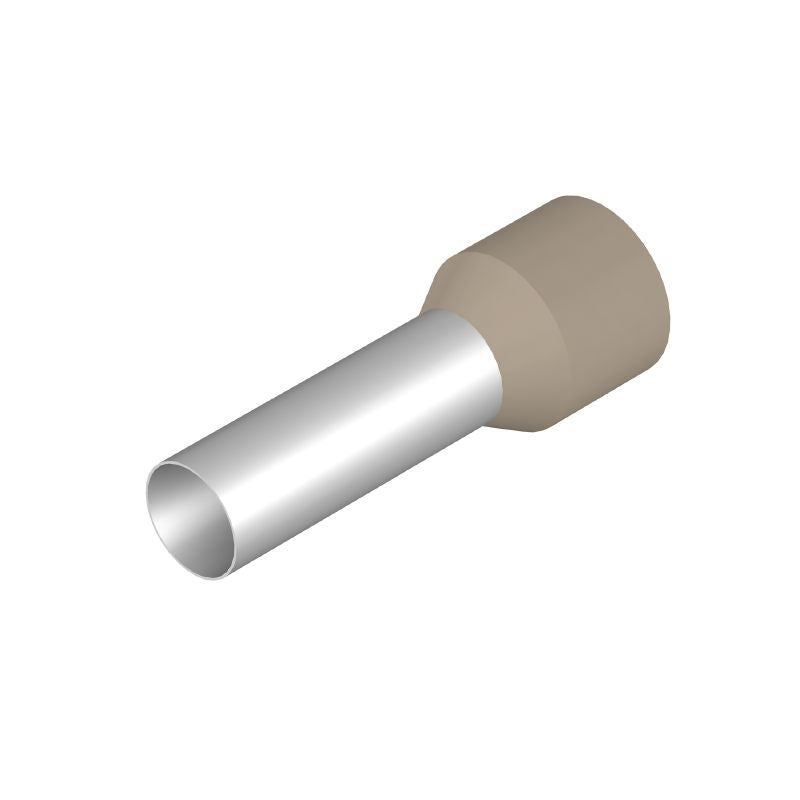

0317300000 - 39mm Beige Wire End Ferrule for 35mm² Conductors (Pack of 50)
0317300000 - 39mm Beige Wire End Ferrule for 35mm² Conductors (Pack of 50)
SKU: SKU: 0317300000 Download PDF
- 0317300000 - 39mm Beige Wire End Ferrule for 35mm² Conductors (Pack of 50)
- 0317300000 - 39mm Beige Wire End Ferrule for 35mm² Conductors (Pack of 50)
Couldn't load pickup availability
Description:
Discover the convenience of this beige wire end ferrule featuring a durable plastic collar Designed as a standard fitting, it has a collar diameter of 127 mm and supports conductor cross-sections of 35 mm² The ferrule showcases a contact surface diameter of 83 mm and measures 25 mm in length, with an overall size of 39 mm Its metal sleeve thickness is 02 mm, while the plastic sleeve measures 04 mm With a stripping length requirement of 28 mm, this versatile device is compatible with wire connections up to a maximum cross-section of AWG 2.
Perfect for a variety of electrical applications, this ferrule is both efficient and reliable.
Features and Benefits:
•Compliant with RoHS requirements without exemption.
•Loose packaging with a quantity of 50 items.
Specifications:
| Collar diameter (D2): | 12.7 mm |
| Conductor cross-section: | 35 mm² |
| Contact surface diameter (D1): | 8.3 mm |
| Contact surface length (L2): | 25 mm |
| L1 in mm: | 39 mm |
| Metal sleeve thickness (S1): | 0.2 mm |
| Plastic collar thickness (S2): | 0.4 mm |
| Stripping length: | 28 mm |
| Wire connection cross section AWG, max.: | AWG 2 |
| GTIN (EAN): | 4008190151294 |
| UL Certificate no.: | E499744 |
| ETIM 6.0: | EC000005 |
| ECLASS 9.0: | 27-40-02-01 |
