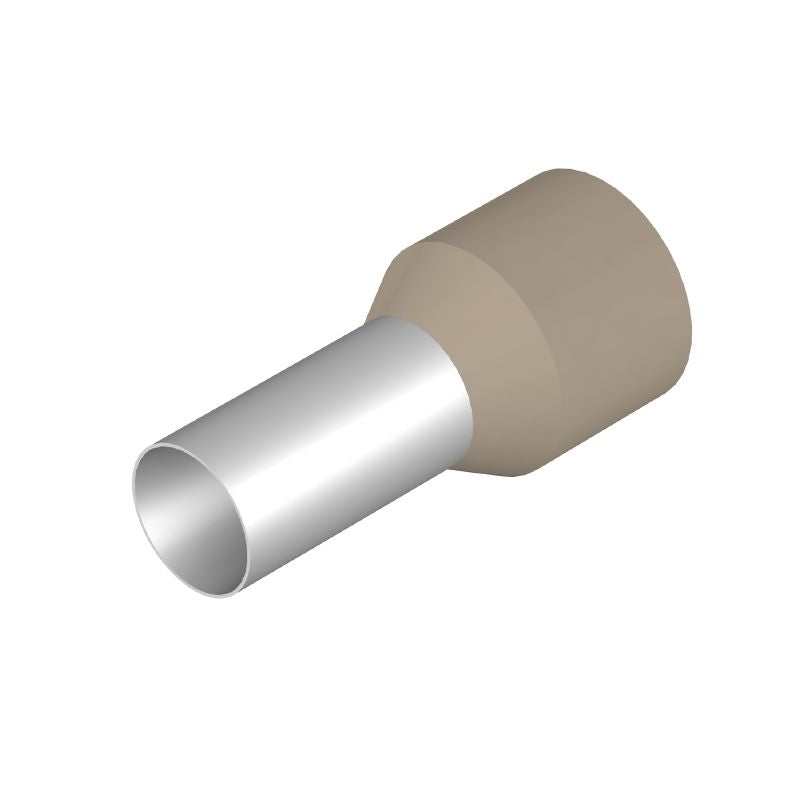

0317200000 - Beige 35mm² Wire-End Ferrule with 12.7mm Collar (Pack of 50)
0317200000 - Beige 35mm² Wire-End Ferrule with 12.7mm Collar (Pack of 50)
SKU: SKU: 0317200000 Download PDF
- 0317200000 - Beige 35mm² Wire-End Ferrule with 12.7mm Collar (Pack of 50)
- 0317200000 - Beige 35mm² Wire-End Ferrule with 12.7mm Collar (Pack of 50)
Couldn't load pickup availability
Description:
Introducing this wire end ferrule equipped with a sturdy plastic collar in an elegant beige hue Engineered to meet standard specifications, it ensures dependable connections for your electrical needs The collar measures 127 mm in diameter, making it ideal for conductor cross-sections of 35 mm² The ferrule features a contact surface diameter of 83 mm and a length of 16 mm, requiring a stripping length of 19 mm for optimal use.
Additionally, this product is cULus certified and adheres to RoHS standards, guaranteeing safety and compliance.
Features and Benefits:
•Compliant with RoHS without any exemptions.
•Packaged loose with a quantity of 50 items.
•Designed for effective wire connections with specified dimensions.
Specifications:
| Collar diameter (D2) | 12.7 mm |
| Conductor cross-section | 35 mm² |
| Contact surface diameter (D1) | 8.3 mm |
| Contact surface length (L2) | 16 mm |
| L1 in mm | 30 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Stripping length | 19 mm |
| Wire connection cross section AWG, max. | AWG 2 |
| ETIM 6.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
