0282800000 - 2.5mm Wire End Ferrule, 1mm² Cross-Section, No Collar (Pack of 1000)
0282800000 - 2.5mm Wire End Ferrule, 1mm² Cross-Section, No Collar (Pack of 1000)
SKU: SKU: 0282800000 Download PDF
- 0282800000 - 2.5mm Wire End Ferrule, 1mm² Cross-Section, No Collar (Pack of 1000)
- 0282800000 - 2.5mm Wire End Ferrule, 1mm² Cross-Section, No Collar (Pack of 1000)
Couldn't load pickup availability
Description:

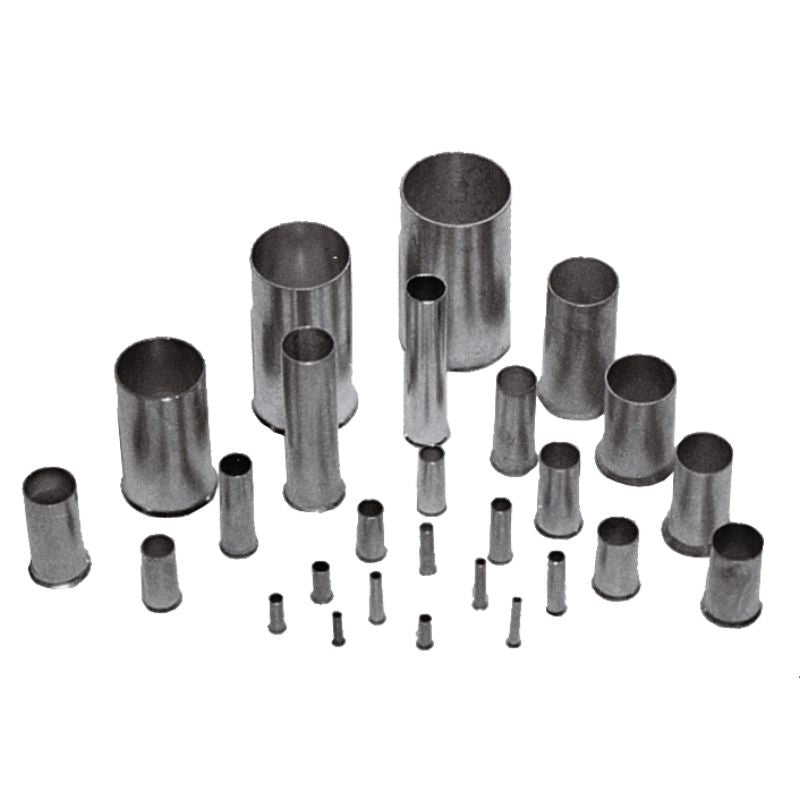

Introducing our wire end ferrule, crafted without a plastic collar for enhanced versatility This standard model boasts a collar diameter of 25 mm and accommodates a conductor cross-section of 1 mm² With a compact contact surface diameter of 14 mm and a length of 10 mm, it ensures a strong connection with a stripping length also set at 10 mm Designed to meet the specifications for a maximum wire connection cross section of AWG 17, this ferrule is ideal for various electrical applications.
Features and Benefits:
•Compliant with RoHS without exemption.
•No SVHC above 0.1 wt% in REACH.
•Loose packaging for convenience.
Specifications:

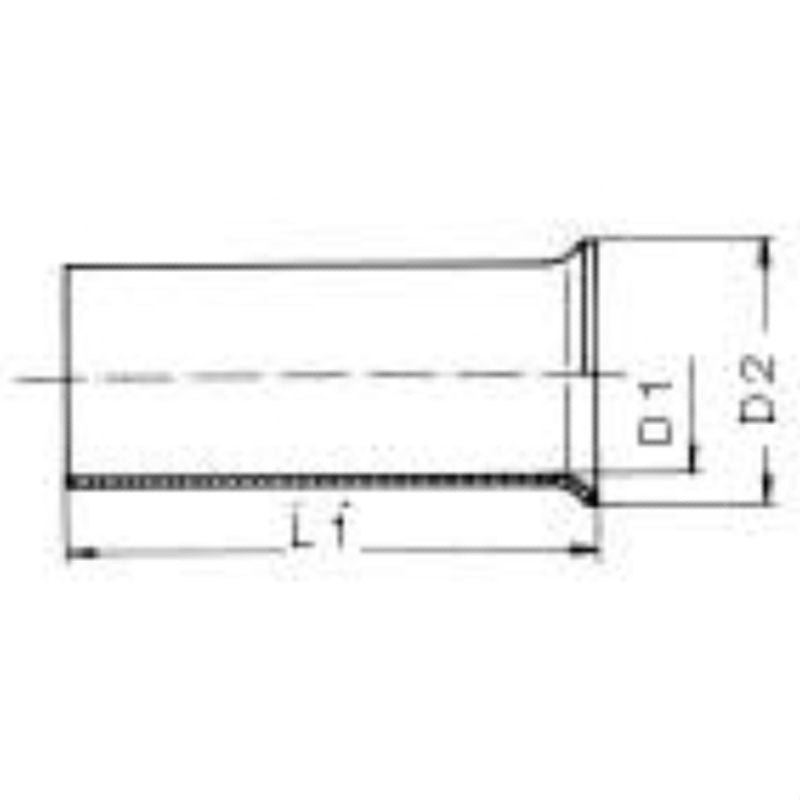

| Collar diameter (D2) | 2.5 mm |
| Conductor cross-section | 1 mm² |
| Contact surface diameter (D1) | 1.4 mm |
| Contact surface length (L2) | 10 mm |
| L1 in mm | 10 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 17 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
