0191900000 - Standard 12mm Wire Ferrule, 6mm² Conductor, 4.7mm Collar (Pack of 500)
0191900000 - Standard 12mm Wire Ferrule, 6mm² Conductor, 4.7mm Collar (Pack of 500)
SKU: SKU: 0191900000 Download PDF
- 0191900000 - Standard 12mm Wire Ferrule, 6mm² Conductor, 4.7mm Collar (Pack of 500)
- 0191900000 - Standard 12mm Wire Ferrule, 6mm² Conductor, 4.7mm Collar (Pack of 500)
Couldn't load pickup availability
Description:

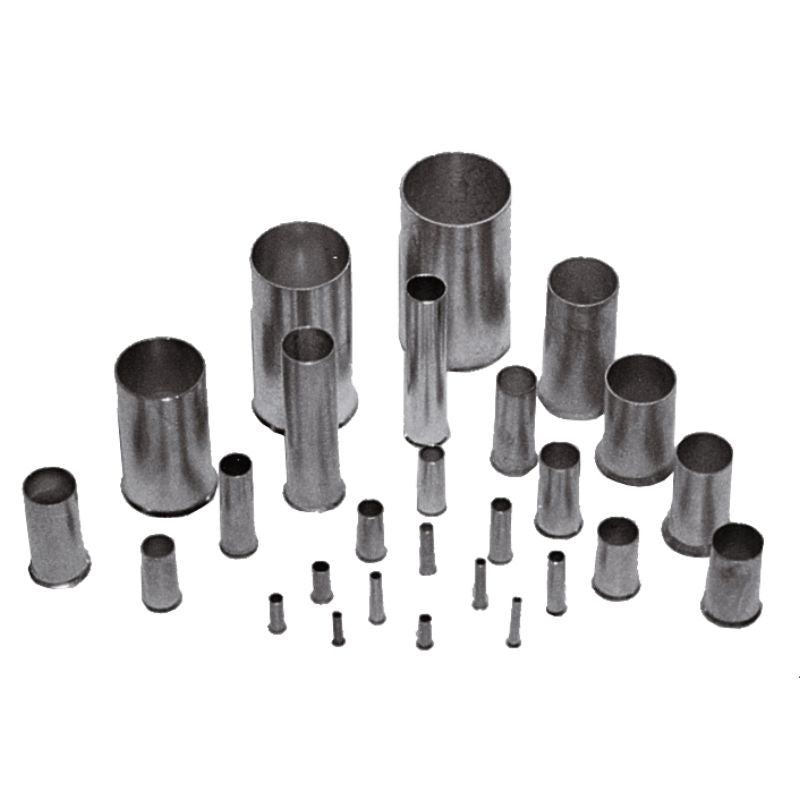

This wire end ferrule provides a versatile solution without a plastic collar, making it ideal for a wide range of uses It features a standard design with a collar diameter of 47 mm, accommodating a conductor cross-section of 6 mm² The contact area measures 35 mm in diameter and 12 mm in length, and with a stripping length of 12 mm, it ensures effective connections This ferrule can support a maximum wire connection cross-section rated at AWG 10.
Features and Benefits:
•Compliant with RoHS standards.
•Packaging is in loose format.
•Net weight of 0.21 g.
Specifications:

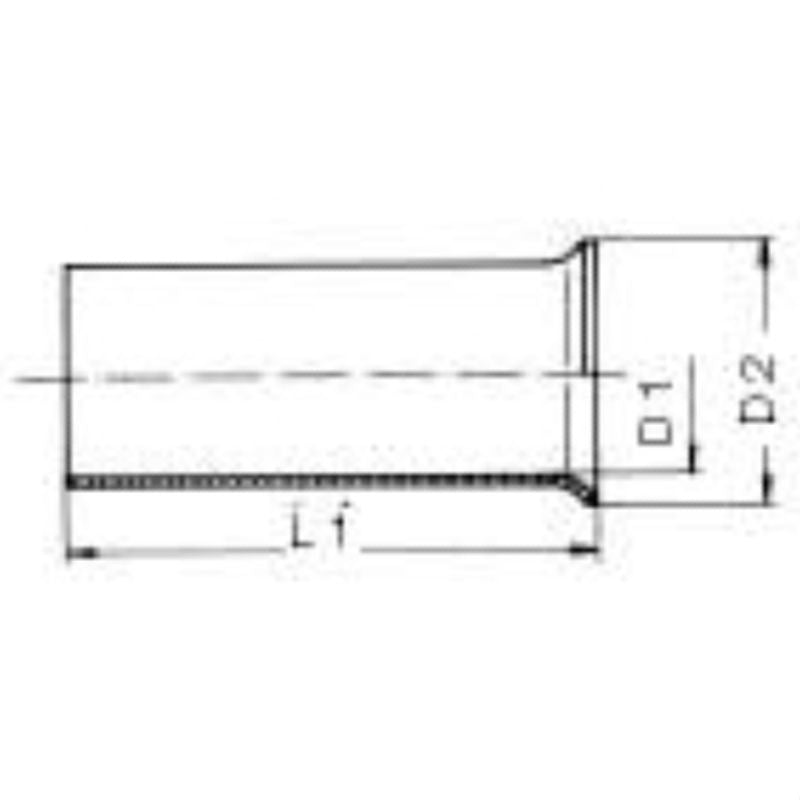

| Collar diameter (D2) | 4.7 mm |
| Conductor cross-section | 6 mm² |
| Contact surface diameter (D1) | 3.5 mm |
| Contact surface length (L2) | 12 mm |
| Stripping length | 12 mm |
| Wire connection cross section AWG, max. | AWG 10 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
