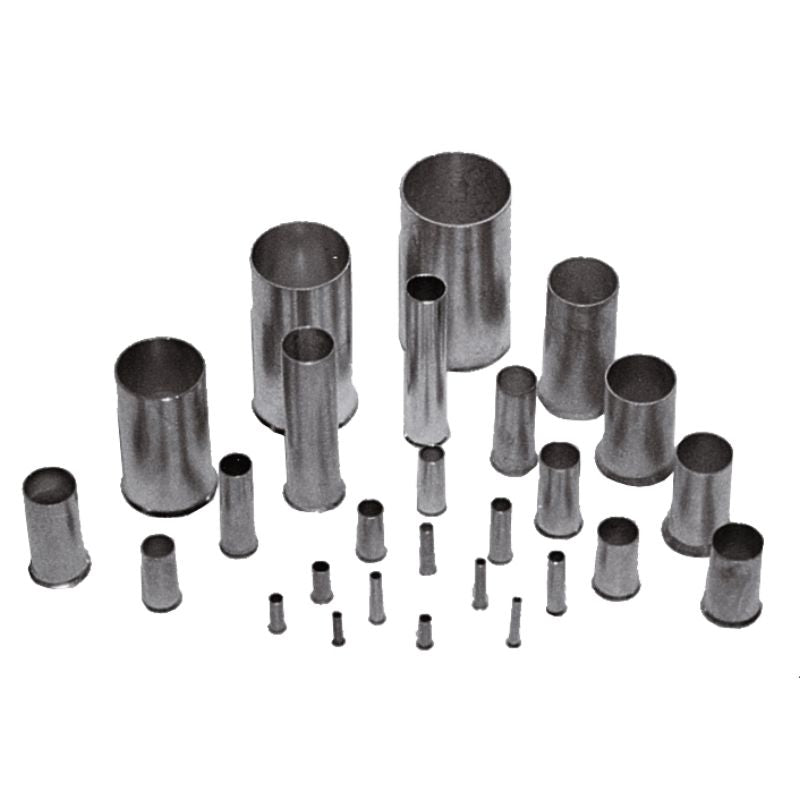

0124700000 - 15mm Wire-End Ferrule for 6mm² Conductors, RoHS Compliant (Pack of 500)
0124700000 - 15mm Wire-End Ferrule for 6mm² Conductors, RoHS Compliant (Pack of 500)
SKU: SKU: 0124700000 Download PDF
- 0124700000 - 15mm Wire-End Ferrule for 6mm² Conductors, RoHS Compliant (Pack of 500)
- 0124700000 - 15mm Wire-End Ferrule for 6mm² Conductors, RoHS Compliant (Pack of 500)
Couldn't load pickup availability
Description:
This wire-end ferrule is designed without a plastic collar, adhering to standard specifications It measures 15 mm in length with a collar diameter of 47 mm, suitable for a conductor cross-section of 6 mm² The contact surface features a diameter of 35 mm, maintaining the same 15 mm length as the whole product It requires a stripping length of 15 mm and allows for a maximum wire connection cross-section of AWG 10.
This ferrule is compliant with RoHS regulations, confirming it meets standards without exemptions and stays within REACH SVHC limits.
Features and Benefits:
•RoHS compliant without exemption.
•Designed for wire connections without plastic collars.
•Supports AWG 10 maximum wire connection.
Specifications:

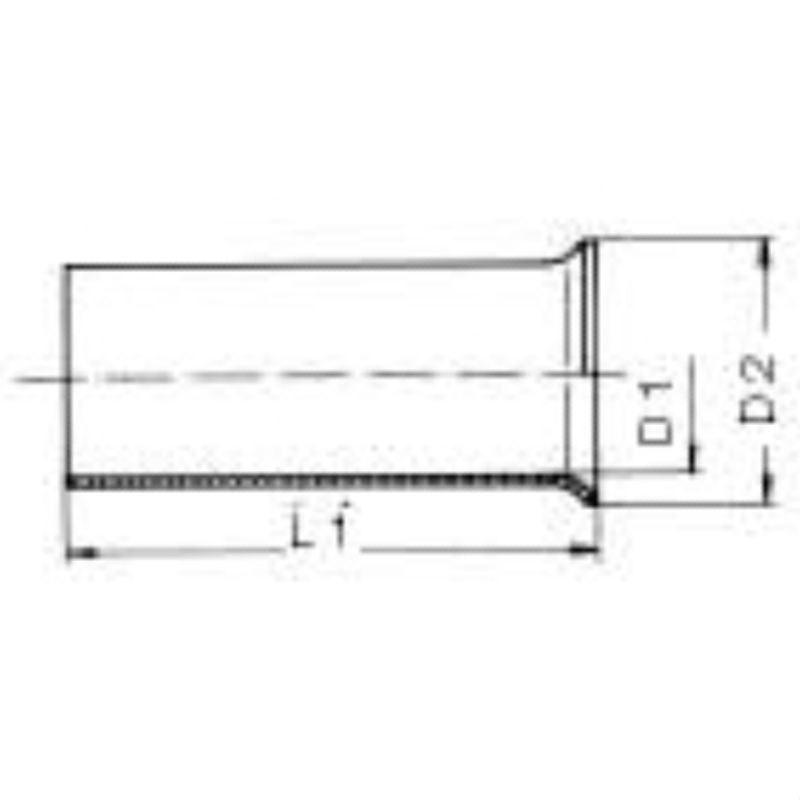

| Description of article | Wire end ferrule without plastic collar |
| Conductor cross-section | 6 mm² |
| Collar diameter (D2) | 4.7 mm |
| Contact surface diameter (D1) | 3.5 mm |
| Contact surface length (L2) | 15 mm |
| Stripping length | 15 mm |
| Wire connection cross section AWG, max. | AWG 10 |
| UL File Number | E499744 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
