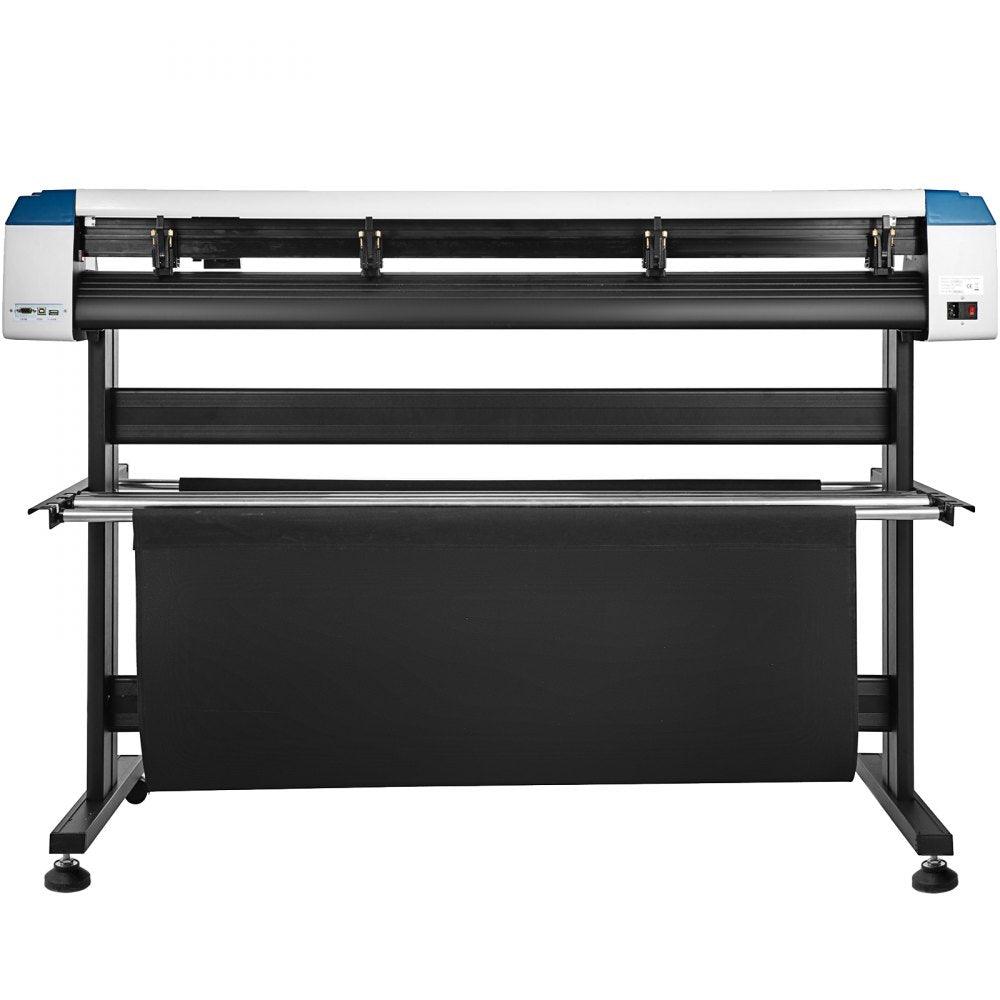

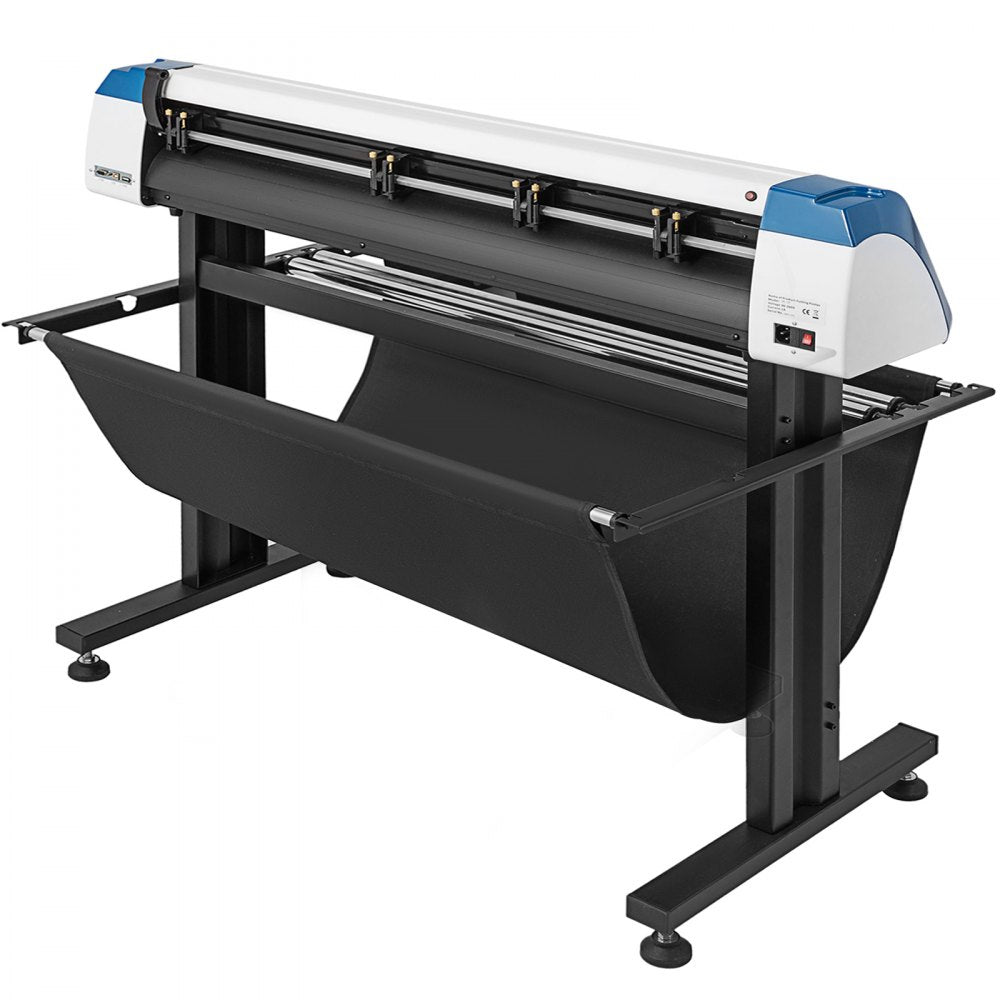

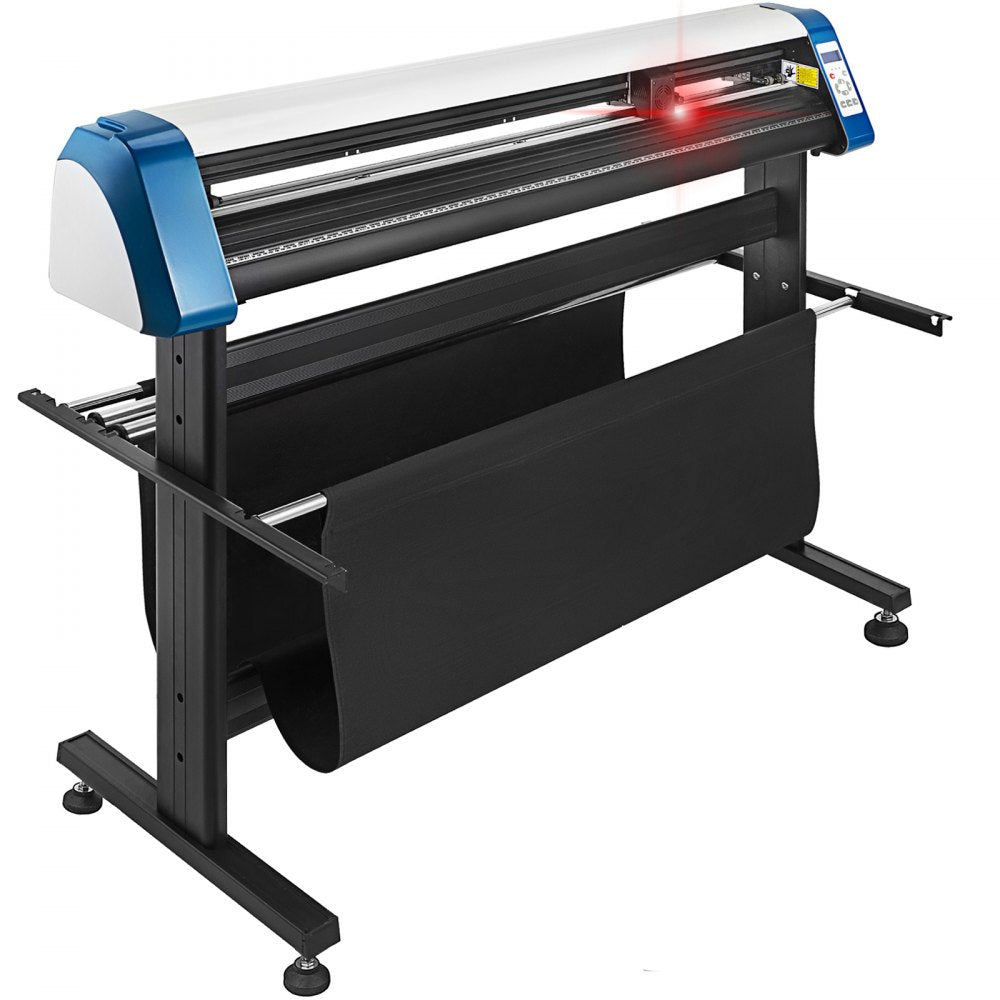

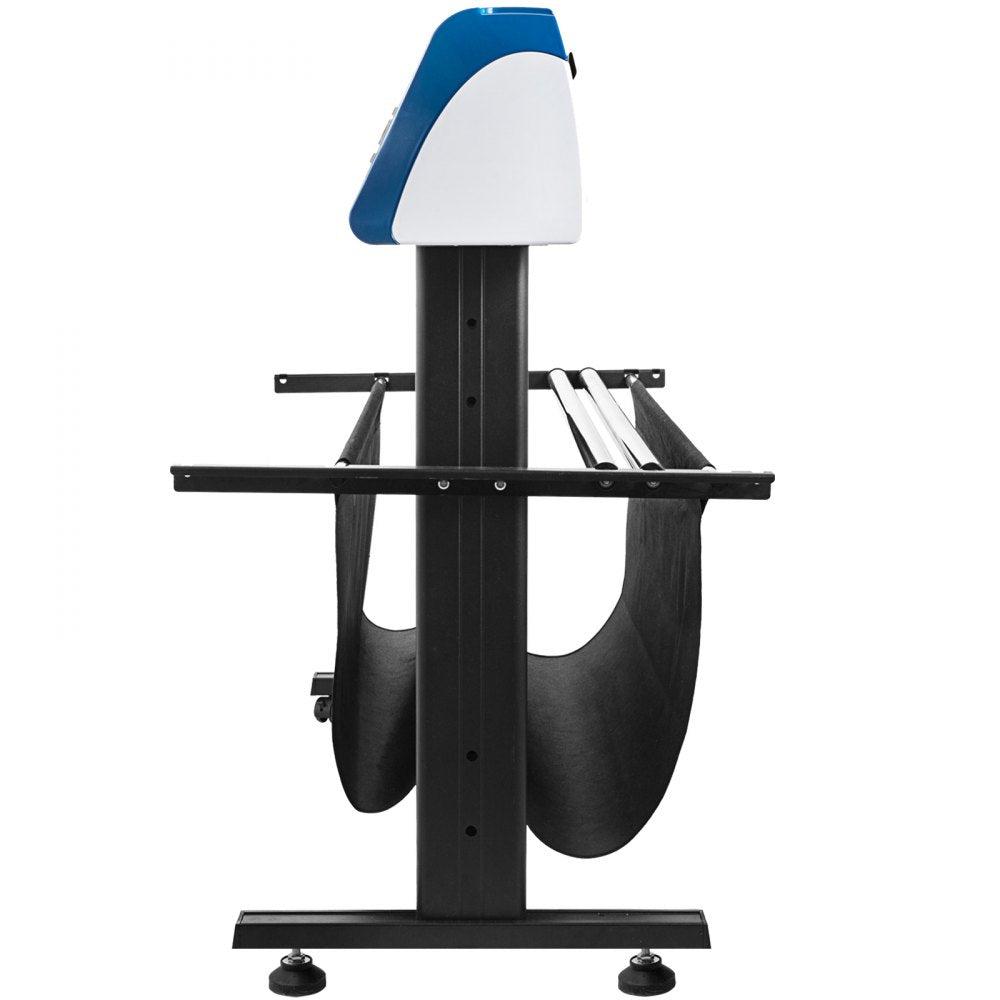

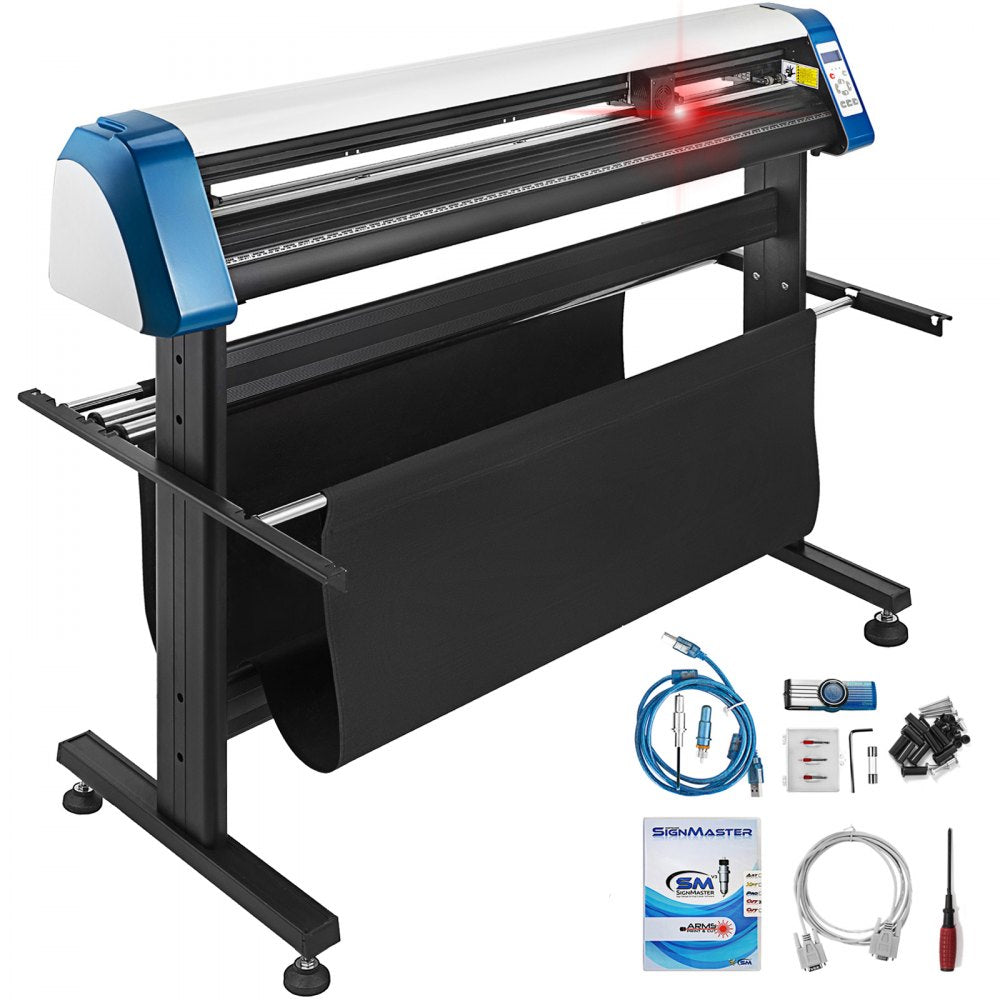

010357493512 - 53" VEVOR Vinyl Cutting Plotter with Optical Eye & LED Display

010357493512 - 53" VEVOR Vinyl Cutting Plotter with Optical Eye & LED Display

SKU: SKU: 010357493512 Download PDF

Variant:
  • 010357493512 - 53" VEVOR Vinyl Cutting Plotter with Optical Eye & LED Display
Regular price Now $674.53
Regular price BEFORE   $0.00 Sale price Now $674.53
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

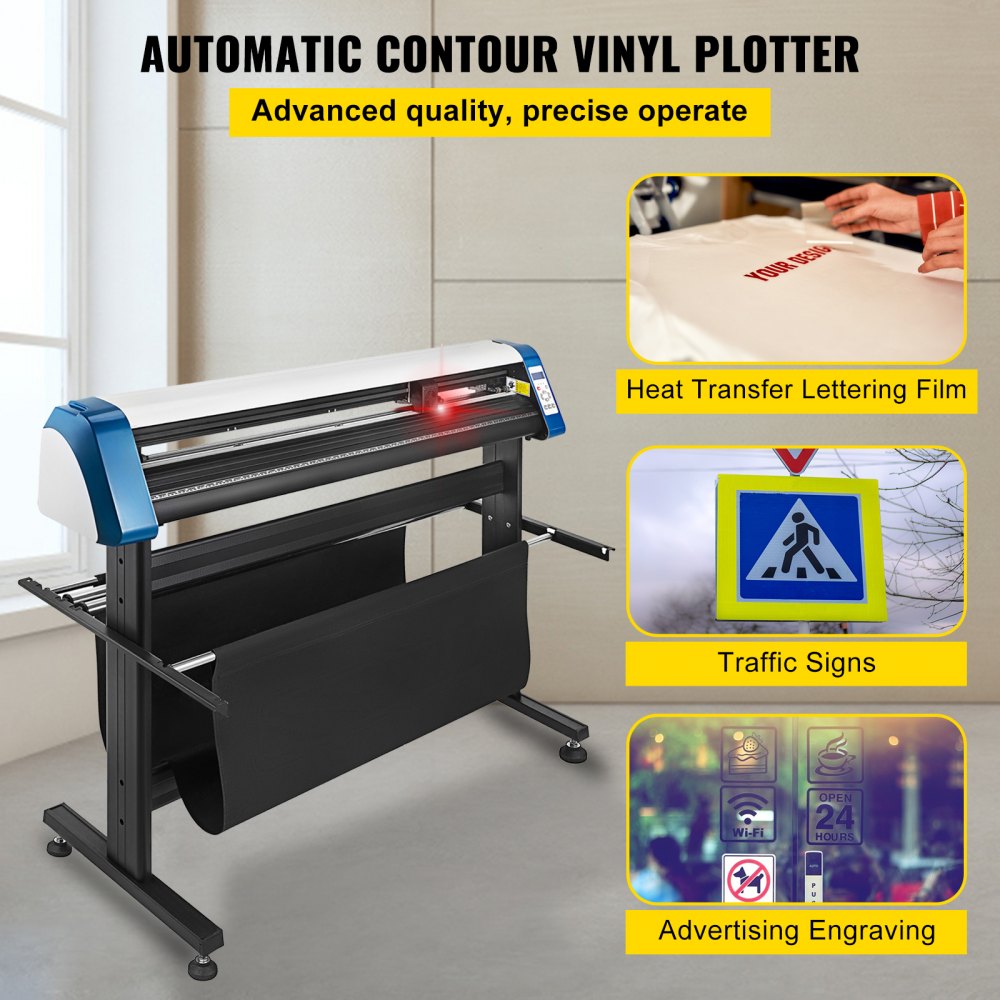

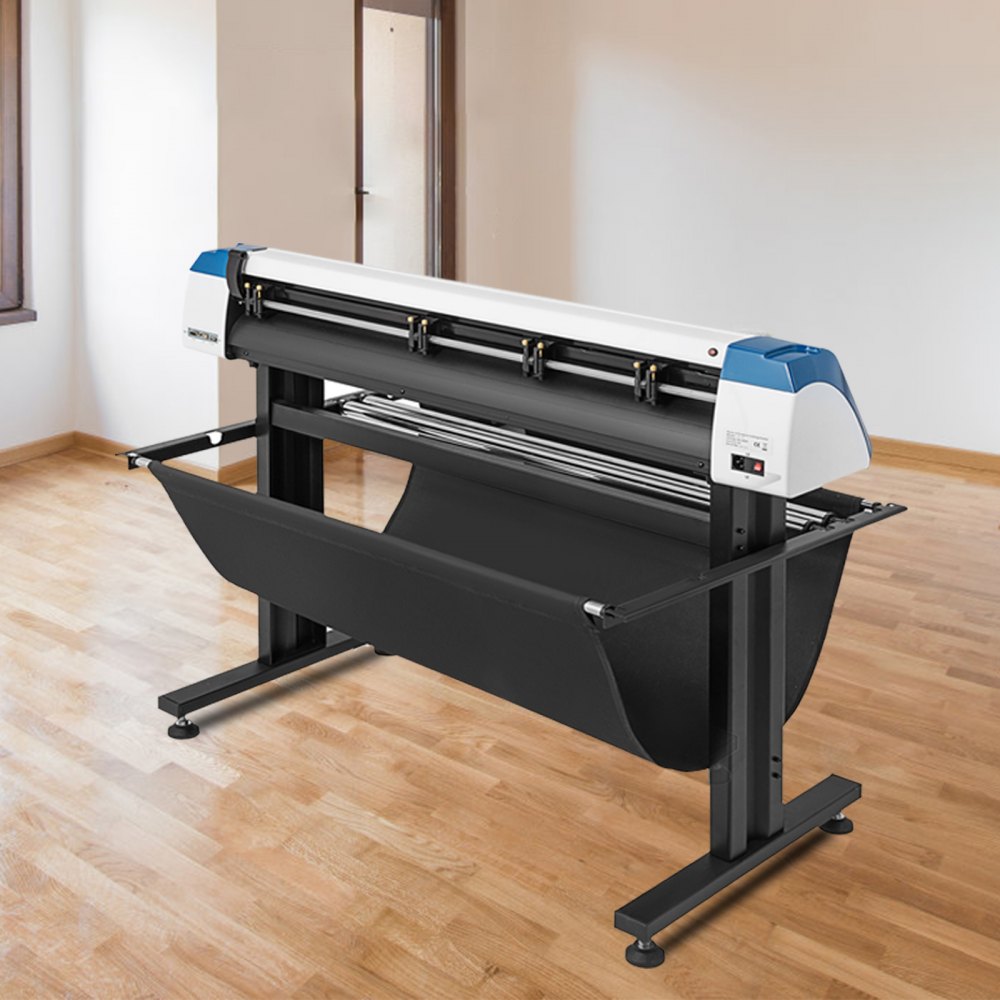

Introducing the VEVOR 53-inch vinyl cutting plotter, a versatile tool tailored for creating high-quality projects with precision This robust machine supports a maximum paper feed of 531 inches (1350 mm) and boasts a cutting width of 496 inches (1260 mm) Featuring an optical eye, it accurately tracks and scans unique material marks, ensuring flawless execution With an easy-to-use LED display, navigating its advanced functionalities becomes simple.

Capable of cutting through various materials such as paper, cardstock, vinyl, and fabric, this plotter allows for the design of detailed and intricate creations.

Features and Benefits:

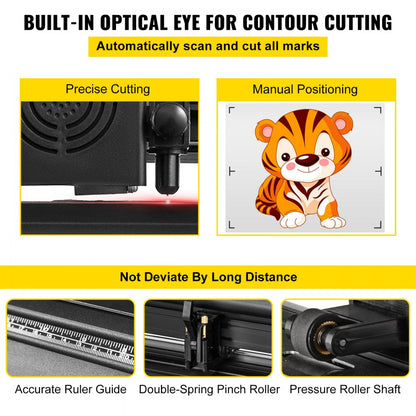

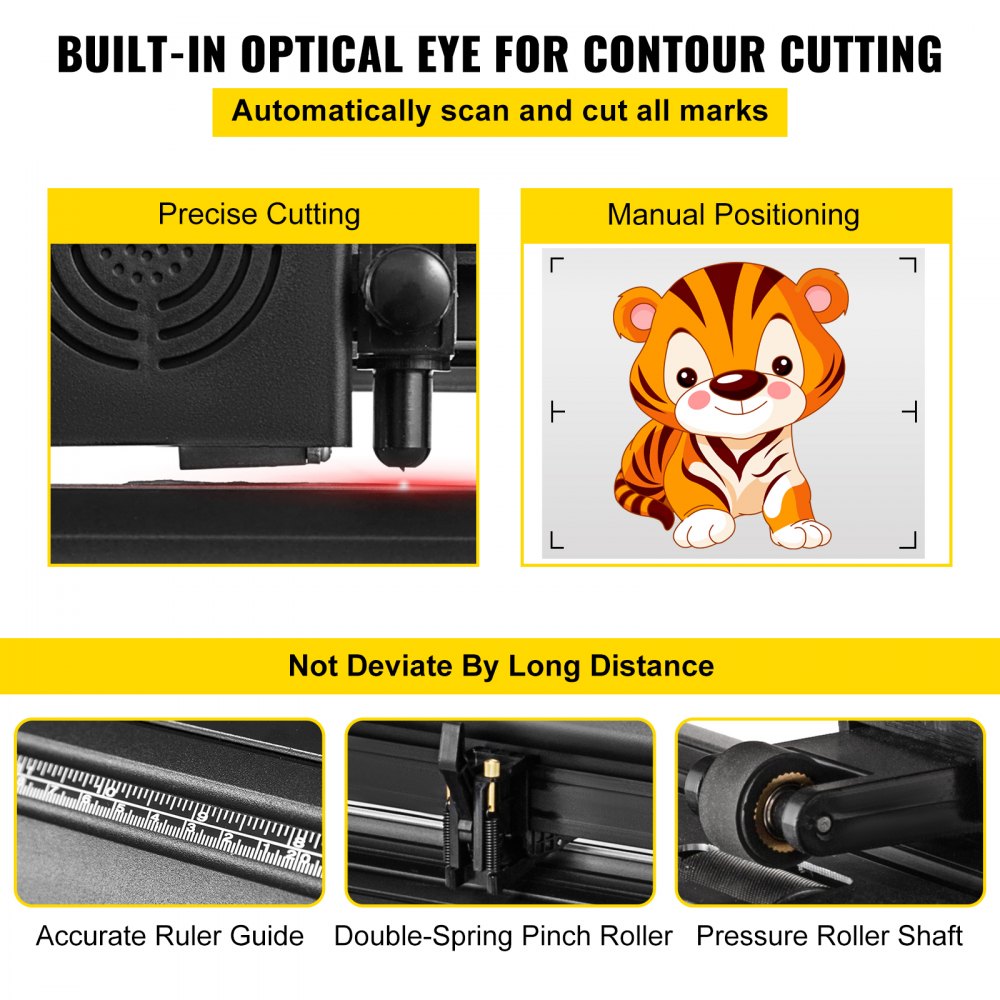

    •Built-In Optical Eye for automatic contour cutting.

    •Supports U-Disk offline operation.

    •User-friendly LED panel with an intuitive digital interface.

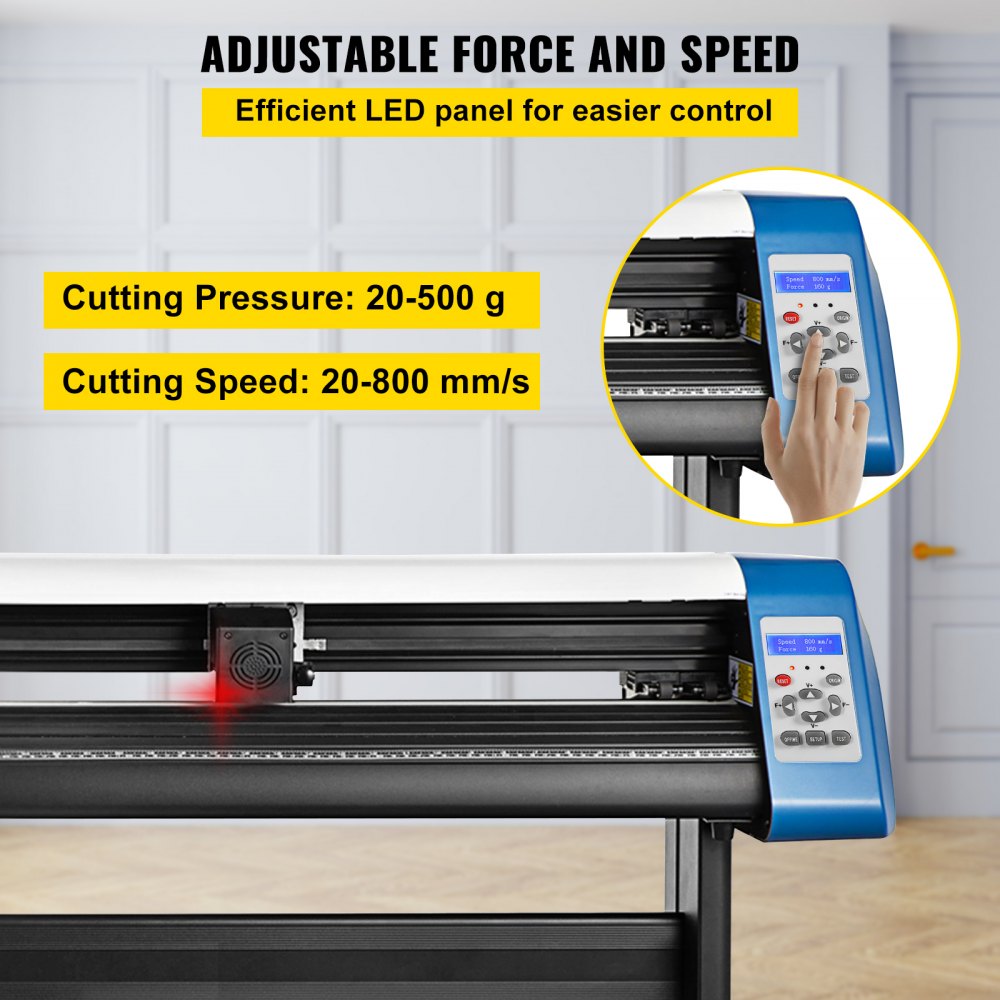

    •Adjustable cutting pressure and speed for flexibility.

    •Heavy-duty floor stand with caster wheels for easy mobility.

    •Capable of cutting various intricate logos, shapes, and letters.

    •Contains three replaceable blades for high performance.

    •Advertising engraving.

    •Heat transfer lettering film.

    •Creating custom decals and signs.

    •Professional vinyl cutting projects.

Specifications:

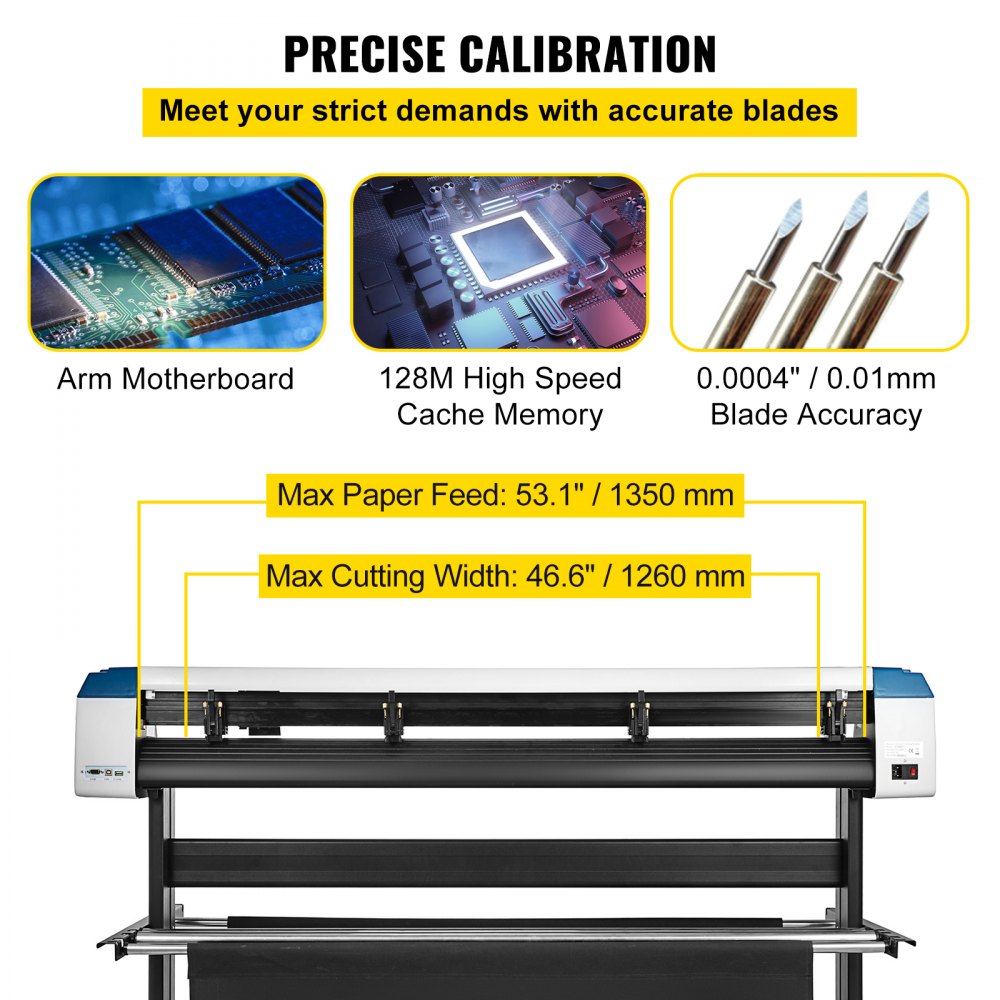

 Max Paper Feed 53.1 in / 1350 mm
 Max Cutter Width 49.6 in / 1260 mm
 Voltage 110 V
 Cutting Accuracy +/- 0.0004 in / 0.01 mm
 Temperature 5 - 35℃
 Relative Humidity 30% - 50%
 Driving Method Stepper Motor
 Positioning Automatic
 Carriage Casting Pressure Carriage
 Fill Light LED Strip Light
 Motherboard ARM

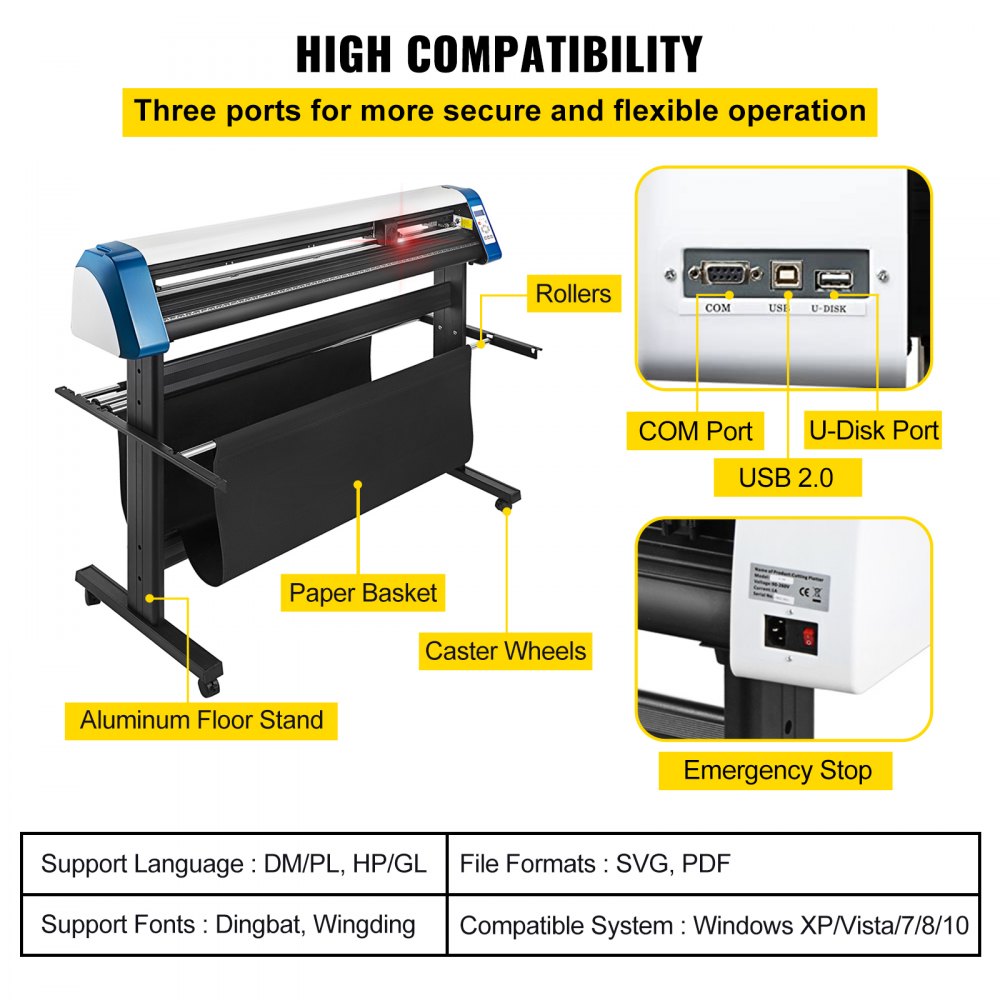

 Interface Serial Port & USB & U-Disk
 Language DM/PL, HP/GL
 System Windows XP/Vista/7/8/10
 Software Signmaster
 Cutter Pressure 20 - 500 g
 Cutting Speed 20 - 800 mm/s
 Number of Pinch Rollers 4
 Memory 128 M

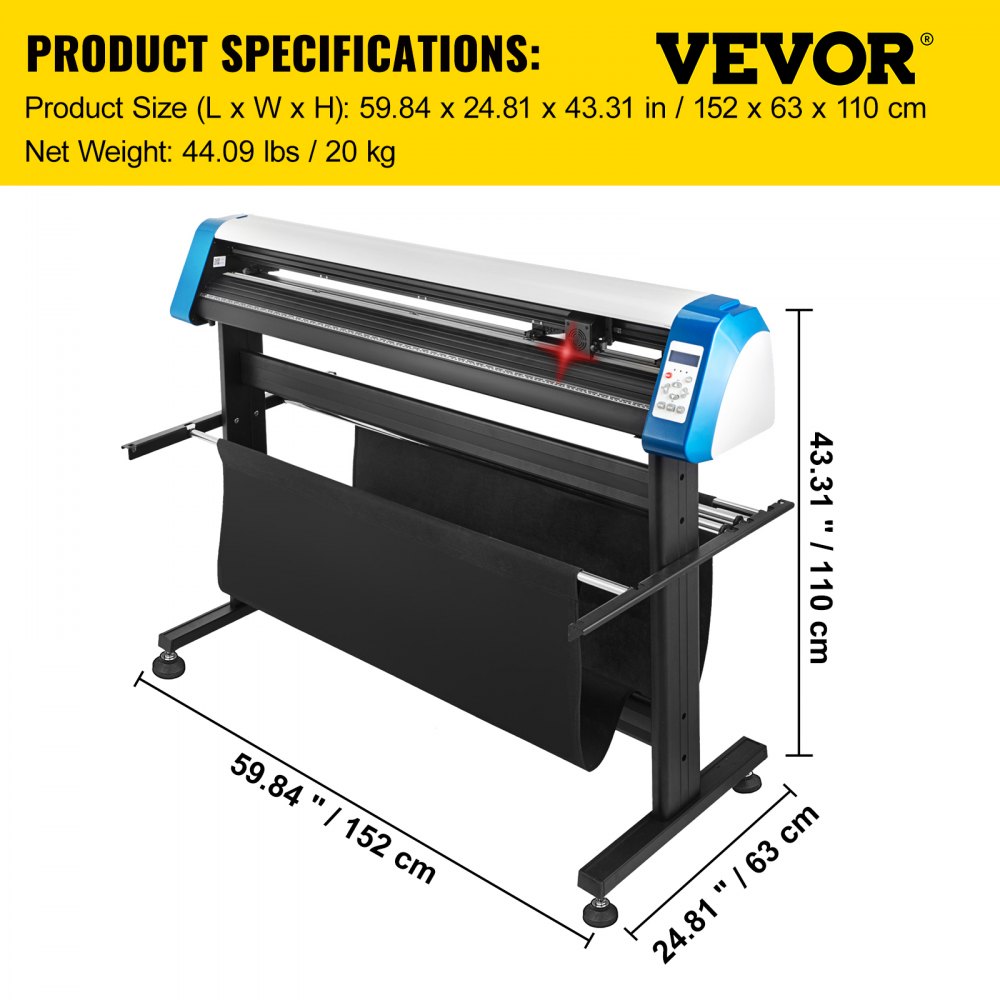

 Product Size (L x W x H) 59.84 x 24.81 x 43.31 in / 152 x 63 x 110 cm
