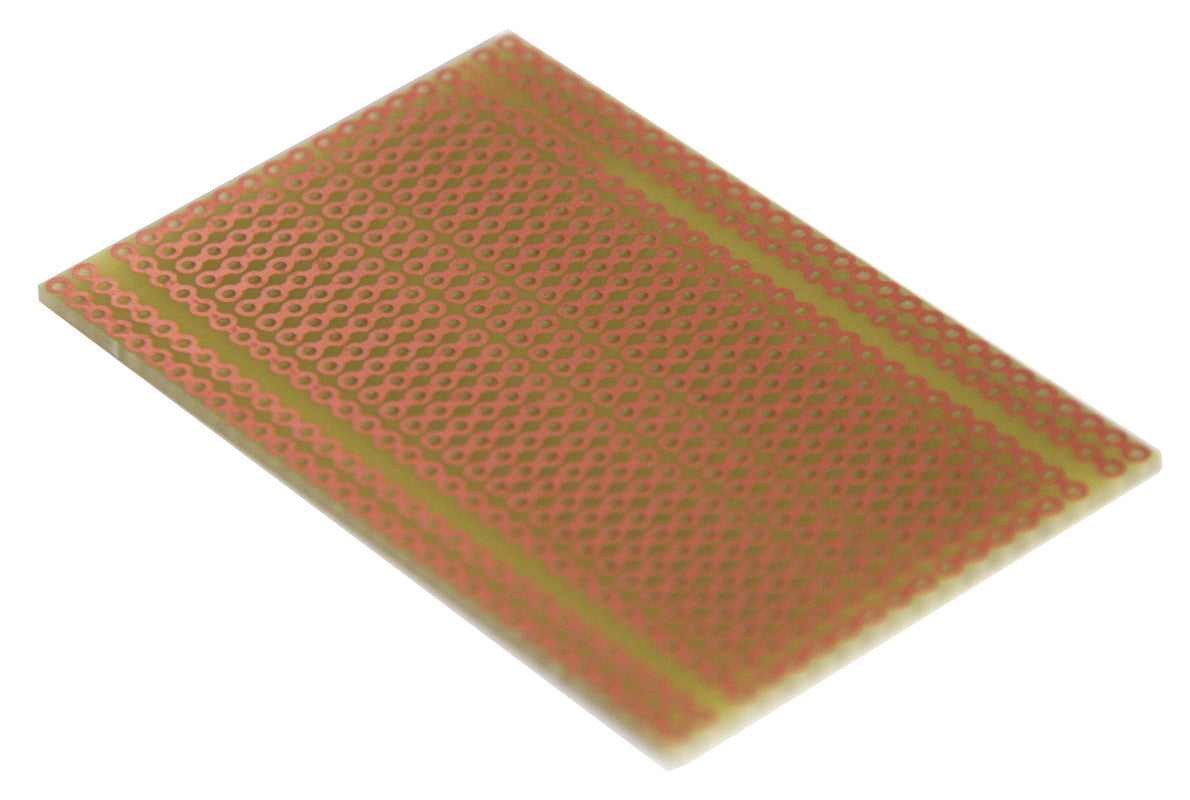

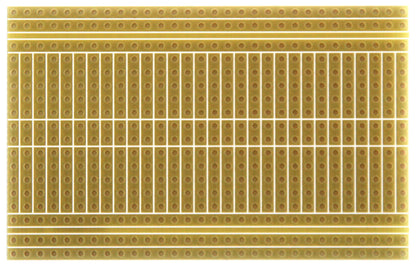

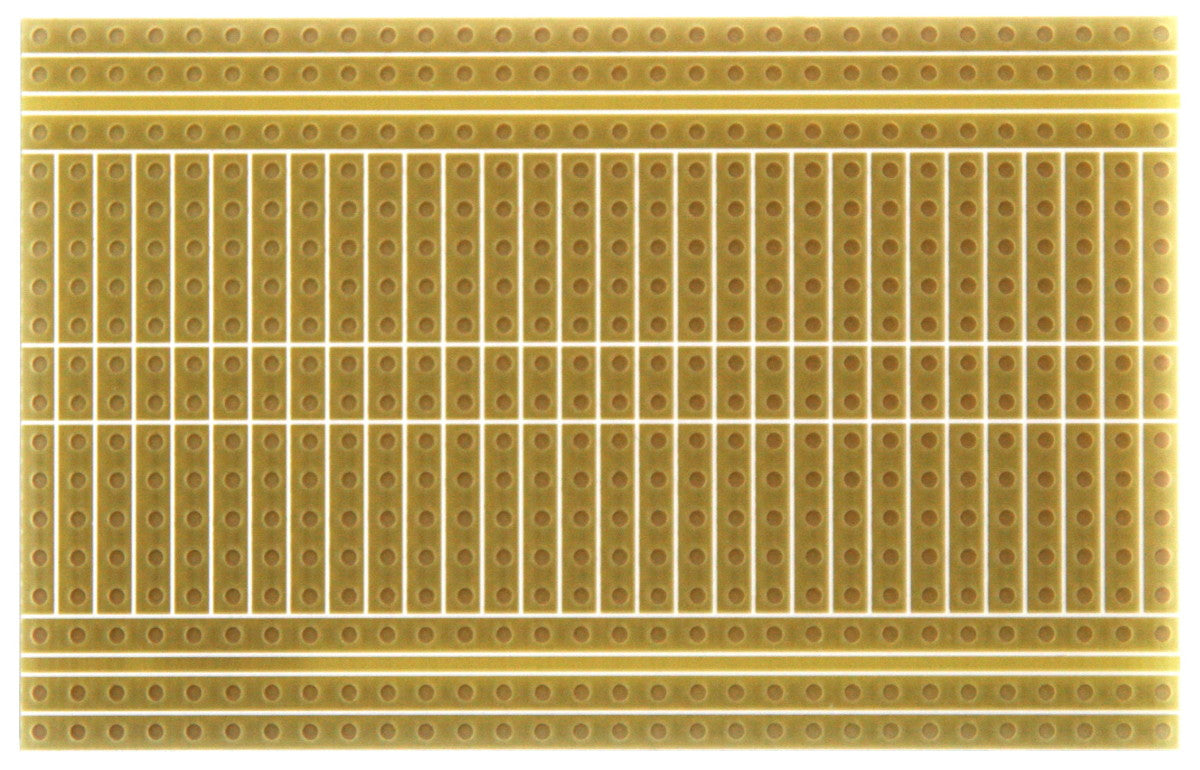

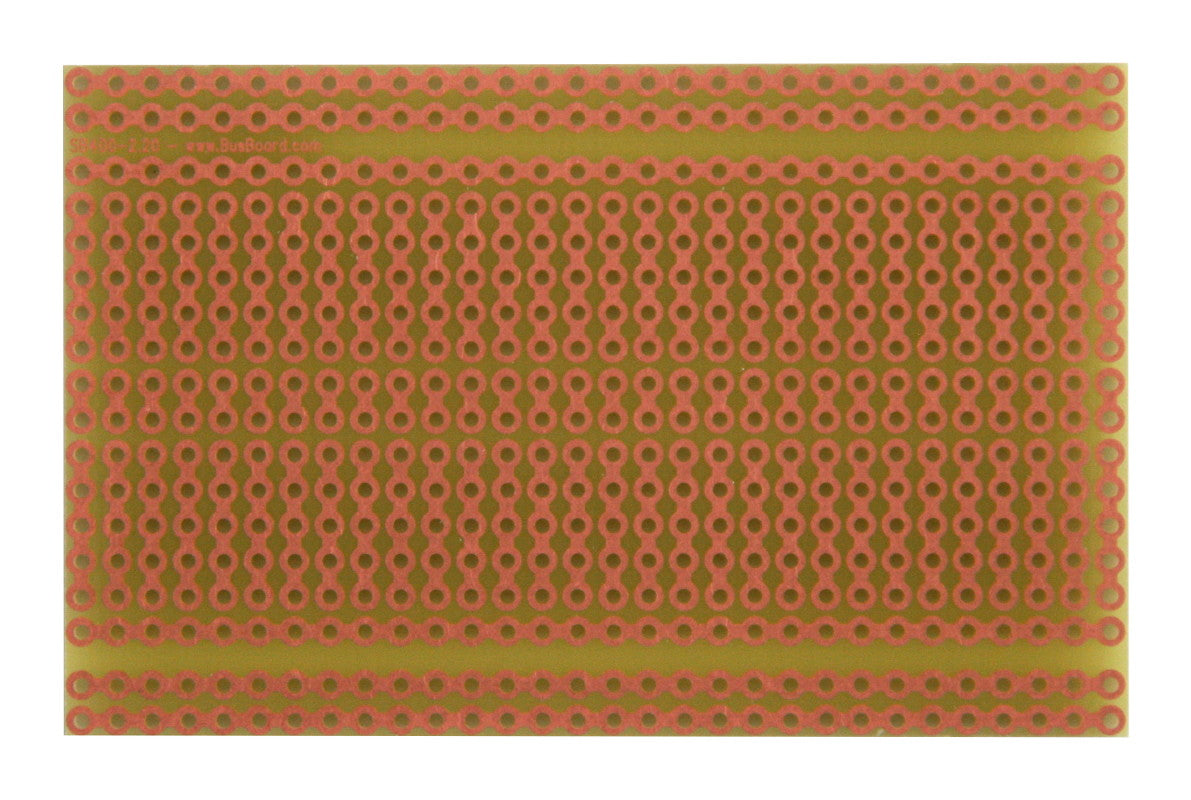

SB400 Solderable PCB BreadBoard

Description:

The SB400 Solderable PCB BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout The SB400 has the same pattern and spacing as a standard 400 connection point BB400 solderless plug-in breadboard It has a standard 5-hole strip for each IC pin, just like solderless breadboards plus 4 power rails However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts.

The SB400 has four power rails like solderless breadboards, plus two bonus rails for power or signals There are bonus two-hole pads along the centerline allowing DIL (dual in-line) headers to be used BPS prototyping boards use high-quality FR4 glass epoxy PCBs for long life, with an anti-tarnish protective coating for easy soldering BPS boards are lead-free and RoHS compatible.

Features and Benefits:

•Same pattern as a standard 400 connection point BB400 solderless plug-in breadboard..

•Single-sided high-quality FR4 glass-epoxy circuit board..

•1oz/ft2 copper with an anti-tarnish coating for easy soldering..

•Lead free and RoHS compatible..

•540 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers..

•3.00 x 1.90 in (76.2 x 48.3mm), 1/16" thick (1.6mm).
