Home / DDR4 SODIMM Socket Vertical Standard Type SO DIMM DDR4 Socket Vertical Standard Type, 260 Pin
1 2

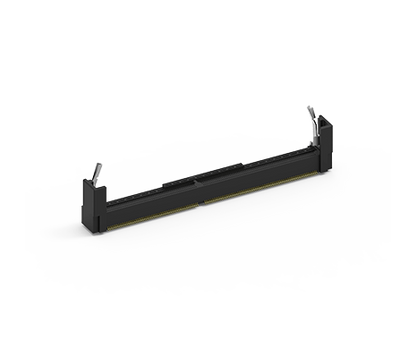

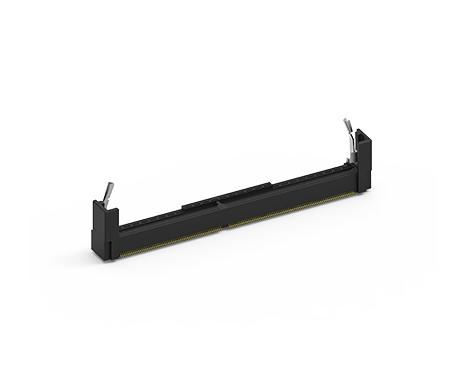

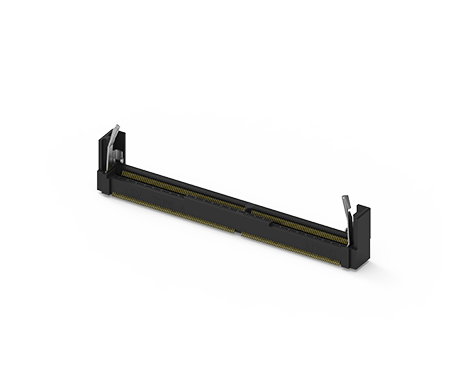

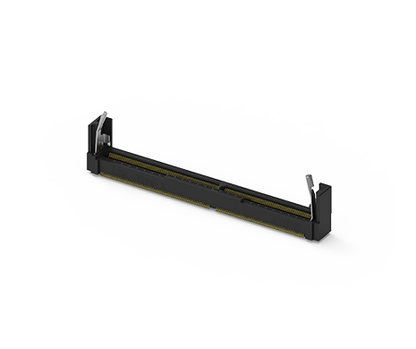

DDR4 SODIMM Socket Vertical Standard Type SO DIMM DDR4 Socket Vertical Standard Type, 260 Pin

DDR4 SODIMM Socket Vertical Standard Type SO DIMM DDR4 Socket Vertical Standard Type, 260 Pin

SKU: 124B-150A02 Download PDF

Now $209.00
BEFORE   Now $209.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

ATTEND's DDR4 SODIMM is a compact yet powerful memory module designed for laptops and space-constrained devices Utilizing DDR4 technology, it delivers faster data transfer speeds and enhanced performance ATTEND offers a diverse range of DDR4 SODIMM modules with standard and reverse key positions, GF gold thickness option, and heights of 40 mm, 52 mm, 80 mm, and 92 mm With lower voltage consumption for energy efficiency, its robust design ensures stable system operation.

It represents the optimal choice for modern computing, delivering exceptional performance and reliability.

Features and Benefits:

    •Compact and powerful: perfect for laptops and space-limited devices.

    •Enhanced performance: utilizes DDR4 technology for faster data transfer and higher performance.

    •Energy efficient: lower voltage design for energy savings.

    •Reliable operation: ensures stable and efficient system performance.

    •Consumer electronics.

    •Networking and telecommunications.

    •Information technology.

    •Instrumentation and control.

    •Healthcare.

    •Automotive.

    •Industrial automation.

    •Education.

    •Entertainment and gaming.

Specifications:

 Current Rating 0.5A per pin
 Voltage Rating 25V AC/DC
 Contact Resistance 55mΩ
 Insulation Resistance 500MΩ
 Dielectric Withstanding Voltage 300VAC
 Durability 25 Cycle
 Insertion Force 30N max.
 Extraction Force 30N max.
 Operating temperature range -55℃~+85℃
 Storage temperature range -55℃~+85℃
 Recommended IR Reflow Temperature 260℃
