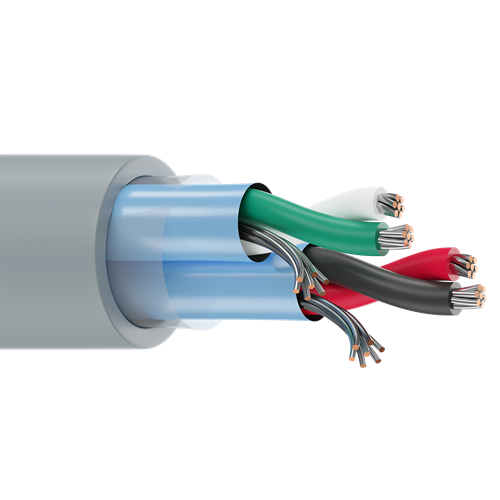

Description:
• 20 AWG stranded (7x28) TC conductors, semi-rigid PVC insulation, twisted pairs, individually shielded w/Beldfoil® (100% coverage), 22 AWG stranded TC drain wire, overall PVC jacket.
Insulation:
• Material: S-R PVC - Semi-Rigid Polyvinyl Chloride
• Wall Thickness (mm): 0.279
Inner Shield Drain Wire AWG:
• AWG: 22
• Stranding: 19x34
• Material: TC - Tinned Copper
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 1.0414
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 79.922 Kg/Km
• Max. Recommended Pulling Tension: 320.270 N
• Min. Bend Radius/Minor Axis: 76.200 mm
Electrical Characteristics (Overall):
• Nom. Inductance (μH/m): 0.558
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 30.5133
• Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 39.372 Ohm/km
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 3.1 Amps/Conductor @ 25°C
| technical specification: | |
| awg | 20 |
| # pairs | 2 |
| stranding | 7x28 |
| no. of conductors | 4 |
| conductor material | tinned copper |
| outer shield - material | - |
| overall cable- nominal dia. (mm) | 7.620 |
| belden cable part number | 9402 |
