ATL92 Insulation Test Probe & Red Alligator Clip

ATL92 Insulation Test Probe & Red Alligator Clip

SKU: IRT807 Download PDF

Now $540.95
BEFORE   Now $540.95
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

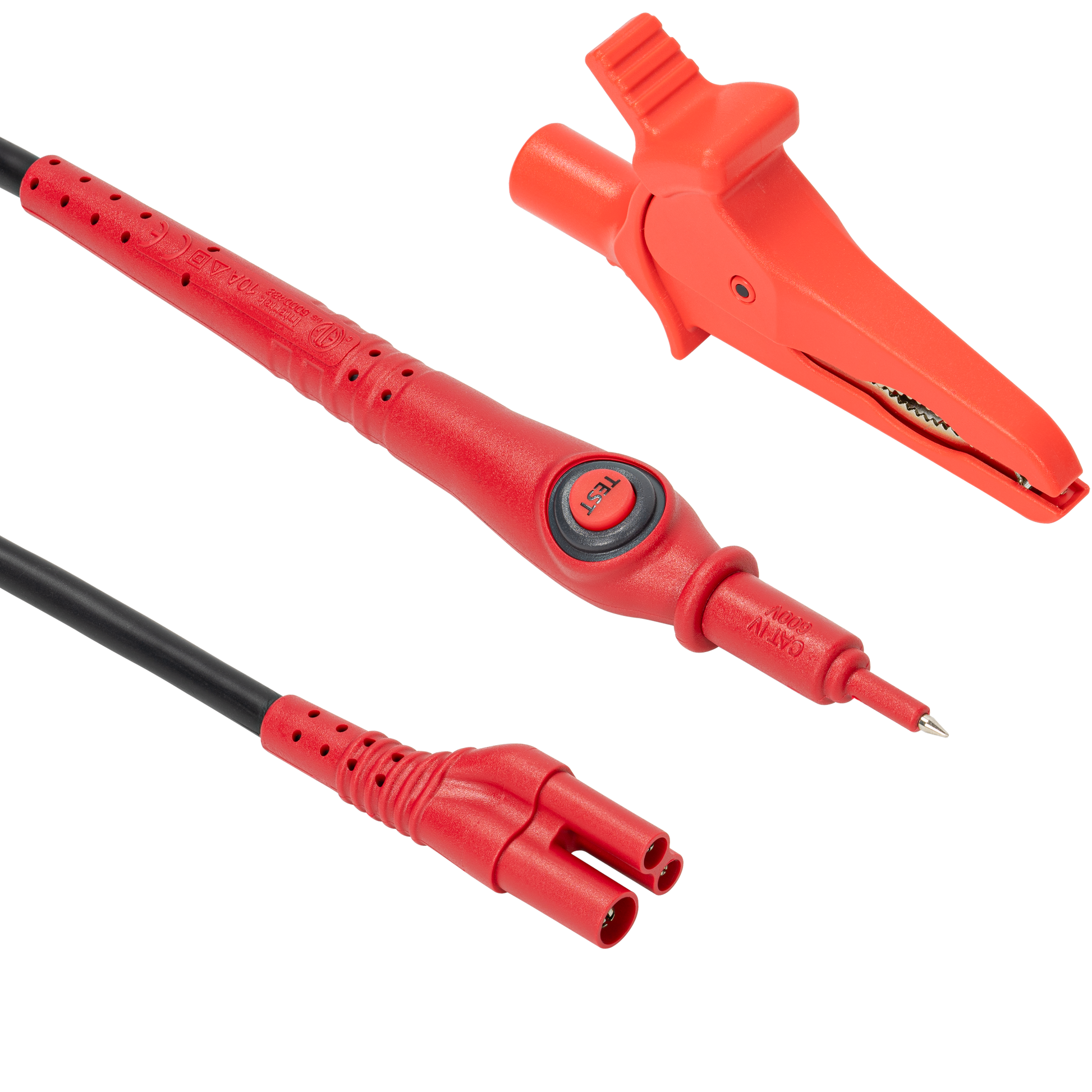

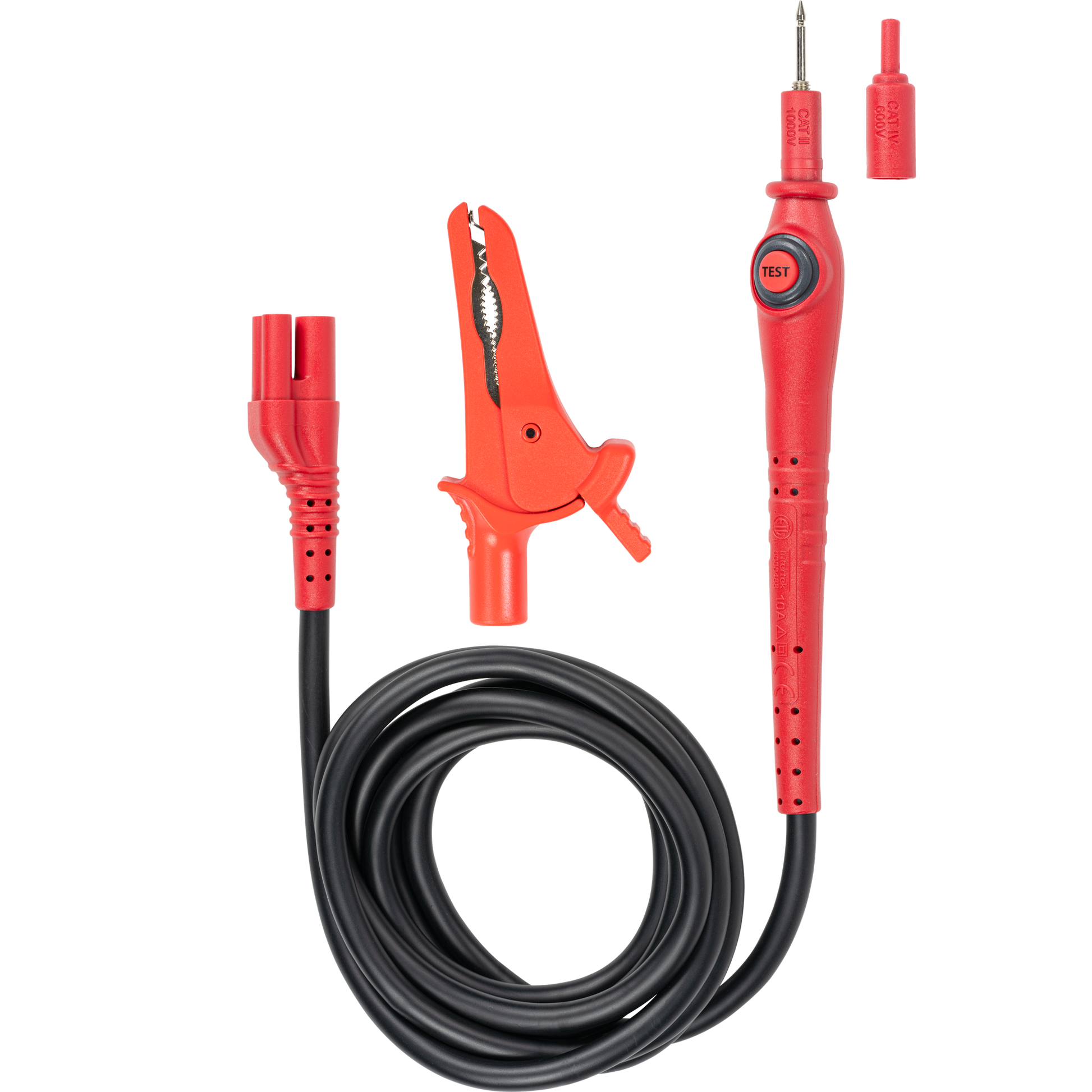

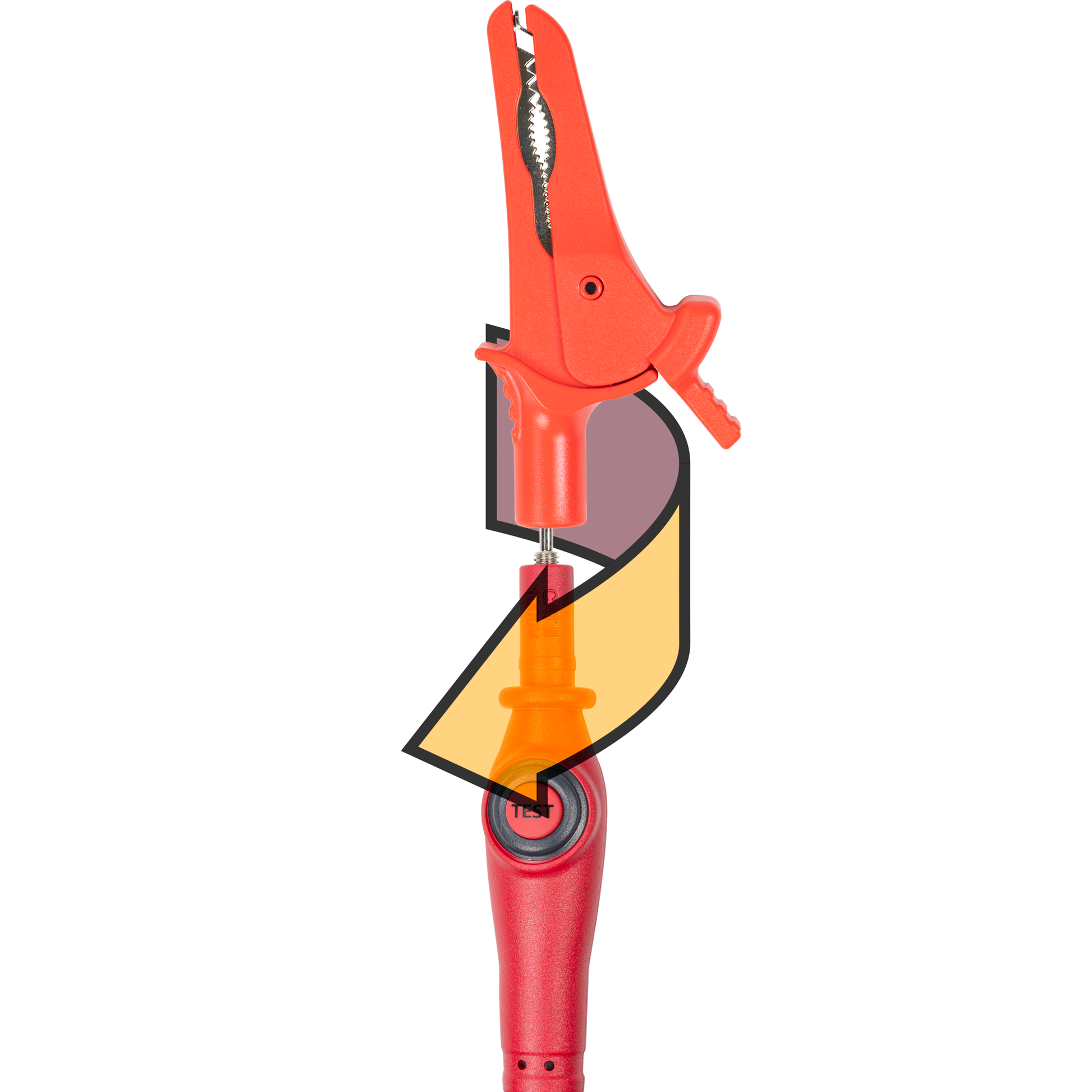

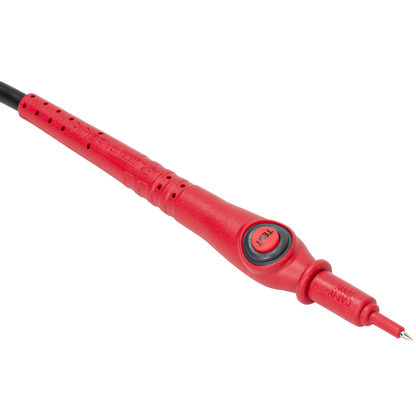

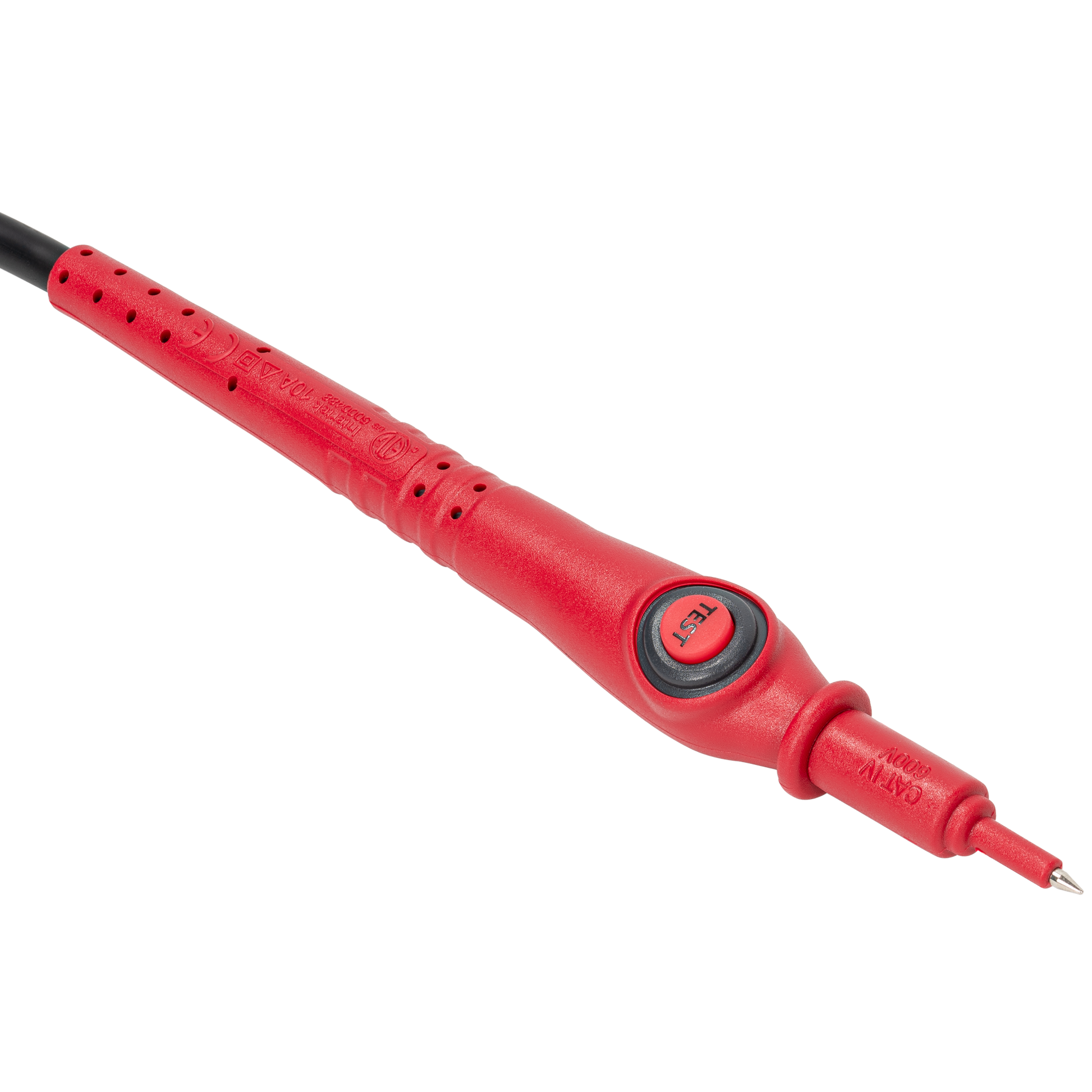

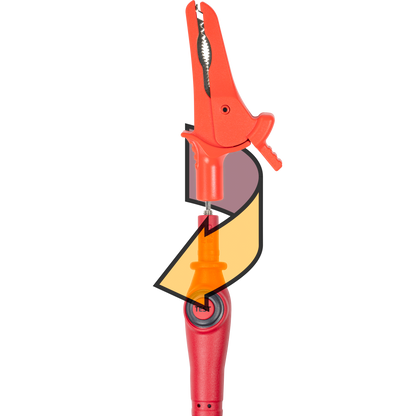

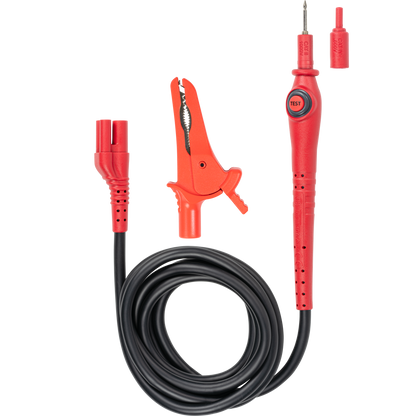

The UEi ATL92 is a specialized test lead designed for our IRT803 and IRT807 Insulation Resistance Tester The lead features a remote probe test button, a 3-plug connection, standard insulation, and an overall length of 675 in It includes a red alligator clip and a removable test lead cap which reduces the exposed length of the lead to allow CAT IV testing These leads are cETLus listed and safety rated at CAT IV 600V 10A / CAT III 1000V (with protective cap shield), and CAT II 1000V 10A (without the protective cap shield).

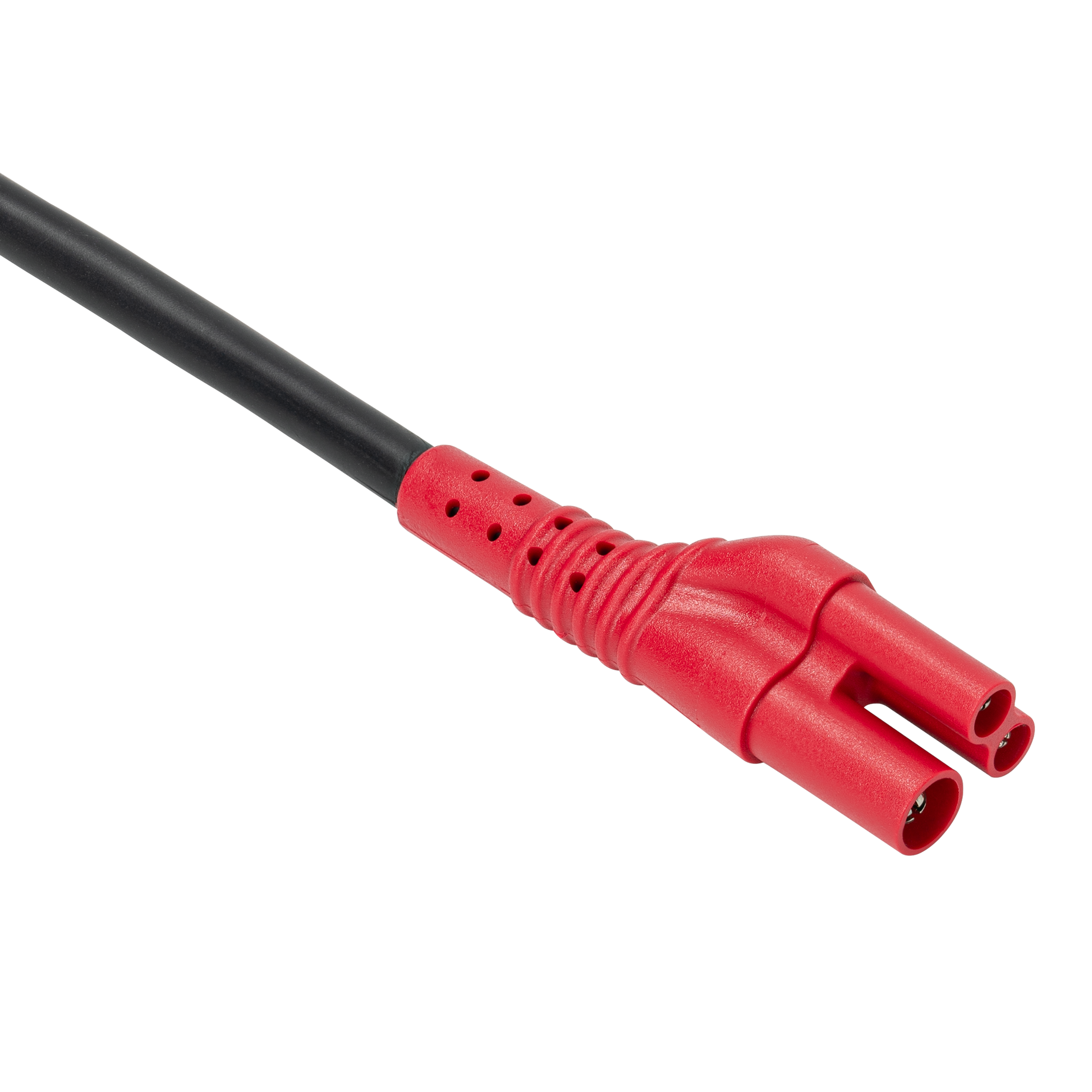

The included alligator clip jaw opens to 30mm The ATL92 uses a specialized 3-plug input jack and is compatible with the following UEi products: IRT803, IRT807.

Features and Benefits:

    •Designed for use with IRT803 and IRT807 Insulation Resistance Tester.

    •Includes remote probe test button.

    •Features a 3-plug connection and standard insulation.

    •Overall length of 67.5 in..

    •Includes a red alligator clip and removable test lead cap.

    •cETLus listed and safety rated at CAT IV 600V 10A / CAT III 1000V.

    •Compatible with IRT803 and IRT807.

Specifications:

 Length 67.5 in.
 Safety Rating CAT IV 600V / CAT III 1000V 10A
 Alligator Clip Jaw Opening 30mm
 Warranty 1-Year limited
 ETL Listing cETLus
