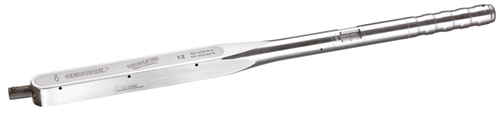

7704340 - Precision Torque Wrench 80-400 Nm, Lightweight Aluminum, DIN ISO Certified
7704340 - Precision Torque Wrench 80-400 Nm, Lightweight Aluminum, DIN ISO Certified
SKU: SKU: 7704340
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience precision and durability with this torque wrench, designed per DIN EN ISO 6789-2:2017 Type II Class A standards It comes with a traceable test certificate and offers exceptional accuracy with a maximum permissible deviation of only +/- 3%, surpassing the standard requirement of +/- 4% Crafted from a lightweight yet sturdy aluminum alloy, this tool is both workshop-friendly and dependable.
You can access it conveniently from either the front or side, depending on your needs To ensure accurate results, apply force in the center of the handgrip and avoid using extension tubes, except for model DXZ Work with standardized depth gauge fittings as specified in the certificate guidelines, and stick to original GEDORE accessories for optimal performance

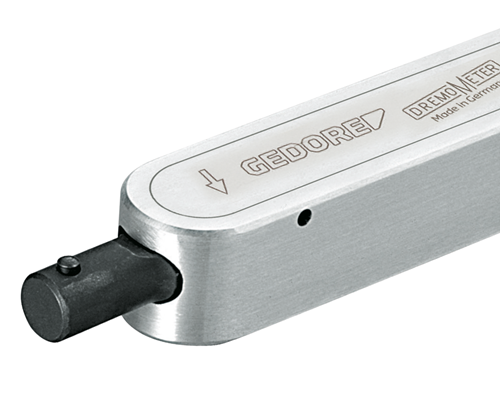

Featuring a wide drive cross-section, this torque wrench efficiently transfers maximum torque with minimal wear, thanks to its cleverly designed lever mechanism.
Constructed from high-quality forged materials in the company's specialized forge, it guarantees reliability even under continuous heavy use, promising longevity and durability
With user-friendly operation for quick and safe torque tightening, the wrench includes an easily accessible adjusting button secured against loss at the handle's end It also comes with a certification that adheres to DIN EN ISO 6789-2:2017, traceable back to national standards through our in-house DAkkS laboratory.
This tool is a must-have for those looking for superior accuracy and longevity in their projects.
Features and Benefits:
•Lightweight yet robust aluminum alloy housing.
•Precision calibrated to a maximum deviation of +/- 3%.
•Access from the front or side depending on application.
•Easy operation for fast torque tightening.
•Traceable test certificate compliant with DIN EN ISO 6789-2:2017.
•Long lifespan due to reduced wear and robust construction.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.

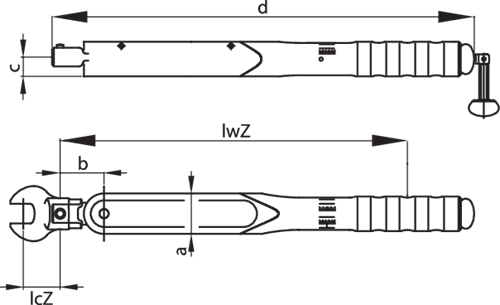

Specifications:
| Total width [mm] | 35 mm |
| Total height [mm] | 30 mm |
| Total length [mm] | 645 mm |
| Distance between housing and centre of drive [mm] | 16 mm |
| Drive type/drive | Drive pin |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Receptacle width [mm] | 16 mm |
| Torque (max.) [lbf·ft] | 300 lbf·ft |
| Torque (min.) [lbf·ft] | 60 lbf·ft |
| Torque (max.) [Nm] | 400 Nm |
| Torque (min.) [Nm] | 80 Nm |
| Torque wrench type | CZ |
| Fixed setting | No |
| Lever length drive side [mm] | 38 mm |
| Lever length handle side [mm] | 607 mm |
| Calibration length | 567 mm |
| Width of head 1 [mm] | 35.0 mm |
| Head height 1 [mm] | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Safety | Locking pin |
| Graduation [lbf·ft] | 5 lbf·ft |
| Scale division [Nm] | 5 Nm |
| Depth gauge [metric] | 32.0 mm |
