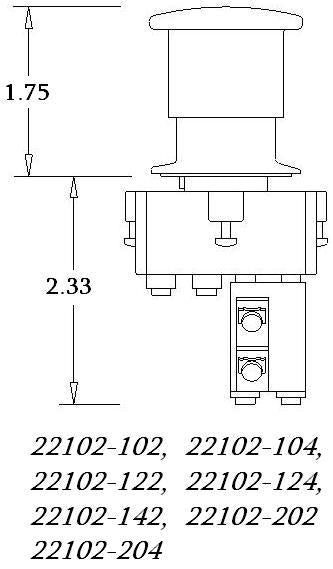

22102-124 22.5 mm Operators

22102-124 22.5 mm Operators

SKU: 22102124 Download PDF

Now $290.64
BEFORE   Now $290.64
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

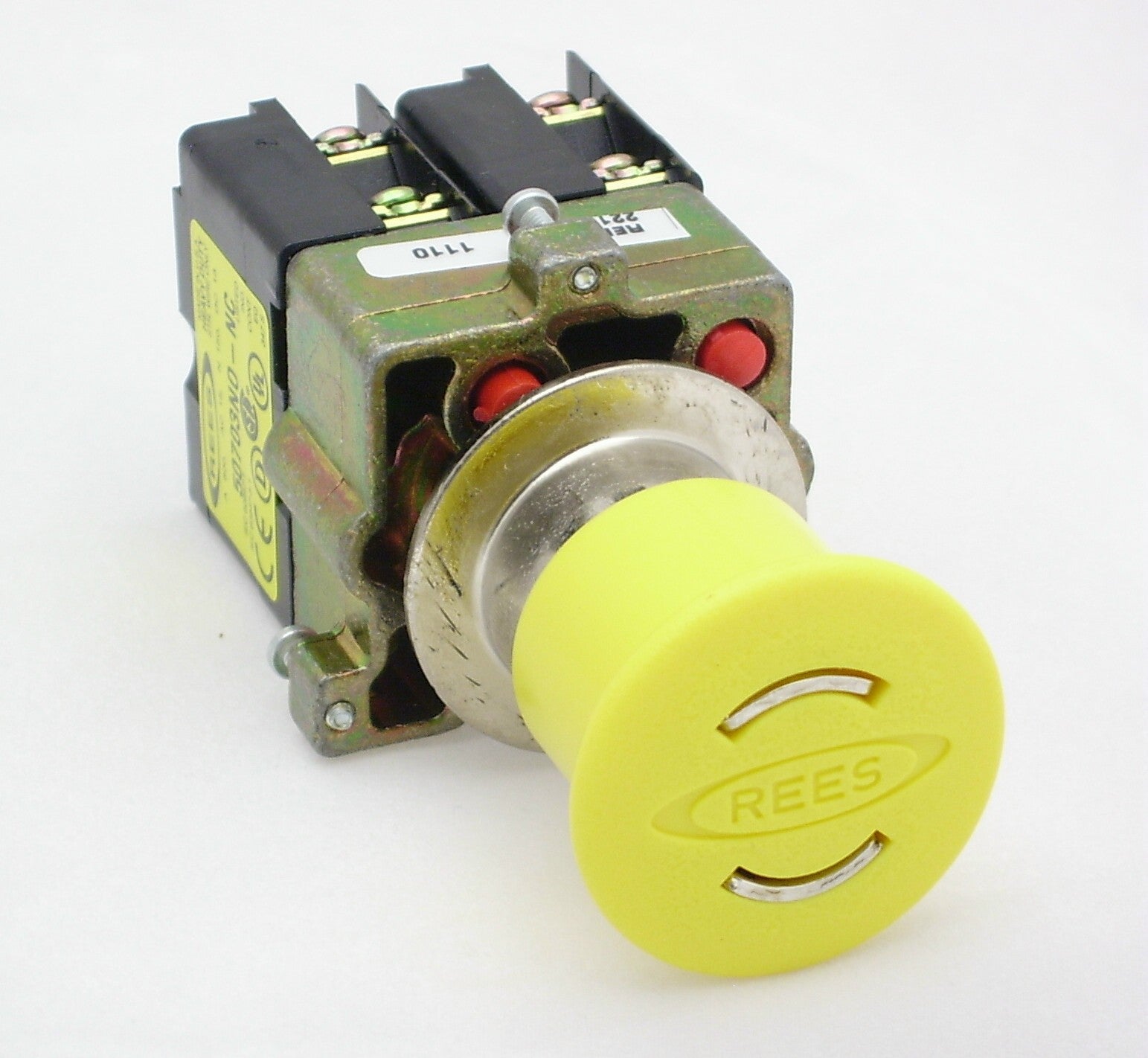

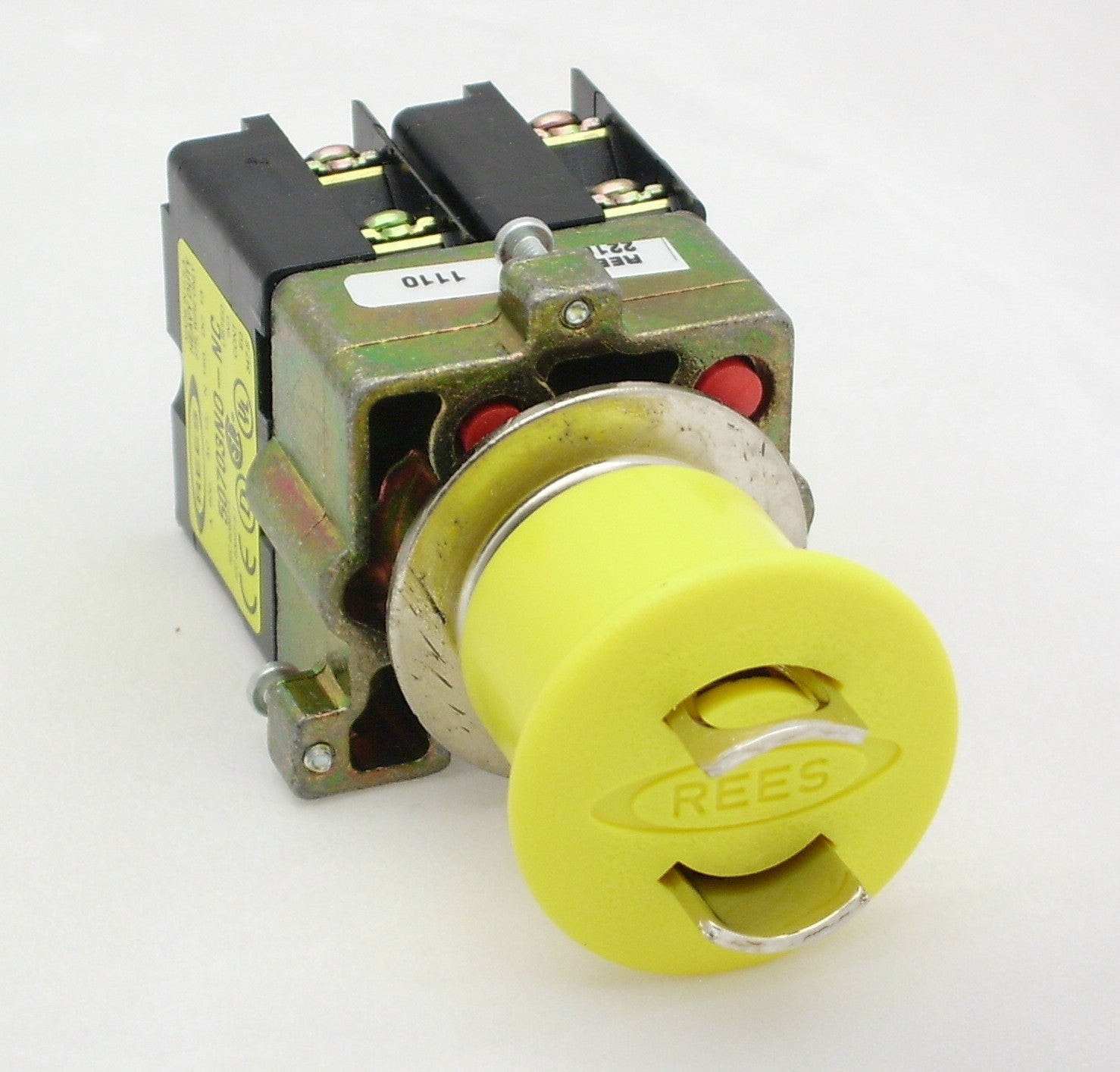

These 225 mm Operators are available in Lockable, Push-Pull, and Momentary versions They are hand-operated control circuit devices rated ‘Heavy Duty’ for use with electromagnetic equipment The body is constructed from die-cast zinc, and the mushroom-shaped plungers are made from DuPont Delrin 100ST Acetal, which enhances impact resistance and features solid colors throughout Designed with Nema 12/13 and IP 65 ratings, these operators are equipped with gold-plated contacts and each can accommodate up to three tiers.

Features and Benefits:

    •Available in Lockable, Push-Pull, and Momentary versions.

    •Heavy Duty rating for use with electromagnetic equipment.

    •Body made from durable die-cast zinc.

    •Mushroom shaped plungers molded from DuPont Delrin 100ST Acetal for improved impact resistance.

    •Solid colors throughout plungers.

    •Nema 12/13 rated.

    •IP 65 rating for protection against dust and water.

    •Gold plated contacts.

    •Each operator accepts up to three tiers.

Specifications:

 Body Material: Die-cast zinc
 Plunger Material: DuPont Delrin 100ST Acetal
 Nema Rating: Nema 12/13
 IP Rating: IP 65
 Contact Type: Gold plated
 Tier Capacity: Up to three tiers
