Description

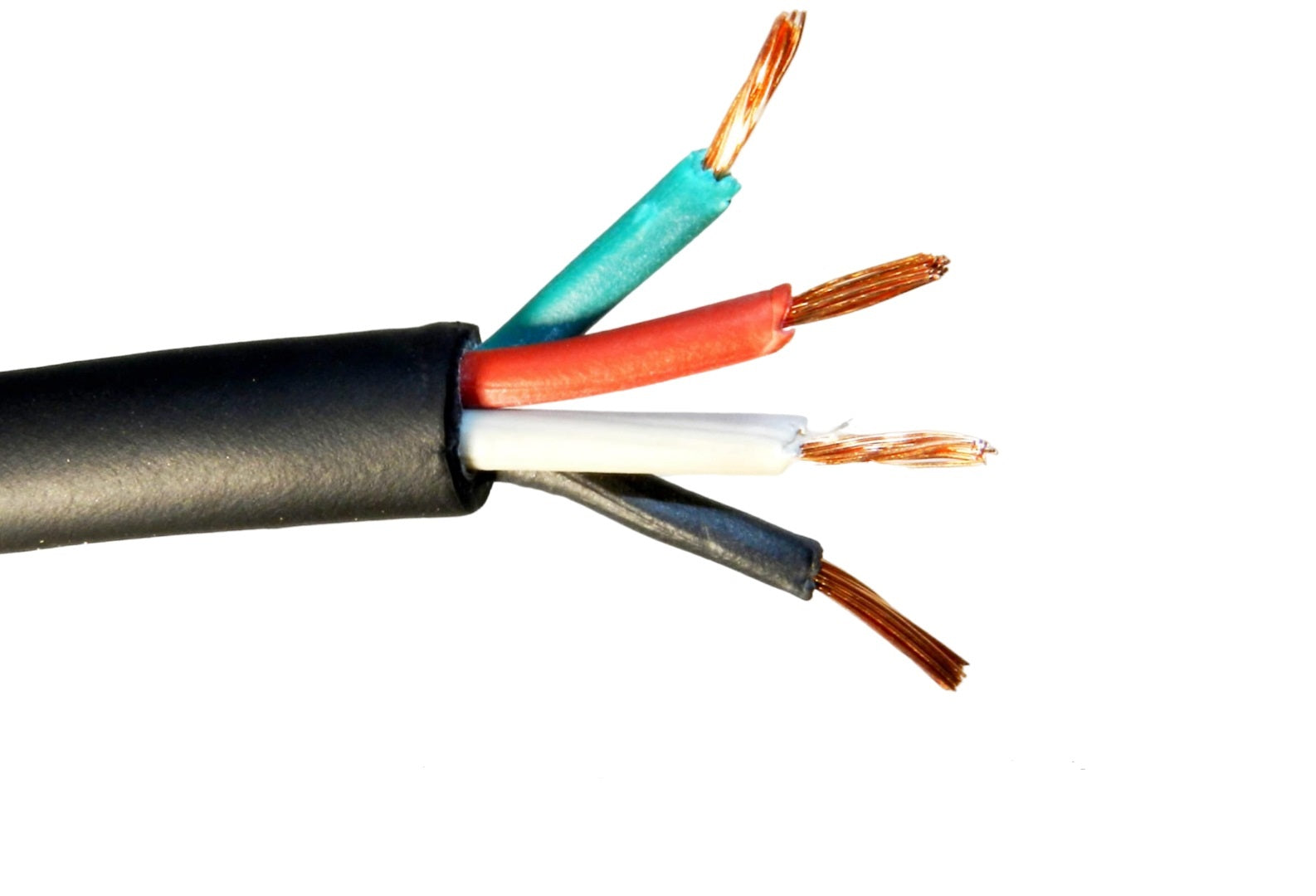

• 2/4 SOOW UL CSA Cable Highlights 2 AWG 4 Conductors. 2/4 SO Cord can transmit 80 amps of Current. It offers an excellent cold bend radius so if the cable is exposed to extreme cold, it still offers significant flexibility.
Applications
• Wiring remote Control circuits for push-button stations, fire alarm controls, temperature control systems.
• Hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.
Conductor
• 18 AWG - 2 AWG Fully annealed stranded bare copper Class K stranding per ASTM B-174
Insulation
• Premium-grade, Color-Coded Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket
• Black Chlorinated Polyethylene (CPE)
Tempeature Range
• -40°C and 90°C
Standards
• UL Subject 62 listed
• CSA Standard 22.2 No. 49
• MSHA Approved
• RoHS Compliant
• Article 400 of the NEC
Features
• Oil, water, moisture and sunlight resistant
• Good tensile strength, elongation and aging characteristics
• Excellent flexibility
• UL Listed and CSA Certified for indoor and outdoor use
| 2/4 SOOW UL CSA Specifications: | |
| Number of Conductors in Cable | 4 |
| Nominal Insulation Thickness (Inches) | 0.060 |
| Size AWG | 2 |
| Stranding | 133/23 |
| Diameter Complete Cable (O.D.) (Inches) | 1.460 |
| Weight Per 1000ft Total (Lbs.) | 1699 |
| Allowable Ampacity 90C (Amps) | 80 |
