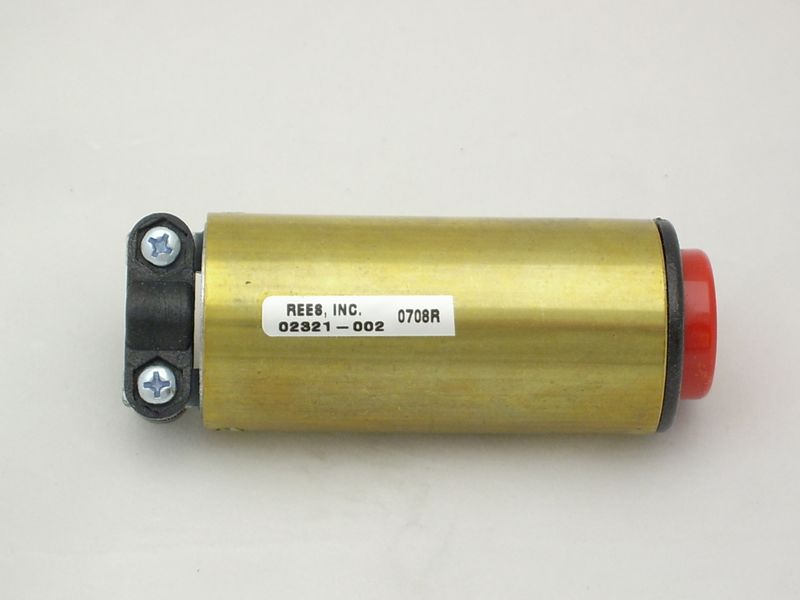

02321-002 Cylindrical Push Button
02321-002 Cylindrical Push Button
SKU: SKU: 02321002
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
The following switch is a hand operated, control circuit device, rated ‘Standard Duty’ The red plastic plunger is made from Lexan and the outer shell is brass This switch includes a cord grip and is often used as a circuit start switch.
Features and Benefits:
•Slow Make – Slow Break Momentary Contact.
•Nema 12/13, IP 65.
•The mechanical life of the switch is 500,000 operations.
•Includes a cord grip and is often used as a circuit start switch.
Specifications:
| Plunger Size Material: | 1.00" Plastic |
| Plunger Color: | Red |
| Outer Shell O.D./Material: | 1.38" Brass |
| Cord Grip: | Yes |
| Contact Arrangement: | #66 NC |
| Approx. Operating Force: | 1.0 lb |
| CSA: | Yes |
| Old Catalog Number: | 2321 |
