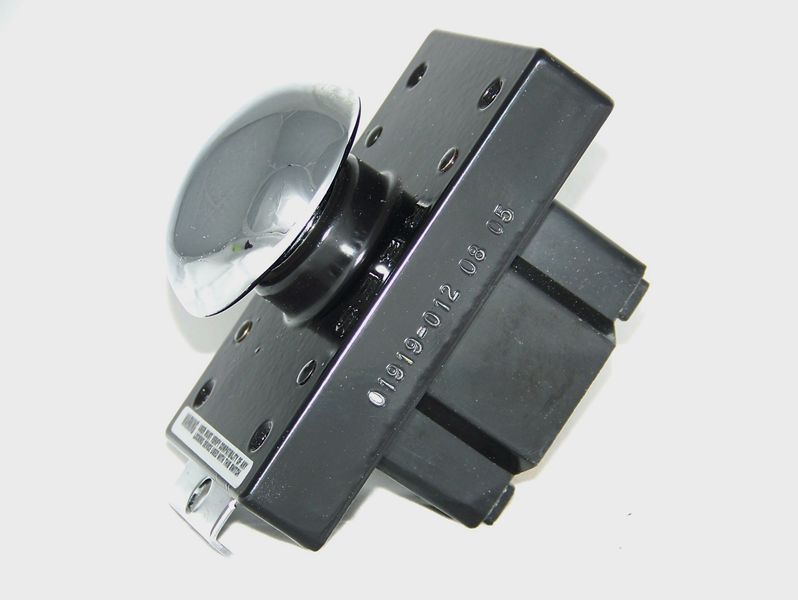

01919-012 2.25 inch Mushroom Plunger with Spring Latch

Description:

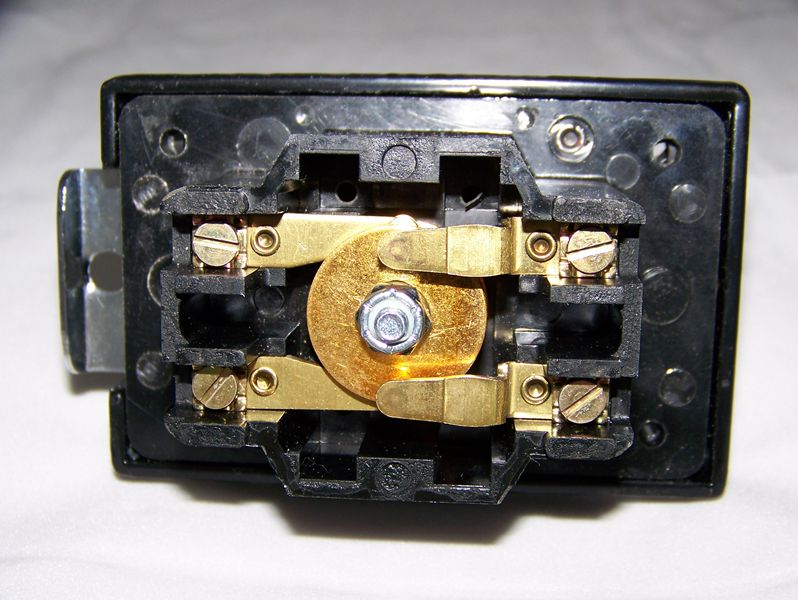

The 225 inch Mushroom Plunger with Spring Latch is a hand operated, spring latchable control circuit device, rated ‘Heavy Duty’ and designed for electromagnetic equipment It features a black powder coat painted cover and a chrome plated mushroom plunger head made from die-cast zinc The device boasts gold plated contacts to eliminate high resistance tarnishing It includes a plated steel latch plate equipped with a 0.

31” hole for padlock insertion, complying with Nema 12/13 and IP 65 ratings Each captive terminal can accommodate (2) #14 wiring.

Features and Benefits:

•Hand operated, spring latchable design.

•Heavy duty rating for electromagnetic equipment.

•Black powder coat painted cover.

•Chrome plated mushroom plunger head made from die-cast zinc.

•Gold plated contacts to prevent tarnishing.

•Plated steel latch plate with a 0.31” padlock hole.

•Nema 12/13 and IP 65 rated for durability.

•Each captive terminal accepts (2) #14 wire.

Specifications:
