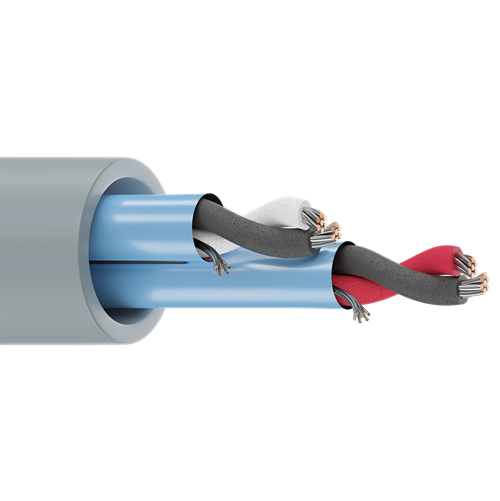

Belden 9729 24 AWG 2 Pair 7x32 Stranding Tinned Copper 300 V Digital Audio Cable

Description:

Computer EIA RS-232/422, Digital Audio Cable, 2-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene insulation, individually Beldfoil shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.061 in (1.5 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.048 in (1.2 mm)
• Nom. Diameter: 0.266 in (6.76 mm)
• Overall Cable Diameter (Nominal): 0.266 in (6.76 mm)

Standards:

• Voltage Rating: 300 V
• Impedance: Nominal characteristic impedance of 100 Ohm.
• Temperature Rating: Can operate in a temperature range of -20°C to +80°C.

Applications:

• RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring
