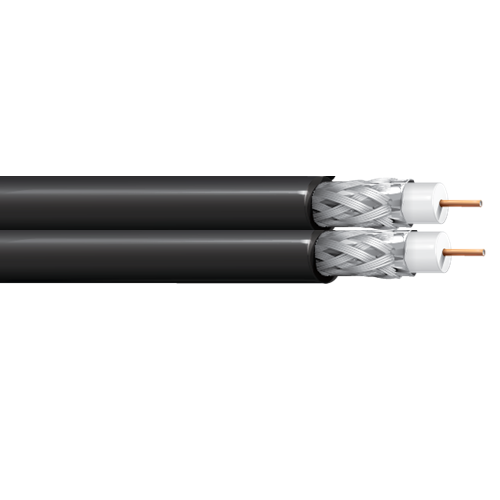

Belden 9077 18 AWG 1 Conductor Solid Dual RG-6 CATV Video 75 Ohm Coax Cable

Belden 9077 18 AWG 1 Conductor Solid Dual RG-6 CATV Video 75 Ohm Coax Cable

SKU: NES9077   Download PDF

Select a gauge:
  • Belden 9077 18 AWG 1 Conductor Solid Dual RG-6 CATV Video 75 Ohm Coax Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.50 /FT   Web pricing policy
BEFORE   Now $0.50 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9077 18 AWG 1 Conductor Solid Dual RG-6 CATV Video 75 Ohm Coax Cable

Description:

CATV, Series 6, 18 AWG solid 0.040" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond II, aluminum braid shield (60% coverage), CM PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.18 in
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 60%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.27 x 0.59 in

Specifications:

• Size (AWG): 18
• Conductor Count: 2
• Stranding: Solid
• Nom. Diameter: 0.04 in
• Dual RG Type: 6
• Impedance: 75 Ohm
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9077
