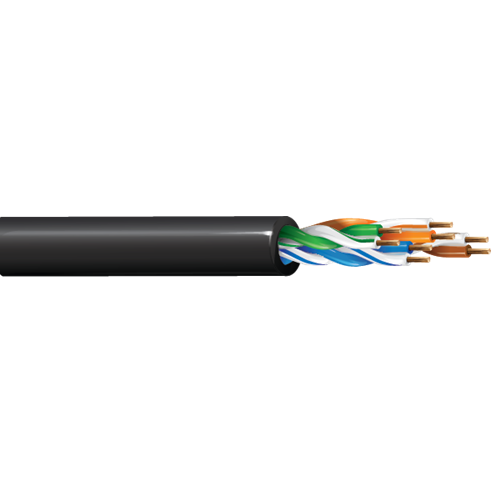

Belden 1304A Cable 24 AWG 4 Pairs Stage Lighting CatSnake Bare Copper Cable

Belden 1304A Cable 24 AWG 4 Pairs Stage Lighting CatSnake Bare Copper Cable

Select gauge from drop-down menu for prices:

Belden 1304A Cable 24 AWG 4 Pairs Stage Lighting CatSnake Bare Copper Cable

Regular price $1,042.50 $695.00 Sale /per Foot

Belden 1304A Cable 24 AWG 4 Pairs Stage Lighting CatSnake Bare Copper Cable

Description:
• 24 AWG Bonded-Pairs stranded (7x32) bare copper conductors, polyolefin insulation, PVC jacket. Sequential marking at two foot intervals.

Insulation:
• Material: PO - Polyolefin
• Dia. (in.): 0.041

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Dia. (in.): 0.250

Usage (Overall):
• Applications: Field Deployable Cat 5e Patch, CobraNet, eSnake, Ethersound, Digital Audio over Ethernet

Mechnical Characteristics (Overall):
• Storage Temperature Range: -30°C To +75°C
• Bulk Cable Weight: 26 lbs/1000 ft.
• Max. Recommended Pulling Tension: 44 lbs.
• Min. Bend Radius/Minor Axis: 2.500 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards & Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 02/20/2006
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes
• Other Specification: NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e

Electrical Characteristics (Overall):
• Nom. Mutual Capacitance (pF/ft): 15
• Maximum Capacitance Unbalance (pF/100 m): 66
• Nominal Velocity of Propagation: 70
• Maximum Delay (ns/100 m): 510.000
• Typical Delay Skew (ns/100 m): 15.000
• Max. Delay Skew (ns/100 m): 25
• Nom. Conductor DCR @ 20°C (Ohm/100 m): 25.000
• Maximum Conductor DCR @ 20°C (Ohm/100 m): 9
• Max. Operating Voltage - UL: 300V RMS
• Maximum DCR Unbalanced @ 20°C (%): 3

Suitability:
• Suitability - Indoor: Yes
• Suitability - Outdoor: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): No

Benefits And Features:
• Belden offers more than 25 variations for DMX / RS-485 applications
• Many of Belden's lighting cables are designed for industrial standards, and their rugged and resistant cable options are suitable for many indoor and outdoor lighting challenges

technical specification:
awg 24
# pair 4
stranding 7x32
no. of conductors 8
conductor material Bare Copper
dia. (in.) 0.024
outer shield - type -
outer shield - material Unshielded
overall cable - nominal dia. (in.) 0.250
belden cable part number 1304A
