Description:

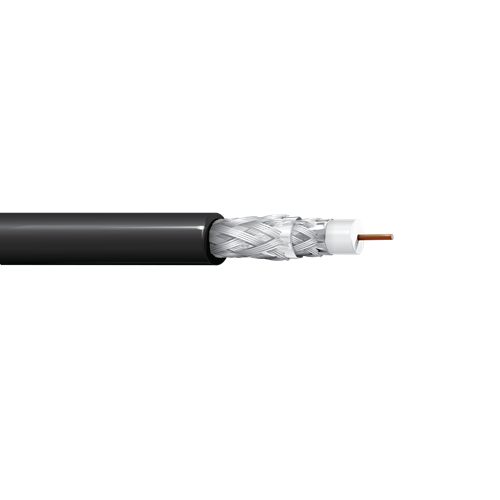

• Series 59, 20 AWG solid .032" bare copper-covered steel conductor, plenum, foam FEP insulation, Duofoil® (100% coverage) + TC braid shield (55% and 50% coverage), FEP jacket.

Insulation:
• Trade Name: Teflon®
• Material: FFEP - Foam Fluorinated Ethylene Propylene
• Dia. (in.): 0.140

Outer Jacket:
• Trade Name: Teflon®
• Material: LS PVC - FEP - Fluorinated Ethylene Propylene

Mechnical Characteristics (Overall):
• Operating Temperature Range: -70°C To +200°C
• Non-UL Temperature Rating: 200°C
• Bulk Cable Weight: 37 lbs/1000 ft.
• Max. Recommended Pulling Tension: 84 lbs.
• Min. Bend Radius/Minor Axis: 2.500 in..

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards & Environmental Programs:
• NEC/(UL) Specification: CMP
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: No
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes
• RG Type: 59/U
• Series Type: Series 59

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 75
• Nom. Inductance (μH/ft): 0.09
• Nom. Capacitance Conductor to Shield (pF/ft): 16.3
• Nominal Velocity of Propagation VP (%): 83
• Nominal Delay (ns/ft): 1.24
• Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 44.5
• Nom. Outer Shield DCR @ 20°C (Ohm/1000 ft): 12
• Max.Operating Voltage - UL: 300 V RMS
• Sweep Testing: 5 MHz to 1 GHz

Flame Test:
• CSA Flame Test: FT6

Plenum/Non-Plenum:
• Plenum (Y/N): Yes

Benefits:
• All cables rated to 1 GHz
• Crush resistant dielectric material
• Corrosion resistant center conductor

Features:
• Shield options: dual shield (60% braid), tri-shield (77%), or quad shield (60%/40%)
• Indoor (CM, CMR, CMP), messengered and burial versions
• Meets or exceeds applicable ANSI/SCTE standards for drop coaxial cable
