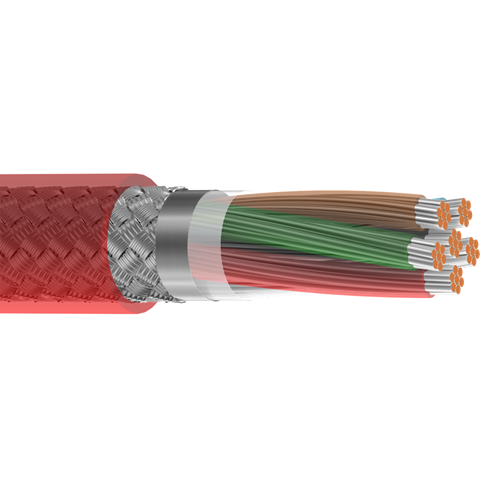

Belden 83556 Cable 22 AWG 6 Conductors Audio Control and Instrumentation Plenum Rated Overall Foil/Shield FEP Jacket Cable

Belden 83556 Cable 22 AWG 6 Conductors Audio Control and Instrumentation Plenum Rated Overall Foil/Shield FEP Jacket Cable

Select gauge from drop-down menu for prices:

Belden 83556 Cable 22 AWG 6 Conductors Audio Control and Instrumentation Plenum Rated Overall Foil/Shield FEP Jacket Cable

Regular price $18.02 $12.53 Sale /per Foot

Belden 83556 Cable 22 AWG 6 Conductors Audio Control and Instrumentation Plenum Rated Overall Foil/Shield FEP Jacket Cable

Description:
• 22 AWG stranded (7x30) TC conductors, conductors cabled, plenum, FEP insulation, overall Beldfoil® (100% coverage) + TC braid shield (85% coverage), FEP jacket.

Insulation:
• Material: FEP - Fluorinated Ethylene Propylene
• Wall Thickness (mm): 0.178

Outer Jacket:
• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Wall Thickness (mm): 0.3556

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -70°C To +200°C
• Bulk Cable Weight: 49.111 Kg/Km
• Max. Recommended Pulling Tension: 257.996 N
• Min. Bend Radius/Minor Axis: 50.800 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMP
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/m): 75.463
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 131.24
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 50.8555
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 14.4364
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 1.9 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: NFPA 262
• CSA Flame Test: FT6

Plenum/Non-Plenum:
• Plenum (Y/N): Yes

technical specification:
awg 22
# conductors 6
stranding 7x30
no. of conductors 6
conductor material tinned copper
outer shield - type tape
outer shield - material aluminum foil-polyester tape
overall cable- nominal dia. (mm) 4.648
belden cable part number 83556
