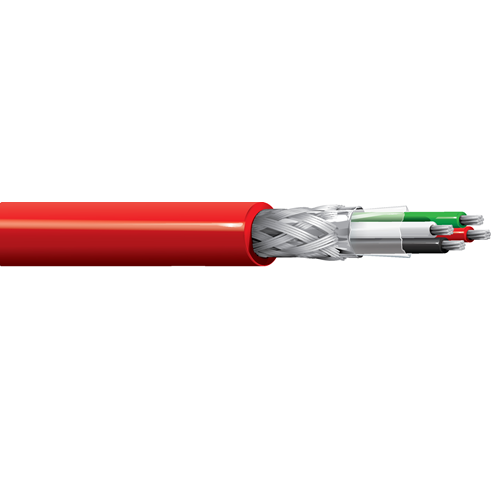

Belden 83554 22 AWG 4 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

High Temperature Electronic, 4 Conductor 22 AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid (85%) Shield, FEP Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.0065 in (0.17 mm)
• Nom. Insulation Diameter: 0.042 in (1.1 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• Overall Beldfoil (100% coverage) + Tinned Copper braid (85% coverage)

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.161 in (4.09 mm)
• Overall Cable Diameter (Nominal): 0.161 in (4.09 mm)

Standards:

• Voltage Rating: 300 V (CMP).
• Operating Temperature: -70°C to +200°C

Applications:

• extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …);
line level audio; voice communications; panel wiring
