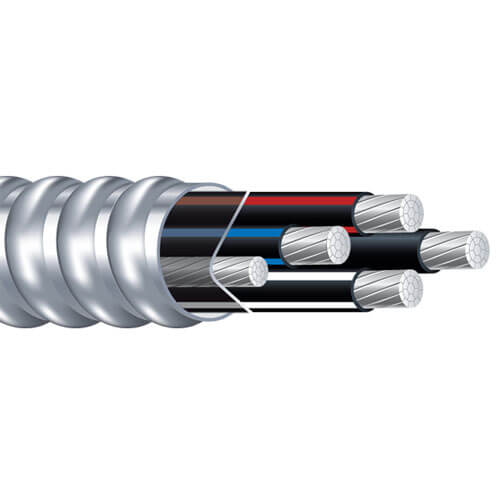

Type MC XHHW Conductor Aluminum Metal Clad Cable

Type MC XHHW Conductor Aluminum Metal Clad Cable

Product Information
Length
Price (Per FT.)
Action
Length
/FT
Price (Per FT.)

$2.36

Action
Length
/FT
Price (Per FT.)

$3.06

Action
Length
/FT
Price (Per FT.)

$3.95

Action
Length
/FT
Price (Per FT.)

$3.92

Action
Length
/FT
Price (Per FT.)

$4.85

Action
Length
/FT
Price (Per FT.)

$4.96

Action
Length
/FT
Price (Per FT.)

$5.16

Action
Length
/FT
Price (Per FT.)

$5.99

Action
Length
/FT
Price (Per FT.)

$6.24

Action
Length
/FT
Price (Per FT.)

$6.69

Action
Length
/FT
Price (Per FT.)

$7.24

Action
Length
/FT
Price (Per FT.)

$6.76

Action
Length
/FT
Price (Per FT.)

$8.89

Action
Length
/FT
Price (Per FT.)

$9.09

Action
Length
/FT
Price (Per FT.)

$11.39

Action
Length
/FT
Price (Per FT.)

$11.19

Action
Length
/FT
Price (Per FT.)

$14.79

Action
Length
/FT
Price (Per FT.)

$15.79

Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)

$20.89

Action
Length
/FT
Price (Per FT.)

$17.79

Action
Length
/FT
Price (Per FT.)

$23.79

Action
Length
/FT
Price (Per FT.)

$19.79

Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)

$24.09

Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action

Overhead power transmission has been fashionable for a while and still seems like the inn thing today. As long as wireless transmission of power remains a dream, people will continue using the traditional power lines to transmit power from one point to another. The other option would be underground cabling but that involves a lot of excavation and other expensive infrastructure. This is where the aluminum Type MC-XHHW Al Conductor comes in handy. This is a common cable is intricately designed to transmit up to 600v safely over long distances. It’s ideal for power transmission in buildings in residential areas.

The cable is meant for above ground power transmissions of high voltage power. The Aluminum Type MC-XHW Al Conductors is preferred in power distribution to copper lines for primary and feeder power systems. This type of cable is majorly used in service systems, in which power is distributed into buildings from the service drop. It can also be used in laying a series of conductors within the building leading from the distribution channel to the load connected to the electrical outlet, as a brunch circuit system. It has an insulation material(MC-XHHW) that facilitates the efficiency of the conductors in regions with severe moisture and rain, as well as dry climates.

Make
Aluminum Type MC-XHHW Al Conductors has XHHW Triple E AA-800 which is a compact stranded aluminum alloyed conductor, which is color-coded per ICEA S-58-679. The aluminum alloy conductors have a thermoset pre-polymer insulator coating, with a binding tape and a bare aluminum grounding wire. The conductors are encased in interlocking aluminum armor which keeps the conductors away from corrosion and high heat.

Features
• The aluminum Type MC-XHHW Al conductors, have a thermoset cross-linked polyethylene (XLPE), which meets the necessities for XHHW-2 per UL 44.
• The fully covered conductors include a ground wire. The strand transmits power while the uncovered bare wire transmits electrostatic charges from an entry point to the ground where they are dislodged. Its core is assembled with a binding tape of synthetic material to give a concentric power cable.
• The Aluminum interlocking has a tape armor that is put over the core.
• The Type XHHW-2 cables are UL listed to provide insulation toughness and chemical resistance.
• The Aluminum Type MC-XHW Al Conductors Aluminum are lead free, in order to maintain their environmental friendliness.
• The presence of NEC 300 provides for environmental air-handling.

Applications
Due to the extreme temperatures coupled with adverse weather conditions in most working environments, the need for a cable with high resilience cannot be overemphasized. It is therefore required to make the right choice when purchasing a power transmission cable. The Aluminum Type MC-XHW Al Conductors, because of its superb features, is preferred and can be used vastly in the following fields; this type of cable is recognized for use in lighting, control and signal circuits as a power feeder.

In case you are looking for a suitable high voltage power supply cable to wire high voltage power of up to 600 volts safely above the ground, you should consider the Aluminum Type MC-XHW Al Conductors.

Phase Conductor Neutral Allowable Ampacity Action
Size (AWG) Size (AWG) 75C 90C
6/3 6 50 60 Add to Cart
2/3 4 90 100 Add to Cart
2/4 4 72 80 Add to Cart
1/3 4 100 115 Add to Cart
1/4 4 80 92 Add to Cart
1/0-3 4 120 135 Add to Cart
1/0-4 4 96 108 Add to Cart
2/0-3 4 135 150 Add to Cart
2/0-4 4 108 120 Add to Cart
3/0-3 4 155 175 Add to Cart
3/0-4 4 124 140 Add to Cart
4.0-3 2 180 205 Add to Cart
4/0-4 2 144 164 Add to Cart
250-3 2 205 230 Add to Cart
250-4 1 164 184 Add to Cart
350-3 1 250 280 Add to Cart
350-4 1/0 200 224 Add to Cart
500-3 1 310 350 Add to Cart
500-3 2/0 310 350 Add to Cart
500-3 3/0 310 350 Add to Cart
500-4 3/0 248 280 Add to Cart
600-3 1/0 340 385 Add to Cart
600-4 3/0 272 308 Add to Cart
750-3 1/0 385 435 Add to Cart
750-3 3/0 385 435 Add to Cart
750-4 30 308 348 Add to Cart
750-4 750 308 348 Add to Cart
