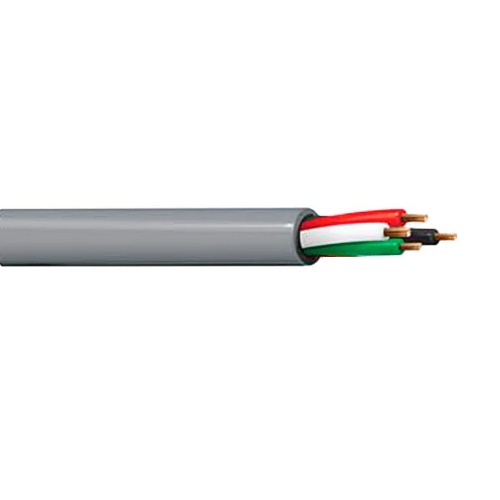

Belden 9794 22 AWG 4 Conductor Solid Bare Copper 300V Electronic Cable

Belden 9794 22 AWG 4 Conductor Solid Bare Copper 300V Electronic Cable

SKU: NES9794   Download PDF

Select a gauge:
  • Belden 9794 22 AWG 4 Conductor Solid Bare Copper 300V Electronic Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.93 /FT   Web pricing policy
BEFORE   Now $1.93 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9794 22 AWG 4 Conductor Solid Bare Copper 300V Electronic Cable

Description:

Electronic, 4 Conductor 22 AWG (Solid) Bare Copper, PO Insulation, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.2 in
• Overall Cable Diameter (Nominal): 0.2 in

Standards:

• Voltage Rating: 300 V.
• Operating Temperature: -30°C To +60°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 9794
