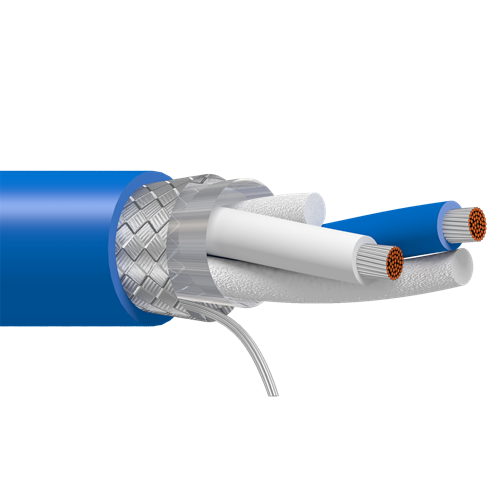

Belden 9463F 20 AWG 1 Pair 42x36 Stranding Tinned Copper 300V Blue Hose Cable

Description:

Blue Hose for Data Highway Plus, 1 Pair 20 AWG (42x36) Tinned Copper, PE Insulation Blue and Clear, Overall Beldfoil+Tinned Copper Braid(85%) Shield, Blue PVC Outer Jacket, High Flex, CM, AWM 2464.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.0185 in (0.470 mm)
• Nom. Insulation Diameter: 0.075 in (1.9 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

•  Overall Beldfoil (aluminum/polyester foil) with 100% coverage, plus a tinned copper braid shield with 85% coverage.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.243 in (6.17 mm)
• Overall Cable Diameter (Nominal): 0.243 in (6.17 mm)

Standards:

• Voltage Rating: 300 V.
• Impedance: 78 Ohms.
• Operating Temperature: -40°C to +80°C.

Applications:

• robotic, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc
