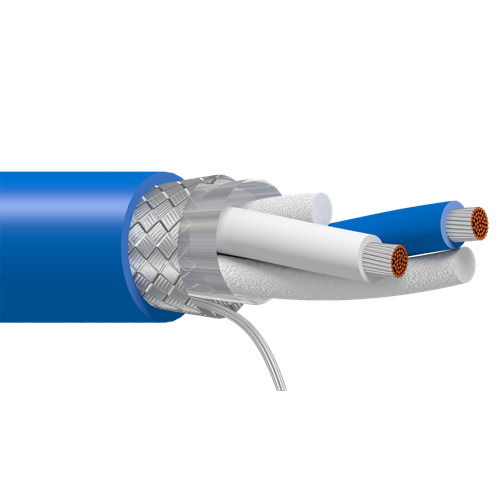

Belden 9463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300 V Blue Hose Cable

Description:

Blue Hose for Data Highway Plus, 1 Pair 20 AWG (7x28) Tinned Copper, PE Insulation Blue and Clear, Overall Beldfoil+Tinned Copper Braid(55%) Shield, Blue PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.0755 in (1.92 mm)

Outer Shield:

• Outer Shield Type Tape, Bi-Laminate (Alum+Poly) Material, Coverage [%] 100%, Drainwire Type 20 AWG (7x28) TC

• Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage [%] 60%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.238 in (6.05 mm)
• Overall Cable Diameter (Nominal): 0.238 in (6.05 mm)
• Outer Jacket1: Jacket OD +/- 0.003

Standards:

• Impedance: 78 Ohm
• Operating Temperature: -40°C to +80°
• Voltage Rating: 300 V RMS (UL AWM Style 2464, NEC Type CM/CL2)

Applications:

• harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC
processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc.
