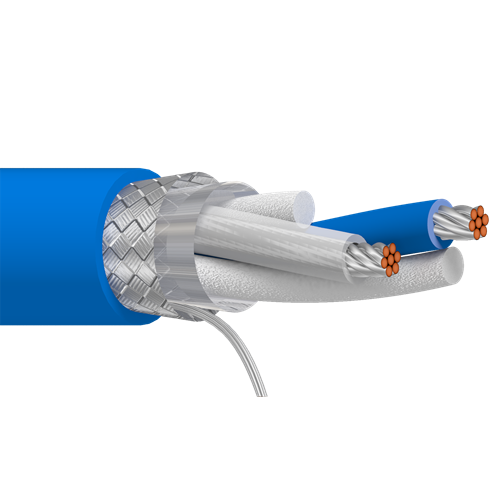

Belden 89463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable

Description:

Blue Hose for Data Highway Plus, 1 Pair 20 AWG (7x28) Tinned Copper, FEP Insulation Blue and Clear, Overall Beldfoil+Tinned Copper Braid(76%) Shield, Blue FEP Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.0175 in (0.445 mm)
• Nom. Insulation Diameter: 0.073 in (1.9 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 76%

• Overall Beldfoil (100% coverage) plus a tinned copper braid shield (76% coverage).

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.203 in (5.16 mm)
• Overall Cable Diameter (Nominal): 0.203 in (5.16 mm)

Standards:

• Impedance: 78 Ohms
• Voltage Rating: 300 V.
• Temperature  Rating: Operating range from -70°C to +200°C (-94°F to +392°F)

Applications:

• extreme temp, exposure to oil and gasoline, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc.
