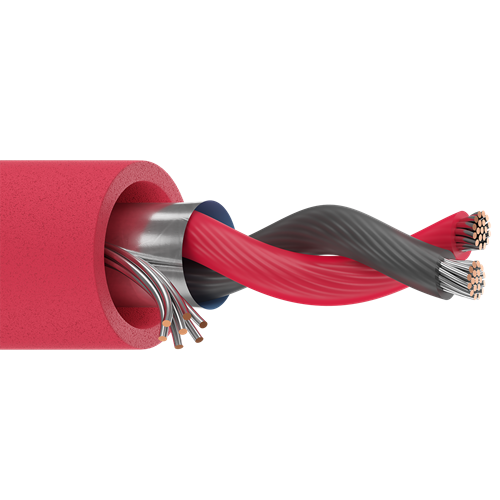

Belden 88760 18 AWG 2 Conductor 19x30 Stranding Tinned Copper Electronic Cable

Description:

High Temperature Electronic, 2 Conductor 18 AWG (19x30) Tinned Copper, FEP Insulation, Overall Beldfoil Shield, FEP Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.057 in (1.4 mm)

Outer Shield:

• Outer Shield: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.148 in (3.76 mm)
• Overall Cable Diameter (Nominal): 0.148 in (3.76 mm)

Standards:

• Voltage Rating: 300 V RMS
• Operating Temp: -70°C to +200°C

Applications:

• extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; wet locations; panel wiring
