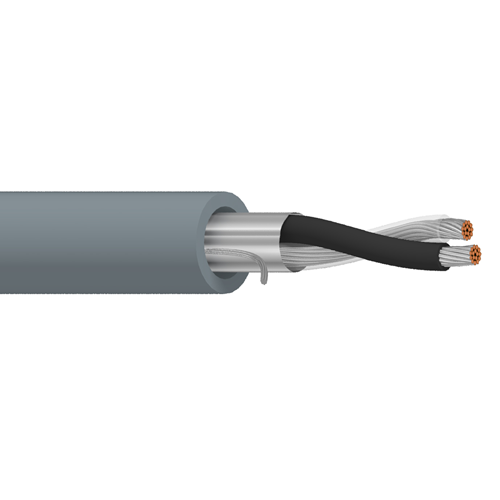

Belden 8760 18 AWG 2 Conductor 16x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 2 Conductor 18 AWG (16x30) Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.082 in (2.1 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC
• Overall Beldfoil (aluminum foil-polyester tape) shield with 100% coverage and a 20 AWG stranded tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.028 in (0.71 mm)
• Nom. Diameter: 0.222 in (5.64 mm)
• Overall Cable Diameter (Nominal): 0.222 in (5.64 mm)

Standards:

• Voltage Rating: 300 V.
• Capacitance: Around 27.2 pF/ft (conductor to conductor).
• Temperature Rating: Operating range of -20°C to +60°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
