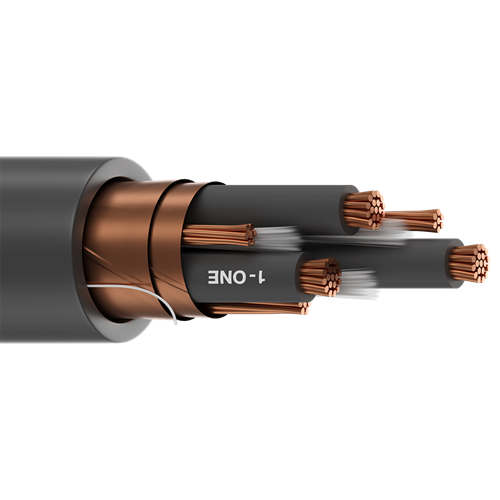

Classic Symmetrical Designs Features:
• Available with high-strand conductors in large AWG sizes
• Design features a copper tape shield with segmented ground
• Smaller OD than the Classic Designs with Foil/Braid
• Optimum shielding design (300%/100% copper at ground potential)
• Heavy industrial-grade XLPE insulation
• Finely stranded tinned or bare copper conductors
Technical Data:
• Type: Premium 100% ground three conductor
• Shielding: Dual Copper Tape
• Grounding: Bare 3x Segmented
• Insulation: XLPE (RHHW-2 Thickness)
• Conductor: Stranded Bare Copper
• Rating: 600V UL TC-ER
• 1000V CSA AWM I/II A/B FT4
• IEEE 1202
• UL Direct Burial
• XHHW-2, RHW-2 rated circuit conductors
• 90°C Wet/Dry
• Suitable for Class I, II & III, Division 2 hazardous locations
• UL 1685 Vertical Tray Flame Test
• RoHS compliant
• CE approved
Benefits:
• Superior protection against electrical noise
• Increased stability in electrical performance
• Improved system uptime in harsh environments
| technical specification | |
| awg | 2/0 |
| cond. stranding | 19 x 12 |
| standard lengths ft. | 1000 |
| standard lengths m | 304.8 |
| standard unit Wt. lbs. | 1885.0 |
| standard unit Wt. kg | 855.0 |
| nominal od inch | 1.31 |
| nominal od mm | 33.25 |
| maximum pull tension lbs. | 4200 |
| maximum pull tension n | 18682 |
| minimum bend radius inch | 13.3 |
| minimum bend radius mm | 336.6 |
| belden cable part number | 29530C |
