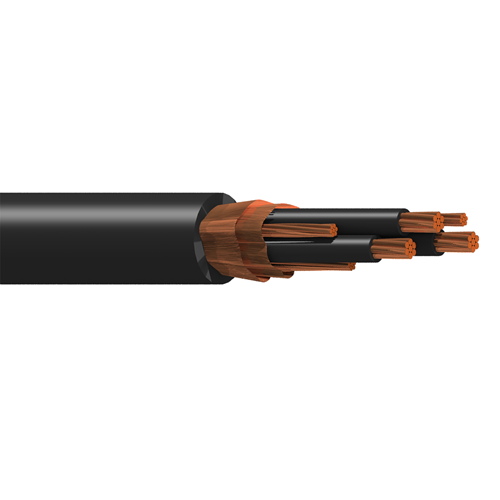

Belden 29525C 6 AWG 3 Conductor 7x14 Stranding 600V Variable Frequency Drives Cable

Description:

Belden Basics VFD, 3 Conductor 6AWG (7x14) Bare Copper XLPE Insulation M4 Color Code + 6AWG Symmetrical Segmented Ground (3 of 12AWG) Bare Copper Stranded in Continuous Contact with Overall Dual Copper Tape Helically Applied Shield, Black PVC Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V CSA AWM I/II A/B SUN RES DIR BUR Oil Resistant.

Insulation:

Element: Conductor(s):-
Material: XLPO - Crosslink Polyolefin
Nom. Thickness: 0.047 in (1.2 mm)
Nom. Insulation Diameter: 0.272 in (6.91 mm)

Outer Shield:

• Shield Type: Helical Tape
• Material: Bare Copper (BC)
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.724 in (18.4 mm)
• Overall Cable Diameter (Nominal): 0.724 in (18.4 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems;Class 1 Division 2 Locations
