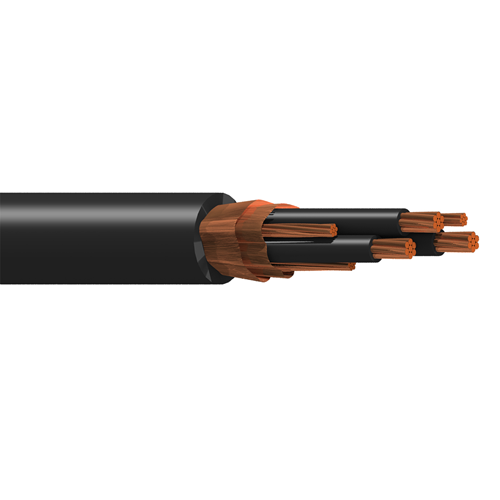

Belden 29524C Cable 8 AWG 3 Conductors Basics Symmetrical Design Dual Copper Tape VFD Cable

Belden 29524C Cable 8 AWG 3 Conductors Basics Symmetrical Design Dual Copper Tape VFD Cable

Regular price $7.88 $5.25 Sale /per Foot

Belden Cable 8 AWG 3 Conductors Basics Symmetrical Design Dual Copper Tape VFD Cable 29524C

Classic Symmetrical Designs Features:
• Available with high-strand conductors in large AWG sizes
• Design features a copper tape shield with segmented ground
• Smaller OD than the Classic Designs with Foil/Braid
• Optimum shielding design (300%/100% copper at ground potential)
• Heavy industrial-grade XLPE insulation
• Finely stranded tinned or bare copper conductors

Technical Data:
• Type: Premium 100% ground three conductor
• Shielding: Dual Copper Tape
• Grounding: Bare 3x Segmented
• Insulation: XLPE (RHHW-2 Thickness)
• Conductor: Stranded Bare Copper
• Rating: 600V UL TC-ER
• 1000V CSA AWM I/II A/B FT4
• IEEE 1202
• UL Direct Burial
• XHHW-2, RHW-2 rated circuit conductors
• 90°C Wet/Dry
• Suitable for Class I, II & III, Division 2 hazardous locations
• UL 1685 Vertical Tray Flame Test
• RoHS compliant
• CE approved

Benefits:
• Superior protection against electrical noise
• Increased stability in electrical performance
• Improved system uptime in harsh environments

technical specification
awg 8
cond. stranding 7 x 16
standard lengths ft. 1000
standard lengths m 304.8
standard unit Wt. lbs. 425.0
standard unit Wt. kg 192.8
nominal od inch 0.65
nominal od mm 16.41
maximum pull tension lbs. 576
maximum pull tension n 2562
minimum bend radius inch 6.5
minimum bend radius mm 165.1
belden cable part number 29524C
